STARTER MOTOR/STARTER CLUTCH ('8

KZ440B1 1980 USA / MPH

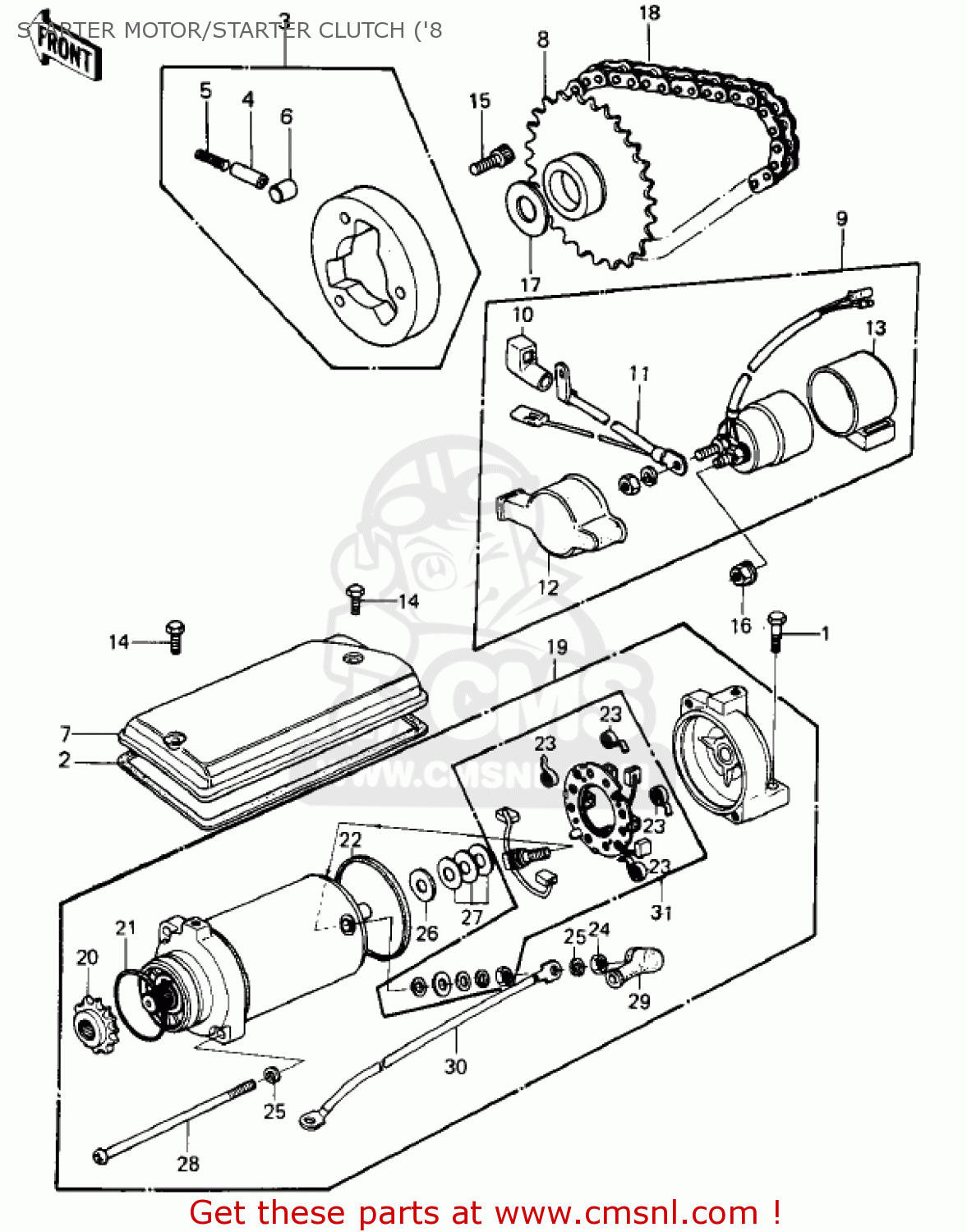

Starter motor/starter clutch ('8 diagram KZ440B1 1980 USA / MPH

STARTER MOTOR/STARTER CLUTCH ('8 KZ440B1 1980 USA / MPH

STARTER MOTOR/STARTER CLUTCH ('8 KZ440B1 1980 USA / MPH

prices are in EUR

ref

part #

description

quantity

1

112G0625
ref: 1

BOLT-UPSET,6X25

€ 4.00

2

110091006
ref: 2

GASKET,STARTER COVER (NAS)

€ 8.00

3

131931001
ref: 3

CLUTCH-ASSY-ONEWAY

€ 141.50

4

92043087
ref: 4

PIN

€ 8.00

5

92081110
ref: 5

SPRING

€ 3.00

6

92122004
ref: 6

ROLLER,15X13

€ 7.00

7

140251284
ref: 7

COVER,STARTER

€ 16.00

8

120461030
ref: 8

SPROCKET,ONWAY CLUTCH

€ 99.00

9

270101014
ref: 9

SWITCH MAGNETIC

€ 96.50

10

21017021
ref: 10

CAP,MAG SWITCH TEMNL

€ 8.50

11

260111027
ref: 11

WIRE,LEAD,MAG SWITCH

€ 25.00

12

21141004
ref: 12

COVER,MAG SWITCH

€ 8.50

13

21064002
ref: 13

DAMPER,MAGNETIC SWITC

€ 13.50

14

920011151
ref: 14

BOLT,6X10

€ 3.00

15

120P0816
ref: 15

BOLT-SOCKET

€ 2.50

16

92017014
ref: 16

NUT,LOCK,6MM

€ 4.00

17

920261004
ref: 17

SPACER,25X40X1

€ 4.50

18

920571009
ref: 18

CHAIN,DYNAMO

€ 12.50

19

211631011
ref: 19

MOTOR ASSY,STARTER

€ 595.00

20

21053002
ref: 20

SPROCKET,STARTNG MOT

€ 24.50

21

21027005
ref: 21

'O' RING,42.8MM

€ 5.50

22

920551086
ref: 22

O RING,64MM

€ 6.50

23

210401002
ref: 23

SPRING-BRUSH

€ 5.50

24

312B0600
ref: 24

NUT,6MM

€ 0.50

25

461F0600
ref: 25

WASHER-SPRING,6MM

€ 0.50

26

920221132
ref: 26

WASHER,9.1X18X0.8

€ 4.00

27

21025011
ref: 27

WASHER, THRUST, 0.2T

€ 4.00

28

920091097
ref: 28

SCREW,PAN HEAD,6X119

€ 9.50

29

21017020
ref: 29

CAP,STARTING MOTOR

€ 6.00

30

26010035
ref: 30

WIRE,STARTER LEAD

€ 33.50

31

210391005
ref: 31

BRUSH,CARBON

€ 112.50
