CRANKCASE ('81 B2)
KZ440B1 1980 USA / MPH

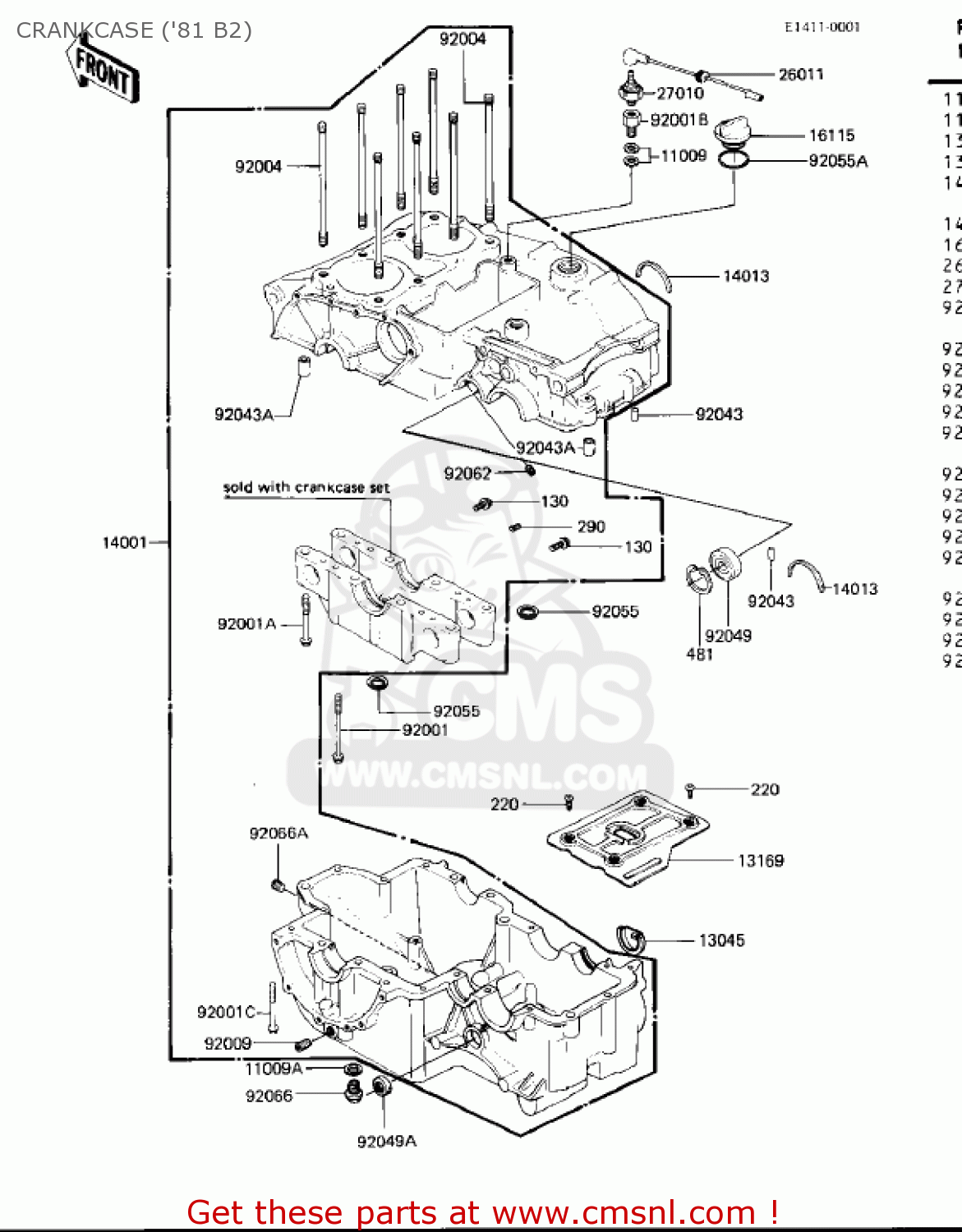

Crankcase ('81 b2) diagram KZ440B1 1980 USA / MPH
CRANKCASE ('81 B2) KZ440B1 1980 USA / MPH
×
prices are in EUR
ref
part #
description
quantity
11009
110091105
ref: 11009
GASKET,10X14.5X1.5 (NAS)
€ 4.00
11009A
92065097
ref: 11009A
GASKET,DRAIN PLUG BOL (NAS)
€ 1.00
13045
130451001
ref: 13045
RECEIVER-OIL
€ 10.00
13169
131691103
ref: 13169
PLATE,CRANKCASE
€ 6.00
14001
140015087
ref: 14001
SET-CRANKCASE
€ 859.50
14013
14013004
ref: 14013
RING-BEARING SETTING
€ 7.00
16115
16115013
ref: 16115
PLUG-OIL FILLER
€ 13.50
26011
260111078
ref: 26011
WIRE-LEAD,OIL SWITCH
€ 12.50
27010
270101157
ref: 27010
SWITCH,OIL PRESSURE
€ 27.50
92001
920011004
ref: 92001
BOLT,FLANGED,10X91
€ 6.50
92001A
920011005
ref: 92001A
BOLT,FLANGED,8X58
€ 5.00
92001B
920011020
ref: 92001B
BOLT,OIL,SWITCH
€ 8.00
92001C
92003110
ref: 92001C
BOLT-HEX HEAD,6X54
€ 1.50
92004
92004062
ref: 92004
STUD, 10X153
€ 13.50
92009
92013010
ref: 92009
SET,SCREW
€ 4.50
92043
92042016
ref: 92043
PIN,DOWEL,6X16
€ 3.50
92043A
920431037
ref: 92043A
PIN,DOWEL,10X8.2X14
€ 0.50
92049
920491041
ref: 92049
OIL SEAL,PUSH ROD
€ 13.00
92049A
92051005A
ref: 92049A
OIL SEAL,TB13225.5
€ 5.50
92055
92055048
ref: 92055
RING-O,OD=18
€ 3.00
92055A
92055049
ref: 92055A
'0'RING,31MM
€ 2.50
92062
92062011
ref: 92062
NOZZLE,OIL
€ 5.50
92066
920661174
ref: 92066
PLUG,OIL DRAIN,12X15
€ 4.00
92066A
92066059
ref: 92066A
PLUG,PT1/8X7
€ 3.00
130
130P0608
ref: 130
BOLT,FLANGED,6X8
€ 1.00
220
220B0612
ref: 220
SCREW-PAN HEAD,6X12
€ 1.00
290
290Q0606
ref: 290
SCREW,6X6
€ 3.00
481
481J3600
ref: 481
CIRCLIP-TYPE-C,36MM
€ 2.50
