IGNITION SWITCH/LOCKS/REFLECTORS

KZ250L1 CSR 1982 USA BELT DRIVE

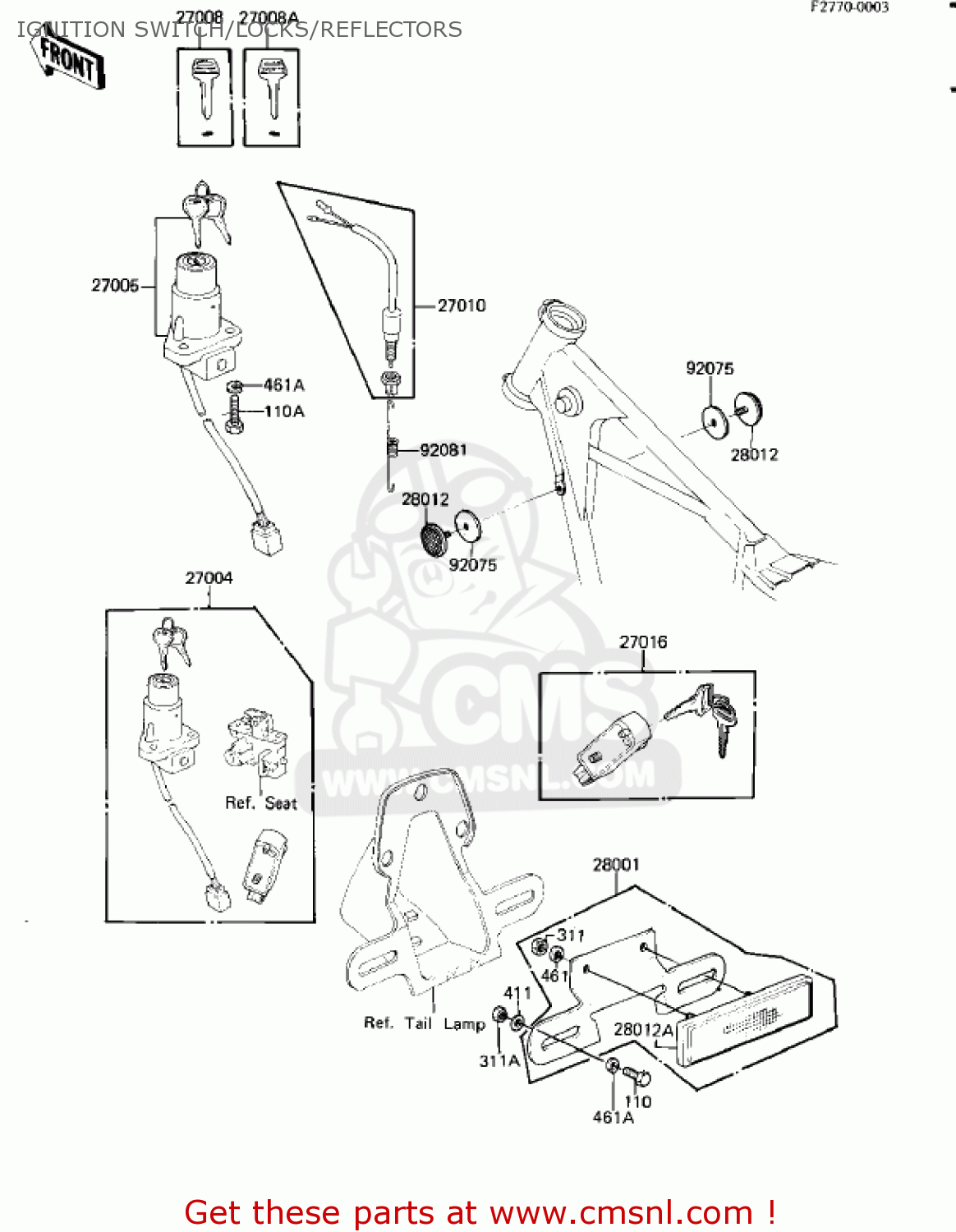

Ignition switch/locks/reflectors diagram KZ250L1 CSR 1982 USA BELT DRIVE

prices are in EUR

ref

part #

description

quantity

27004

270045111
ref: 27004

SWITCH ASSY

€ 98.50

27005

270051031
ref: 27005

SWITCH ASSY,IGNITION

€ 178.00

27008

270081034
ref: 27008
(OPTION)

KEY,BLANK

€ 13.00

27008A

270081035
ref: 27008A
(OPTION)

KEY,BLANK

€ 12.50

27010

27010025
ref: 27010

SWITCH,BRAKE LAMP

€ 18.50

27016

270165029
ref: 27016

LOCK ASSY,HELMET

€ 73.50

28001

280011012
ref: 28001

REFLECTOR-ASSY-REFLEX

€ 38.50

28012

28012016
ref: 28012

REFLECTOR REFLEX

€ 16.00

28012A

280121005
ref: 28012A

REFLECTOR-REFLEX,RR

€ 16.50

92075

92094011
ref: 92075

DAMPER,REFLECTOR

€ 3.00

92081

27011017
ref: 92081

SPRING,BRK LIGHT SW

€ 6.50

110

112G0612
ref: 110

BOLT-UPSET

€ 2.50

110A

112G0616
ref: 110A

BOLT UPSET,6X16

€ 1.00

311

311B0500
ref: 311

NUT-HEX

€ 0.50

311A

311B0600
ref: 311A

NUT,6MM

€ 0.50

411

411B0600
ref: 411

WASHER-PLAIN,6MM

€ 0.50

461

461F0500
ref: 461

WASHER-SPRING,5MM

€ 0.50

461A

461F0600
ref: 461A

WASHER-SPRING,6MM

€ 0.50
