FRAME FITTINGS

KZ250L1 CSR 1982 USA BELT DRIVE

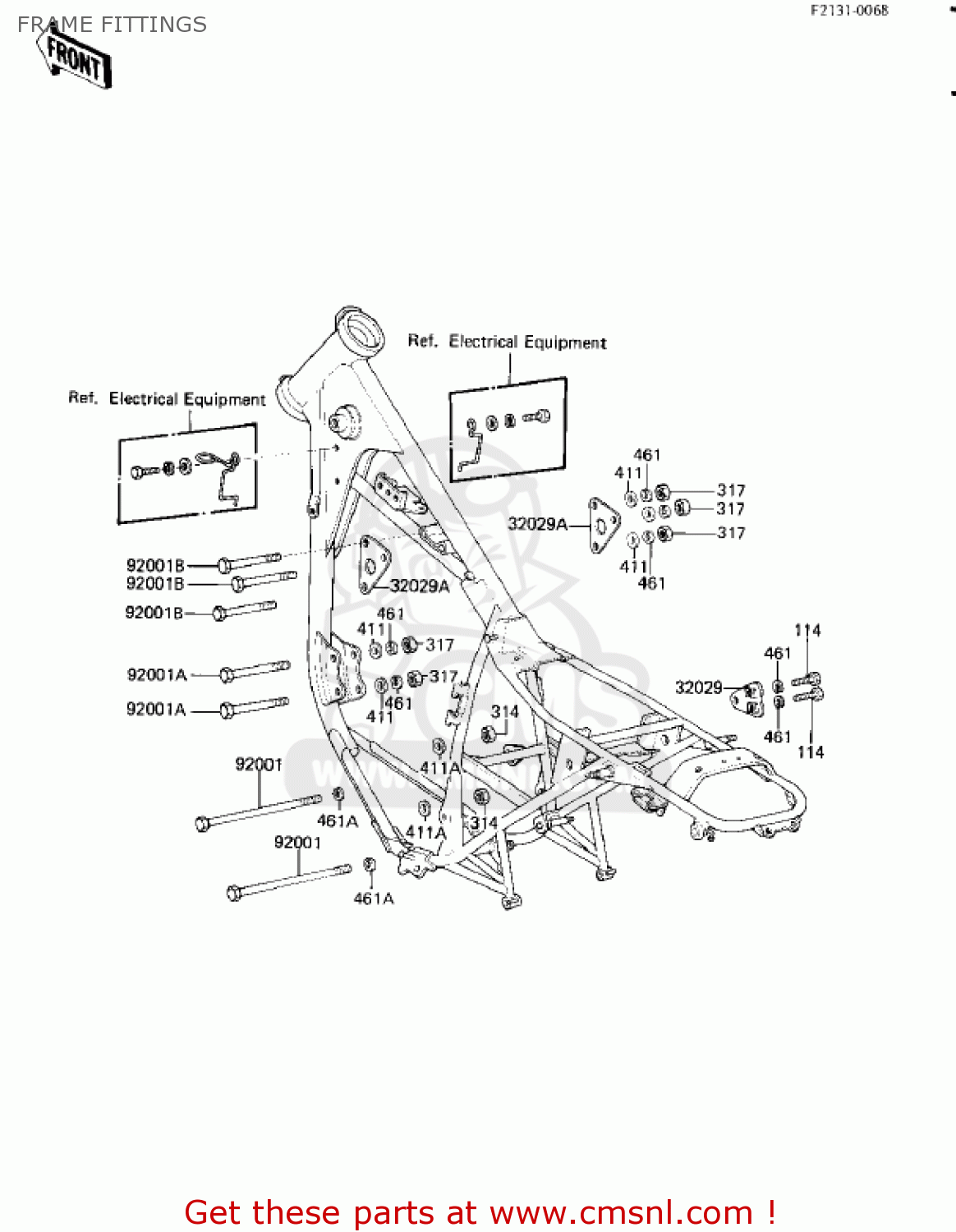

Frame fittings diagram KZ250L1 CSR 1982 USA BELT DRIVE

prices are in EUR

ref

part #

description

quantity

32029

320291008
ref: 32029

BRACKET-ENGINE

€ 7.00

32029A

32030069
ref: 32029A

BRACKET-ENGINE,HEAD

€ 14.00

92001

920011603
ref: 92001

BOLT,FLANGED,10X115

€ 7.00

92001A

920011583
ref: 92001A

BOLT,FLANGED,8X70

€ 6.00

92001B

920011397
ref: 92001B

BOLT,8X63

€ 1.50

114

115G0816
ref: 114

BOLT-HEX,HEAD 8X16

€ 0.50

314

314B1000
ref: 314

NUT,10MM

€ 0.50

317

317B0800
ref: 317

NUT,8M/M

€ 0.50

411

411B0800
ref: 411

WASHER-PLAIN,8MM

€ 0.50

411A

411B1000
ref: 411A

WASHER-PLAIN,10MM

€ 0.50

461

461F0800
ref: 461

WASHER-SPRING,8MM

€ 0.50

461A

461F1000
ref: 461A

WASHER-SPRING,10MM

€ 0.50
