FRONT FORK
KZ250L1 CSR 1982 USA BELT DRIVE

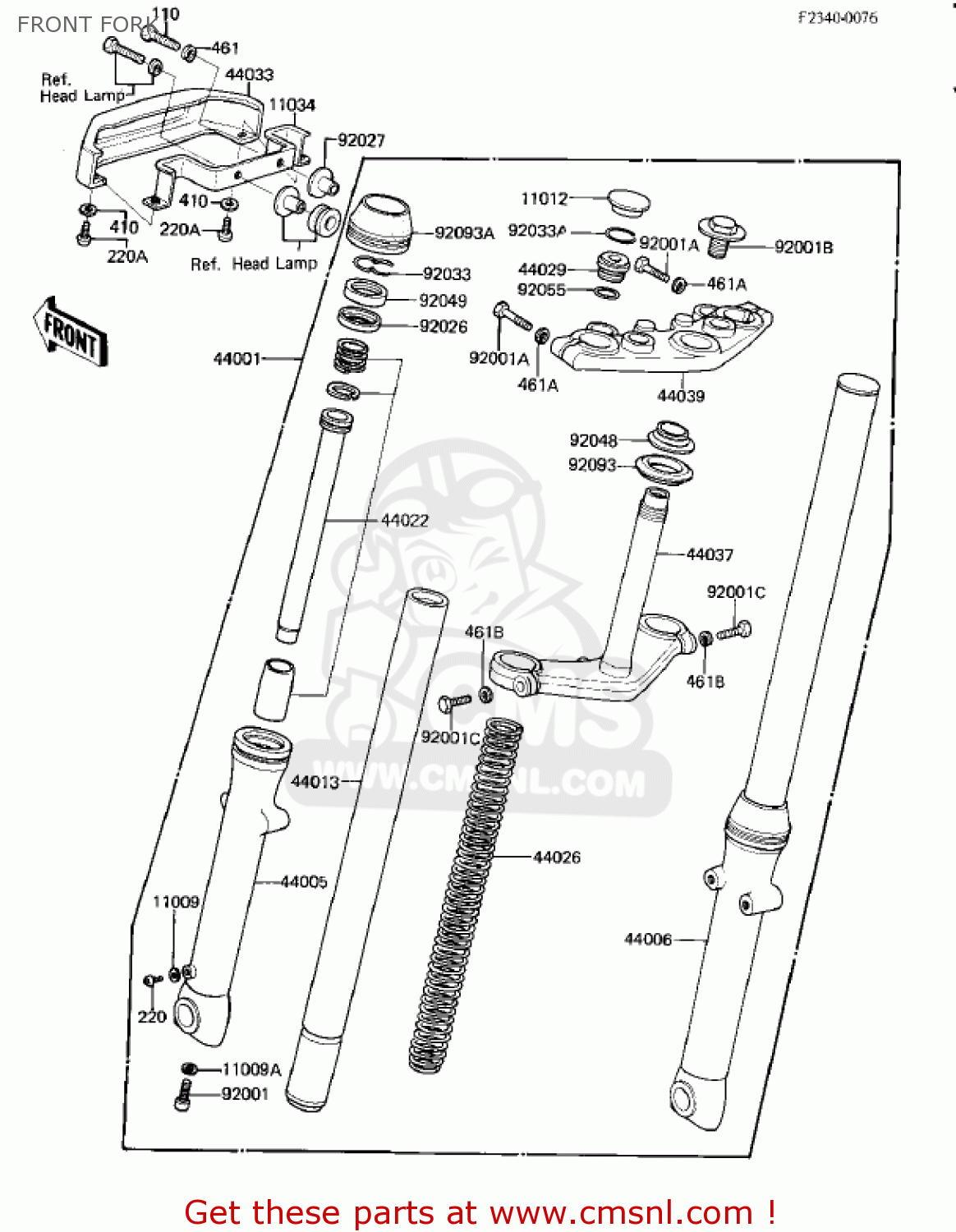

Front fork diagram KZ250L1 CSR 1982 USA BELT DRIVE
FRONT FORK KZ250L1 CSR 1982 USA BELT DRIVE
×
prices are in EUR
ref
part #
description
quantity
11009
44045046
ref: 11009
GASKET,FORK DRAIN PLU (NAS)
€ 4.50
11009A
44045051
ref: 11009A
GASKET,FORK CYLINDER (NAS)
€ 4.00
11012
110121124
ref: 11012
CAP,FORK
€ 6.00
11034
110341698
ref: 11034
BRACKET,FORK COVER
€ 8.00
44001
440011300
ref: 44001
FRONT FORK
€ 640.00
44005
440051047
ref: 44005
FORK OUTER TUBE,LH
€ 103.00
44006
440061047
ref: 44006
TUBE,R.H FORK OUTER
€ 109.00
44013
440131074
ref: 44013
PIPE-FORK INNER
€ 120.50
44022
440221040
ref: 44022
CYLINDER-FORK
€ 21.50
44026
440261054
ref: 44026
SPRING,FORK
€ 26.50
44029
44029022
ref: 44029
GUIDE, FORK SPRING
€ 8.00
44033
440331062
ref: 44033
COVER-FORK
€ 20.00
44037
440371036
ref: 44037
STEM,STEERING
€ 208.00
44039
44039078
ref: 44039
HOLDER-FORK UPPER
€ 250.50
92001
44041078
ref: 92001
BOLT, FORK CYLINDER
€ 6.50
92001A
920011063
ref: 92001A
BOLT,HEX HEAD,8X40
€ 6.50
92001B
920011741
ref: 92001B
BOLT,STEERING STEM HD
€ 6.50
92001C
920011252
ref: 92001C
BOLT,HEX HEAD,10X35
€ 3.50
92026
920261099
ref: 92026
SPACER,FORK OUTER
€ 7.00
92027
92027251
ref: 92027
COLLAR,L=13.1
€ 1.00
92033
44044020
ref: 92033
CIRCLIP,45MM
€ 9.50
92033A
44044023
ref: 92033A
CIRCLIP
€ 3.50
92048
92047010
ref: 92048
CONE-STERNG BERG LOW
€ 10.00
92049
920491080
ref: 92049
SEAL-OIL FORK OUTER
€ 14.00
92055
44046025
ref: 92055
'O' RING, FORK
€ 4.00
92093
44010027
ref: 92093
SEAL,STEERING STEM
€ 7.50
92093A
920931066
ref: 92093A
SEAL,FORK OUTER
€ 12.50
110
112G0625
ref: 110
BOLT-UPSET,6X25
€ 4.00
220
220B0406
ref: 220
SCREW-PAN-CROS,4X6
€ 2.50
220A
220B0410
ref: 220A
SCREW-PAN-CROS
€ 2.00
410
410B0400
ref: 410
WASHER-PLAIN-SMALL,4M
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
461A
461F0800
ref: 461A
WASHER-SPRING,8MM
€ 0.50
461B
461F1000
ref: 461B
WASHER-SPRING,10MM
€ 0.50
