FRAME

KZ250L1 CSR 1982 USA BELT DRIVE

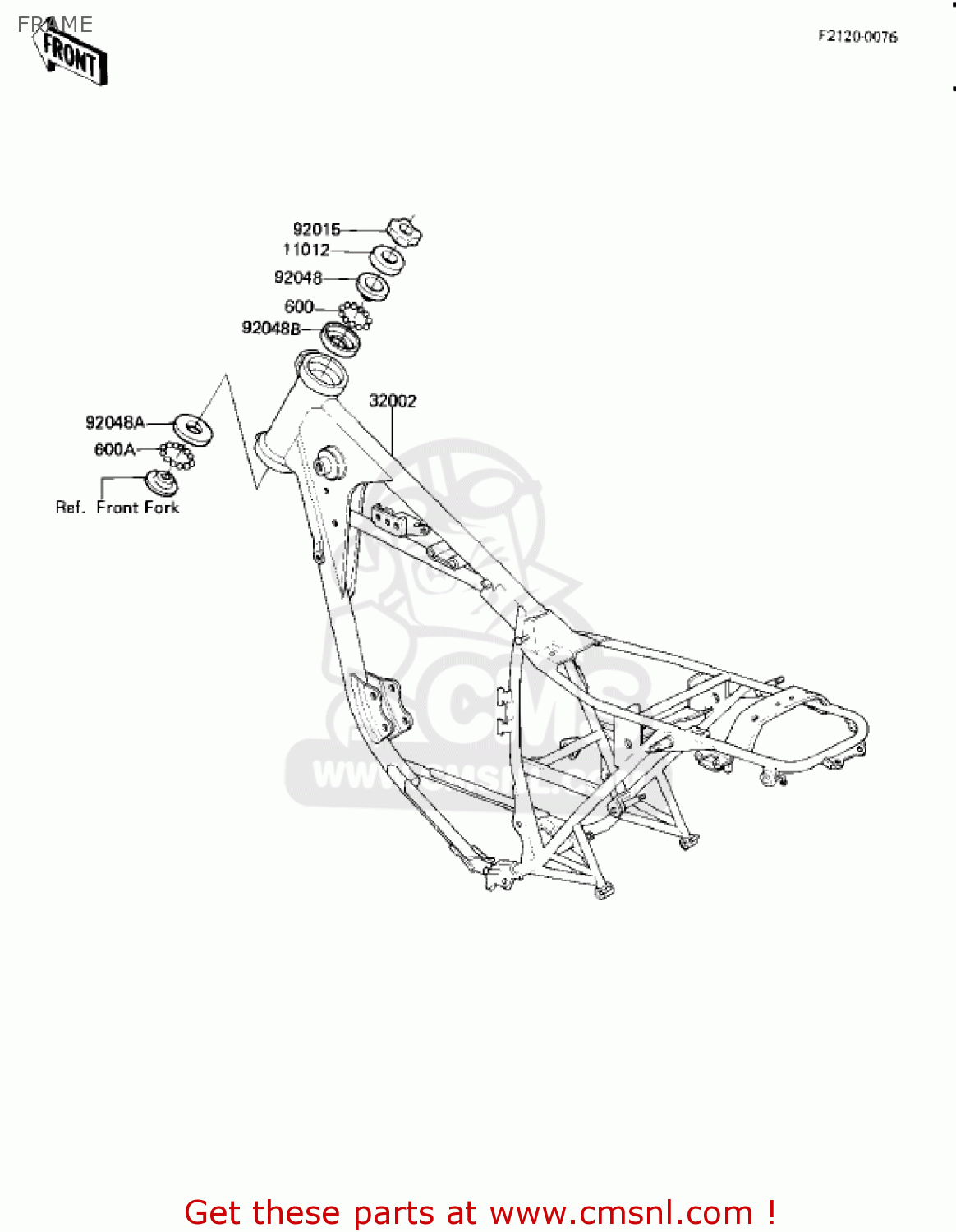

Frame diagram KZ250L1 CSR 1982 USA BELT DRIVE

FRAME KZ250L1 CSR 1982 USA BELT DRIVE

FRAME KZ250L1 CSR 1982 USA BELT DRIVE

prices are in EUR

ref

part #

description

quantity

11012

46098012
ref: 11012

CAP,STEERING STEM

€ 4.50

32002

320021310
ref: 32002

FRAME-COMP GEN

€ 790.00

92015

92090022
ref: 92015

NUT,STEERING LOCK,25M

€ 18.50

92048

92047014
ref: 92048

RACE,STEERING STEM BE

€ 12.50

92048A

92048005
ref: 92048A

RACE-STEERING BEARING

€ 11.50

92048B

92048009
ref: 92048B

RACE,STRG STM

€ 14.00

600

600A0600
ref: 600

BALL-STEEL,3/16

€ 0.50

600A

600A0800
ref: 600A

BALL-STEEL,1/4

€ 0.50
