HEADLIGHT
KZ250L1 CSR 1982 USA BELT DRIVE

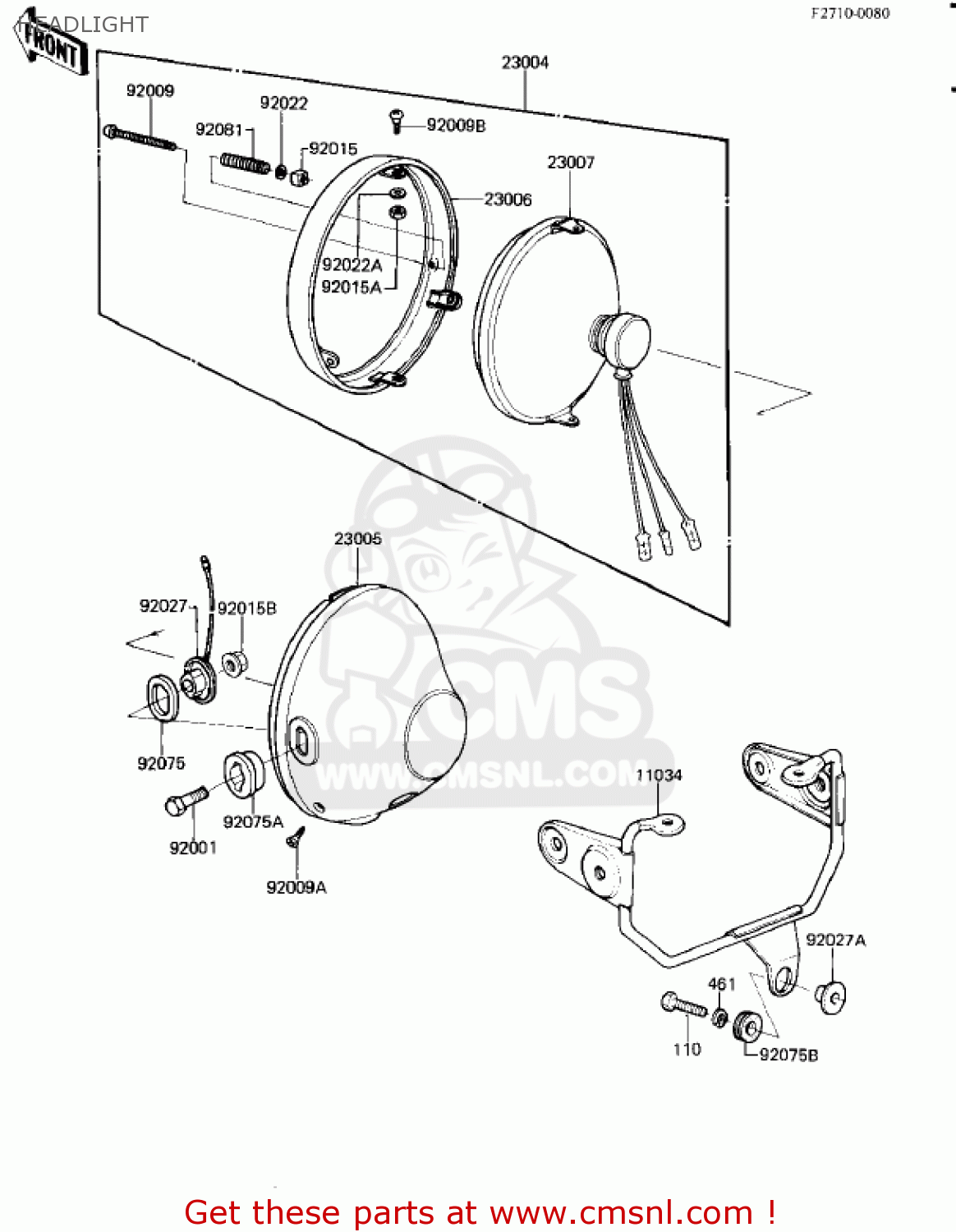

Headlight diagram KZ250L1 CSR 1982 USA BELT DRIVE
HEADLIGHT KZ250L1 CSR 1982 USA BELT DRIVE
×
prices are in EUR
ref
part #
description
quantity
11034
110341691
ref: 11034
BRACKET,HEAD LAMP
€ 111.50
23004
23003025
ref: 23004
HEADLAMP,UNIT
€ 334.50
23005
230051013
ref: 23005
BODY,HEAD LAMP
€ 84.00
23006
23006034
ref: 23006
HEADLAMP RIM
€ 174.00
23007
23007043
ref: 23007
SEALED BEAM UNIT
€ 244.50
92001
92007041
ref: 92001
BOLT,HEX HEAD,10X30
€ 7.00
92009
23019021
ref: 92009
SCREW-FORCUS ADJUST
€ 3.00
92009A
23019022
ref: 92009A
SCREW-SPECIAL,5X14
€ 1.50
92009B
23019023
ref: 92009B
SCREW-PAN HEAD,5X12
€ 3.50
92015
23020018
ref: 92015
NUT,4MM,FOCUS ADJUST
€ 3.00
92015A
23020023
ref: 92015A
NUT,5MM
€ 3.00
92015B
920151428
ref: 92015B
NUT,FLANGED,10MM
€ 3.00
92022
23021004
ref: 92022
WASHER,4.1X8X0.8
€ 2.00
92022A
23021012
ref: 92022A
WASHER
€ 3.00
92027
23076005
ref: 92027
COLLAR
€ 31.00
92027A
92027251
ref: 92027A
COLLAR,L=13.1
€ 1.00
92075
23066001
ref: 92075
DAMPER
€ 8.00
92075A
23066005
ref: 92075A
DAMPER RUBBER
€ 1.00
92075B
92075209
ref: 92075B
DAMPER RUBBER
€ 3.00
92081
23014005
ref: 92081
SPRING-FOCUS ADJUST
€ 2.50
110
112G0625
ref: 110
BOLT-UPSET,6X25
€ 4.00
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
