OIL PAN/OIL FILTER (E/NO. 016038
KZ1300A1 1979 USA CANADA

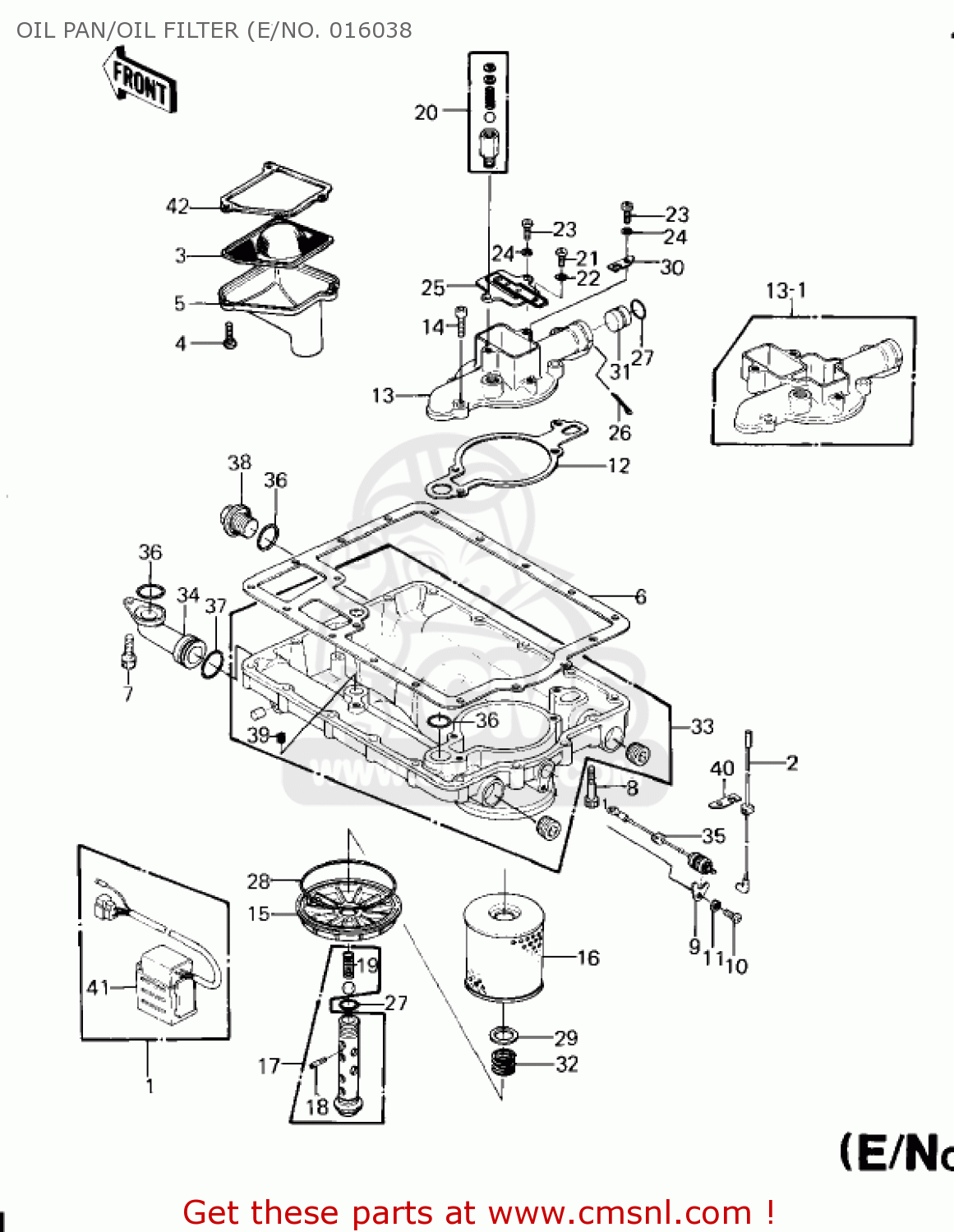

Oil pan/oil filter (e/no. 016038 diagram KZ1300A1 1979 USA CANADA
OIL PAN/OIL FILTER (E/NO. 016038 KZ1300A1 1979 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
250251003
ref: 1
E/NO.010638-012373
WARNER,OIL LEVEL
€ 238.00
1
250251003
ref: 1
KZ1300-A3
WARNER,OIL LEVEL
€ 238.00
2
260111085
ref: 2
WIRE,LEAD
€ 4.50
3
140431008
ref: 3
FILTER,OIL
€ 17.50
4
220B0620
ref: 4
SCREW-PAN HEAD,6X20
€ 2.50
5
320991017
ref: 5
CASE,OIL FILTER
€ 24.00
6
110091093
ref: 6
GASKET,OIL PAN (MCA)
€ 22.50
7
120P0620
ref: 7
BOLT-HEX HEAD,6X20
€ 0.50
8
120P0635
ref: 8
BOLT,SOCKET,6X35
€ 1.50
9
130911080
ref: 9
HOLDER,CONNECTOR
€ 3.50
10
220B0614
ref: 10
SCREW-PAN HEAD,6X14
€ 2.00
11
461F0600
ref: 11
WASHER-SPRING,6MM
€ 0.50
12
110091198
ref: 12
GASKET,OIL FILTER (MCA)
€ 7.00
13
140755011
ref: 13
E/NO.010638~011587
CAP ASSY
€ 108.50
13-1
110121148
ref: 13-1
E/NO.011588~
CAP,OIL FILTER
€ 40.50
14
120P0635
ref: 14
BOLT,SOCKET,6X35
€ 1.50
15
140251170
ref: 15
COVER,OIL FILTER
€ 35.00
16
16099002
ref: 16
ELEMENT-OIL FILTER
€ 13.00
17
161261006
ref: 17
BOLT ASSY,OIL FILTER
€ 39.00
18
92043111
ref: 18
SPRING PIN
€ 4.00
19
92081133
ref: 19
SPRING,PISTON
€ 5.50
20
161301001
ref: 20
VALVE-ASSY-RELIEF
€ 28.50
21
220B0406
ref: 21
SCREW-PAN-CROS,4X6
€ 2.50
22
461F0400
ref: 22
WASHER-SPRING,4MM
€ 0.50
23
220B0614
ref: 23
SCREW-PAN HEAD,6X14
€ 2.00
24
461F0600
ref: 24
WASHER-SPRING,6MM
€ 0.50
25
270101038
ref: 25
SWITCH,OIL LEVEL
€ 96.50
26
550D2040
ref: 26
PIN,COTTER,2.0X40
€ 1.50
27
670B2016
ref: 27
O RING,16MM
€ 1.00
28
671B2595
ref: 28
O RING,95MM
€ 4.50
29
920221012
ref: 29
WASHER,20.5X30X1
€ 3.00
30
920371211
ref: 30
CLAMP,LEAD WIRE
€ 2.50
31
920661023
ref: 31
PLUG,OIL GALLARY,16X3
€ 3.50
32
920811018
ref: 32
SPRING,OIL FILTER
€ 3.00
33
490345005
ref: 33
PAN-OIL
€ 210.00
34
520141002
ref: 34
ELBOW,OIL PASSAGE
€ 31.50
35
140755011
ref: 35
E/NO.010638~012373
CAP ASSY
€ 108.50
35
592211002
ref: 35
E/NO.011588
CONNECTOR,OIL SW CORD
€ 65.50
36
670B2022
ref: 36
O RING,22MM
€ 3.00
37
671B2525
ref: 37
O RING,25MM
€ 3.00
38
920011183
ref: 38
BOLT,OIL DRAIN
€ 37.50
39
92062011
ref: 39
NOZZLE,OIL
€ 5.50
40
920371211
ref: 40
CLAMP,LEAD WIRE
€ 2.50
41
21064003
ref: 41
DAMPER,LIMITER
€ 19.00
42
110091193
ref: 42
E/NO.008759~010637
GASKET,OIL FILTER (MCA)
€ 3.00
