CRANKCASE
KZ1300A1 1979 USA CANADA

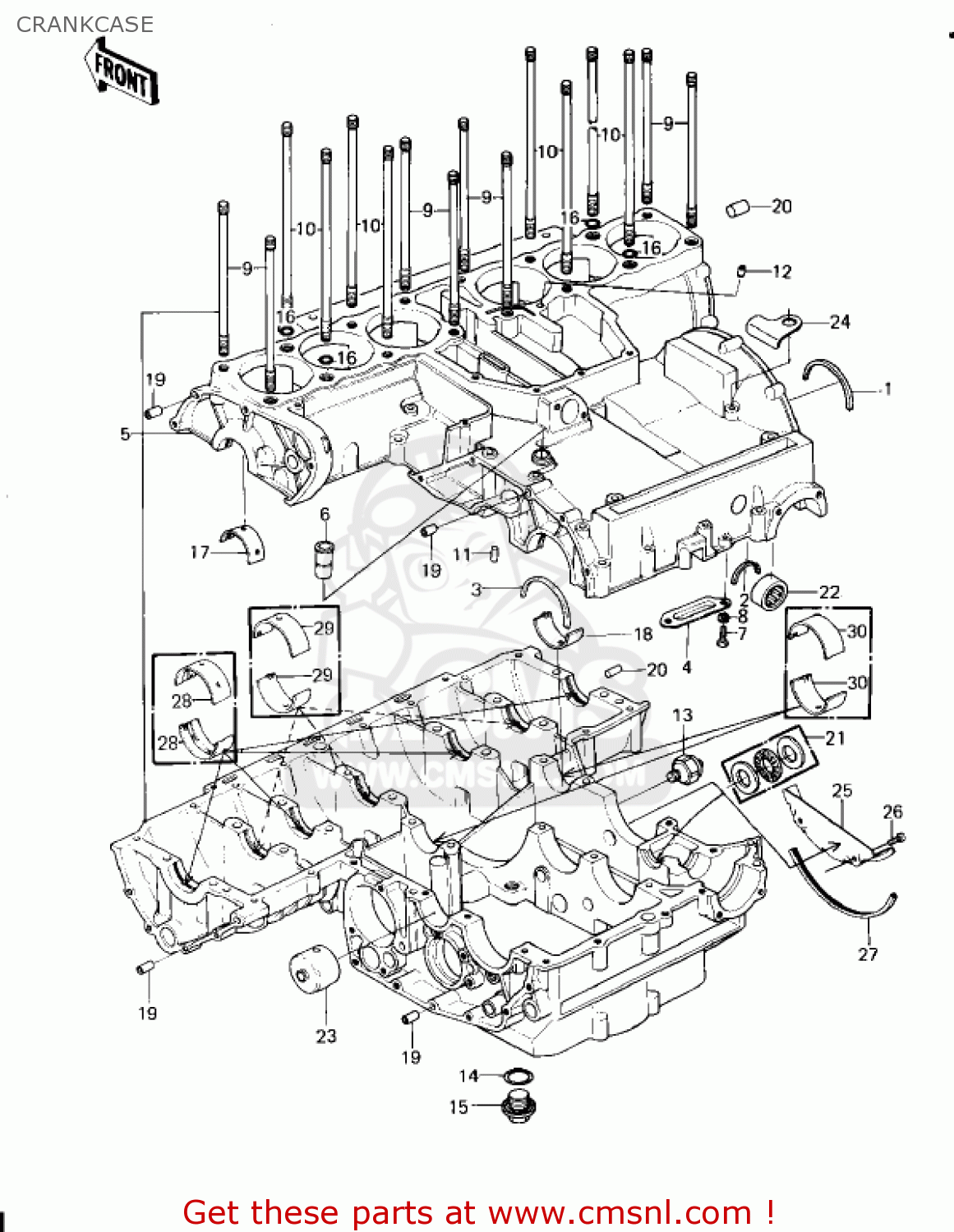

Crankcase diagram KZ1300A1 1979 USA CANADA
CRANKCASE KZ1300A1 1979 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
14013013
ref: 1
RING-POSITION,T=1.90
€ 7.50
1
140131004
ref: 1
RING-POSITION,CRANK
€ 3.00
2
140131002
ref: 2
RING-POSITION
€ 3.00
3
140131004
ref: 3
RING-POSITION,CRANK
€ 3.00
4
130451002
ref: 4
RECEIVER-OIL
€ 2.50
5
140015058
ref: 5
E/NO.000101
CRANKCASE SET
€ 2,000.50
5
140015058
ref: 5
E/NO.010826
CRANKCASE SET
€ 2,000.50
5
140015058
ref: 5
E/NO.011196
CRANKCASE SET
€ 2,000.50
5
140015066
ref: 5
KZ1300-A3
SET-CRANKCASE,SILVER
€ 2,000.50
6
14067006
ref: 6
BREATHER JOINT
€ 14.00
7
112G0616
ref: 7
BOLT UPSET,6X16
€ 1.00
8
461F0600
ref: 8
WASHER-SPRING,6MM
€ 0.50
9
92004062
ref: 9
STUD, 10X153
€ 13.50
10
920041019
ref: 10
STUD,10X195
€ 9.00
11
92042016
ref: 11
PIN,DOWEL,6X16
€ 3.50
12
92062011
ref: 12
NOZZLE,OIL
€ 5.50
13
16144006
ref: 13
SWITCH,OIL PRESSURE
€ 28.00
14
670B2022
ref: 14
O RING,22MM
€ 3.00
15
920011183
ref: 15
BOLT,OIL DRAIN
€ 37.50
16
670B2012
ref: 16
O RING,12MM
€ 1.00
17
920281105
ref: 17
E/NO.000101-
BUSHING,MAIN JOURNAL,
€ 9.50
18
920281108
ref: 18
E/NO.000101-
BUSHING,MAIN JOURNAL,
€ 9.50
19
92042007
ref: 19
PIN-DOWEL
€ 4.00
20
92042016
ref: 20
PIN,DOWEL,6X16
€ 3.50
21
920461017
ref: 21
BEARING,N,NTBGW1528
€ 30.50
22
920461018
ref: 22
BEARING,N,TR-22301302
€ 40.50
23
920481008
ref: 23
RACE,DRIVE SHAFT,LH
€ 44.00
24
920371152
ref: 24
E/NO.001122-
CLAMP,CABLE
€ 2.50
25
180201022
ref: 25
E/NO.011196-
BAFFLE
€ 9.00
26
220B0610
ref: 26
E/NO.011196-
SCREW-PAN HEAD,6X10
€ 2.00
27
920931040
ref: 27
E/NO.011196-
SEAL
€ 3.00
28
920281103
ref: 28
E/NO.010638-
BUSHING,MAIN JOURNAL,
€ 9.50
28
920281104
ref: 28
E/NO.010638-
BUSHING,MAIN JOURNAL,
€ 10.00
28
920281105
ref: 28
E/NO.010638-
BUSHING,MAIN JOURNAL,
€ 9.50
29
920281106
ref: 29
E/NO.010638-
BUSHING,MAIN JOURNAL,
€ 9.50
29
920281107
ref: 29
E/NO.010638-
BUSHING,MAIN JOURNAL,
€ 9.50
29
920281108
ref: 29
E/NO.010638-
BUSHING,MAIN JOURNAL,
€ 9.50
30
920281108
ref: 30
BUSHING,MAIN JOURNAL,
€ 9.50
