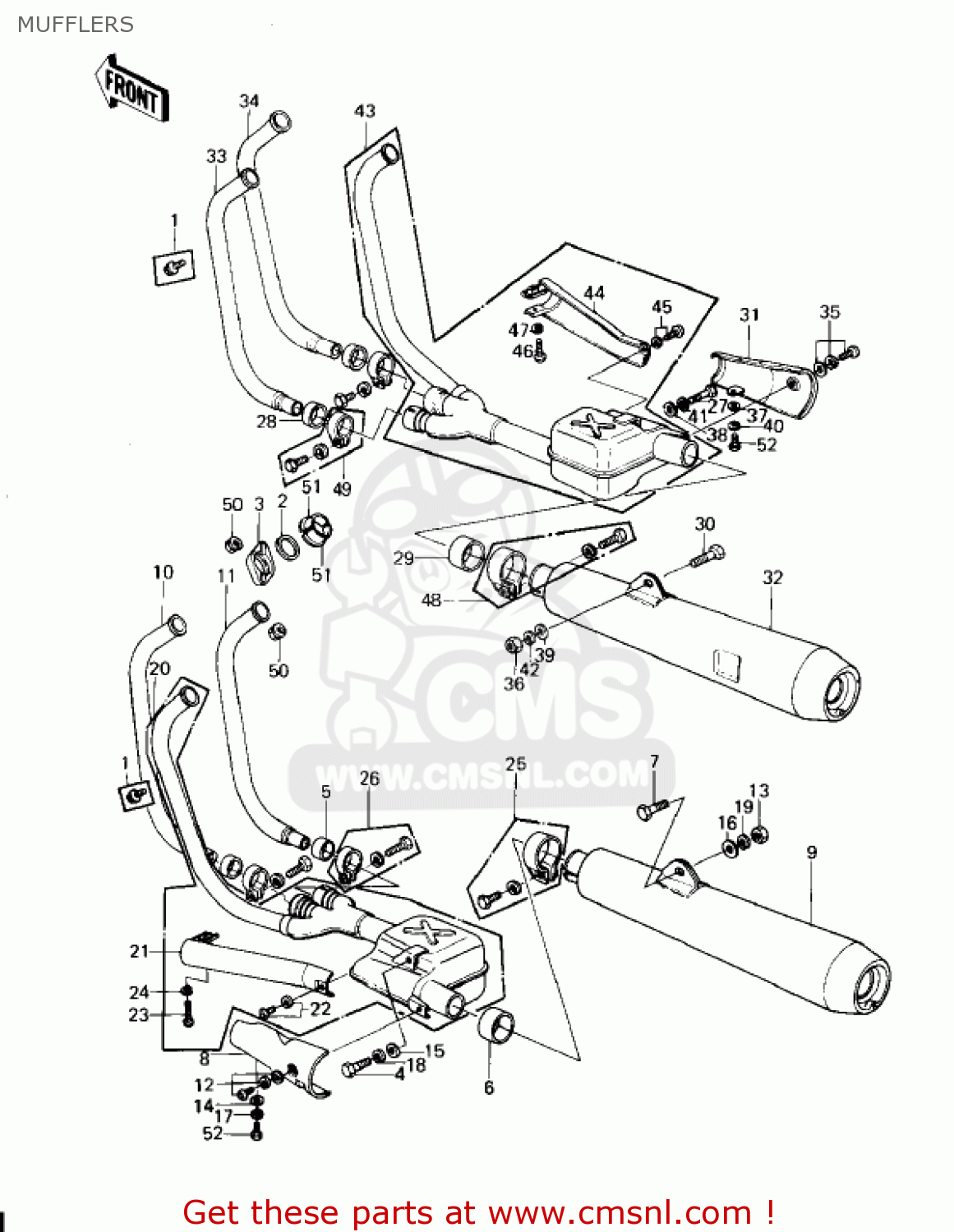

MUFFLERS

ref

part #

description

quantity

1

130N0610
ref: 1

BOLT,FLANGED,6X10

€ 2.50

2

110091866
ref: 2

GASKET,EXHAUST PIPE H (NAS)

€ 7.50

3

180691010
ref: 3

HOLDER-EXHAUST PIPE

€ 12.50

4

114N0825
ref: 4

BOLT-SMALL,8X25

€ 2.50

5

110601051
ref: 5

GASKET,MUFFLER CONNEC (NAS)

€ 15.00

6

110091666
ref: 6

GASKET,EXHAUST PIPE C (NAS)

€ 20.50

7

920011253
ref: 7

BOLT,HEX HEAD,10X40

€ 5.50

8

140251149
ref: 8

COVER,MUFFLER,RR,LH

€ 33.50

9

180021375
ref: 9

BODY-COMP-MUFFLER,LH

€ 425.50

10

180491164
ref: 10

PIPE-EXHAUST,#2

€ 139.00

11

180491165
ref: 11

PIPE-EXHAUST,#3

€ 139.00

12

920091098
ref: 12

SCREW,6X10

€ 2.00

13

314B1000
ref: 13

NUT,10MM

€ 0.50

14

411B0600
ref: 14

WASHER-PLAIN,6MM

€ 0.50

15

411D0800
ref: 15

WASHER,PLAIN,8MM

€ 2.00

16

411B1000
ref: 16

WASHER-PLAIN,10MM

€ 0.50

17

461F0600
ref: 17

WASHER-SPRING,6MM

€ 0.50

18

461S0800
ref: 18

WASHER,SPRING,8M/M

€ 0.50

19

461F1000
ref: 19

WASHER-SPRING,10MM

€ 0.50

20

490701021
ref: 20

CHAMBER,POWER,L.H

€ 318.00

20

490701101
ref: 20

MUFFLER-COMP,LH

€ 318.00

21

140251147
ref: 21

COVER,MUFFLER,L.H,FRT

€ 22.50

22

920091088
ref: 22

SCREW,6X12

€ 2.00

23

220B0640
ref: 23

SCREW-PAN HEAD,6X40

€ 2.00

24

461F0600
ref: 24

WASHER-SPRING,6MM

€ 0.50

25

920371105
ref: 25

CLAMP,MUFFLER

€ 11.50

25

920371228
ref: 25

CLAMP,POWER CHAMBER

€ 11.50

26

920371243
ref: 26

CLAMP,37MM

€ 18.00

27

114N0855
ref: 27

BOLT-SMALL,8X55

€ 3.50

28

110601051
ref: 28

GASKET,MUFFLER CONNEC (NAS)

€ 15.00

29

110091666
ref: 29

GASKET,EXHAUST PIPE C (NAS)

€ 20.50

30

920011253
ref: 30

BOLT,HEX HEAD,10X40

€ 5.50

31

140251150
ref: 31

COVER,MUFFLER,RR,RH

€ 33.50

32

180021376
ref: 32

BODY-COMP-MUFFLER,RH

€ 425.50

33

180491166
ref: 33

PIPE-EXHAUST,#4

€ 139.00

34

180491167
ref: 34

PIPE-EXHAUST,#5

€ 139.00

35

920091098
ref: 35

SCREW,6X10

€ 2.00

36

314B1000
ref: 36

NUT,10MM

€ 0.50

37

411B0600
ref: 37

WASHER-PLAIN,6MM

€ 0.50

38

411D0800
ref: 38

WASHER,PLAIN,8MM

€ 2.00

39

411B1000
ref: 39

WASHER-PLAIN,10MM

€ 0.50

40

461F0600
ref: 40

WASHER-SPRING,6MM

€ 0.50

41

461S0800
ref: 41

WASHER,SPRING,8M/M

€ 0.50

42

461F1000
ref: 42

WASHER-SPRING,10MM

€ 0.50

43

490701102
ref: 43

MUFFLER-COMP,RH

€ 318.00

44

140251148
ref: 44

COVER,MUFFLER,FR,RH

€ 33.50

45

920091088
ref: 45

SCREW,6X12

€ 2.00

46

220B0640
ref: 46

SCREW-PAN HEAD,6X40

€ 2.00

47

461F0600
ref: 47

WASHER-SPRING,6MM

€ 0.50

48

920371105
ref: 48

CLAMP,MUFFLER

€ 11.50

49

920371243
ref: 49

CLAMP,37MM

€ 18.00

50

920151078
ref: 50

NUT,6M/M

€ 1.50

51

920271142
ref: 51

COLLAR,L=14.5

€ 3.00

52

112G0612
ref: 52

BOLT-UPSET

€ 2.50
