FRONT BRAKE

KZ1300A1 1979 USA CANADA

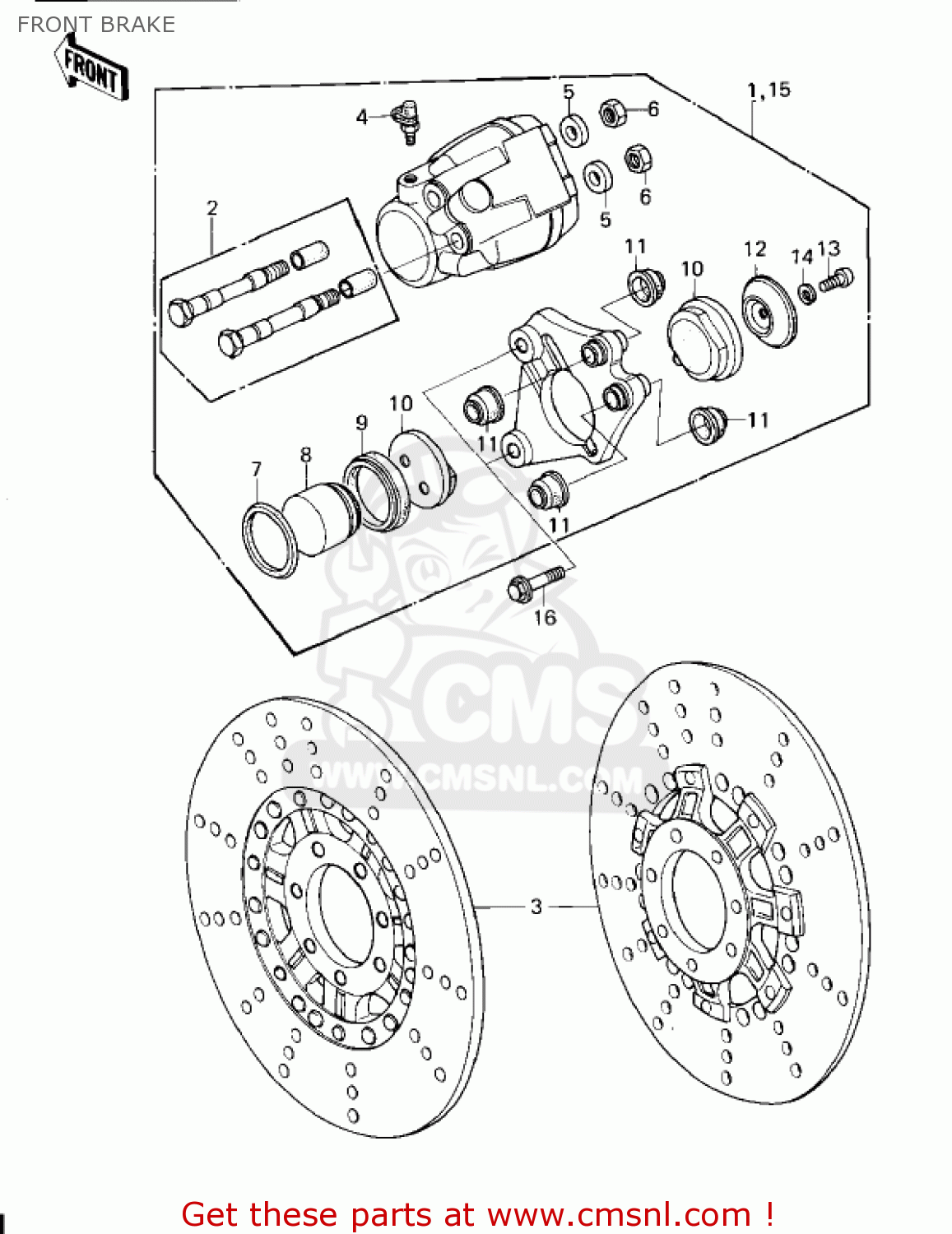

Front brake diagram KZ1300A1 1979 USA CANADA

FRONT BRAKE KZ1300A1 1979 USA CANADA

FRONT BRAKE KZ1300A1 1979 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

430411016
ref: 1

CALIPER ASSY,FRNT,L.H

€ 377.50

2

132341002
ref: 2

SHAFT-COMP,CALIPER

€ 38.50

3

410801123
ref: 3

DISC,FR,SILVER

€ 408.00

4

43085001
ref: 4

BREEDER SET

€ 16.50

5

43088002
ref: 5

PLUG

€ 6.50

6

315B1000
ref: 6

NUT,10MM

€ 0.50

7

43049002A
ref: 7

PISTON SEAL RING

€ 9.00

8

430201012
ref: 8

PISTON-COMP-BRAKE

€ 65.50

9

43054003
ref: 9

BOOT,PISTON

€ 10.00

10

430821004
ref: 10

PAD SET

€ 34.00

11

43052005
ref: 11

BOOT,SHAFT

€ 7.50

12

43040004
ref: 12

SPACER

€ 8.00

13

220B0612
ref: 13

SCREW-PAN HEAD,6X12

€ 1.00

14

461F0600
ref: 14

WASHER-SPRING,6MM

€ 0.50

15

430411017
ref: 15

CALIPER ASSY,FRNT,R.H

€ 377.50

16

920011299
ref: 16
10X45

BOLT,HEX HEAD,10X44

€ 3.50

16

920011299
ref: 16
10X44

BOLT,HEX HEAD,10X44

€ 3.50
