FOOTRESTS

KZ1300A1 1979 USA CANADA

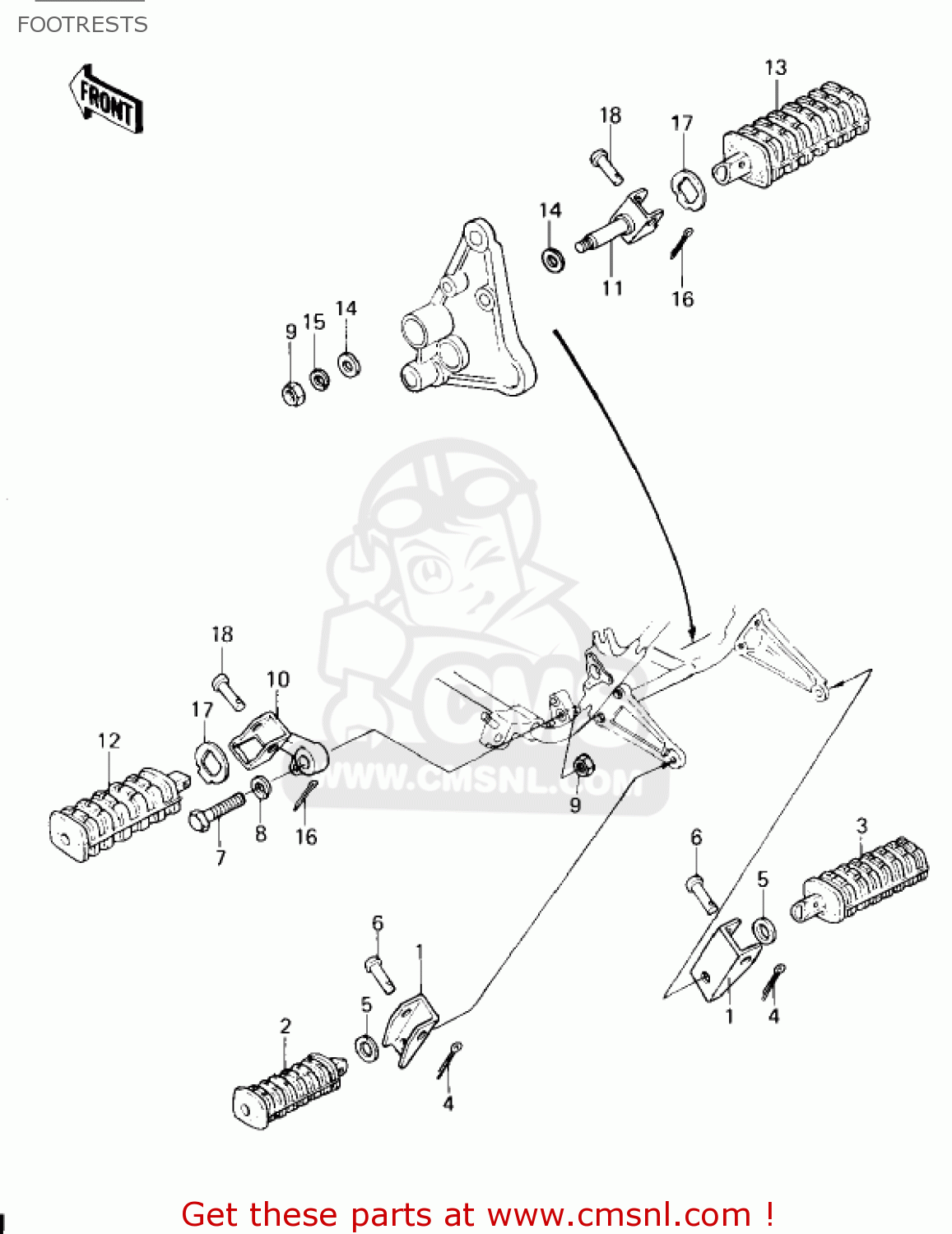

Footrests diagram KZ1300A1 1979 USA CANADA

FOOTRESTS KZ1300A1 1979 USA CANADA

FOOTRESTS KZ1300A1 1979 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

340031025
ref: 1

HOLDER-STEP,RR

€ 18.00

2

340281009
ref: 2

STEP,RR,LH

€ 26.50

3

340281010
ref: 3

STEP,RR,RH

€ 49.50

4

550D2012
ref: 4

PIN,COTTER,2.0X12

€ 0.50

5

92022181
ref: 5

WASHER,22.5X30X2.6

€ 3.50

6

920431464
ref: 6

PIN

€ 5.50

7

113B1236A
ref: 7

BOLT-HEX HEAD,12X36

€ 3.50

8

461F1200
ref: 8

WASHER-SPRING,12MM

€ 0.50

9

315B1200
ref: 9

NUT,12MM

€ 0.50

10

340031029
ref: 10

HOLDER-STEP,FR,LH

€ 41.00

11

340031030
ref: 11

HOLDER-STEP,FR,RH

€ 41.00

12

340281015
ref: 12

STEP,FR,LH

€ 59.50

13

340281016
ref: 13

STEP,FR,RH

€ 59.50

14

410B1200
ref: 14

WASHER-PLAIN-SMALL,12

€ 0.50

15

461F1200
ref: 15

WASHER-SPRING,12MM

€ 0.50

16

550D2516
ref: 16

PIN-COTTER,2.5X16

€ 1.50

17

920221096
ref: 17

WASHER,LOCK

€ 3.00

18

92043080
ref: 18

PIN-FOOTREST BAR FIT

€ 3.50
