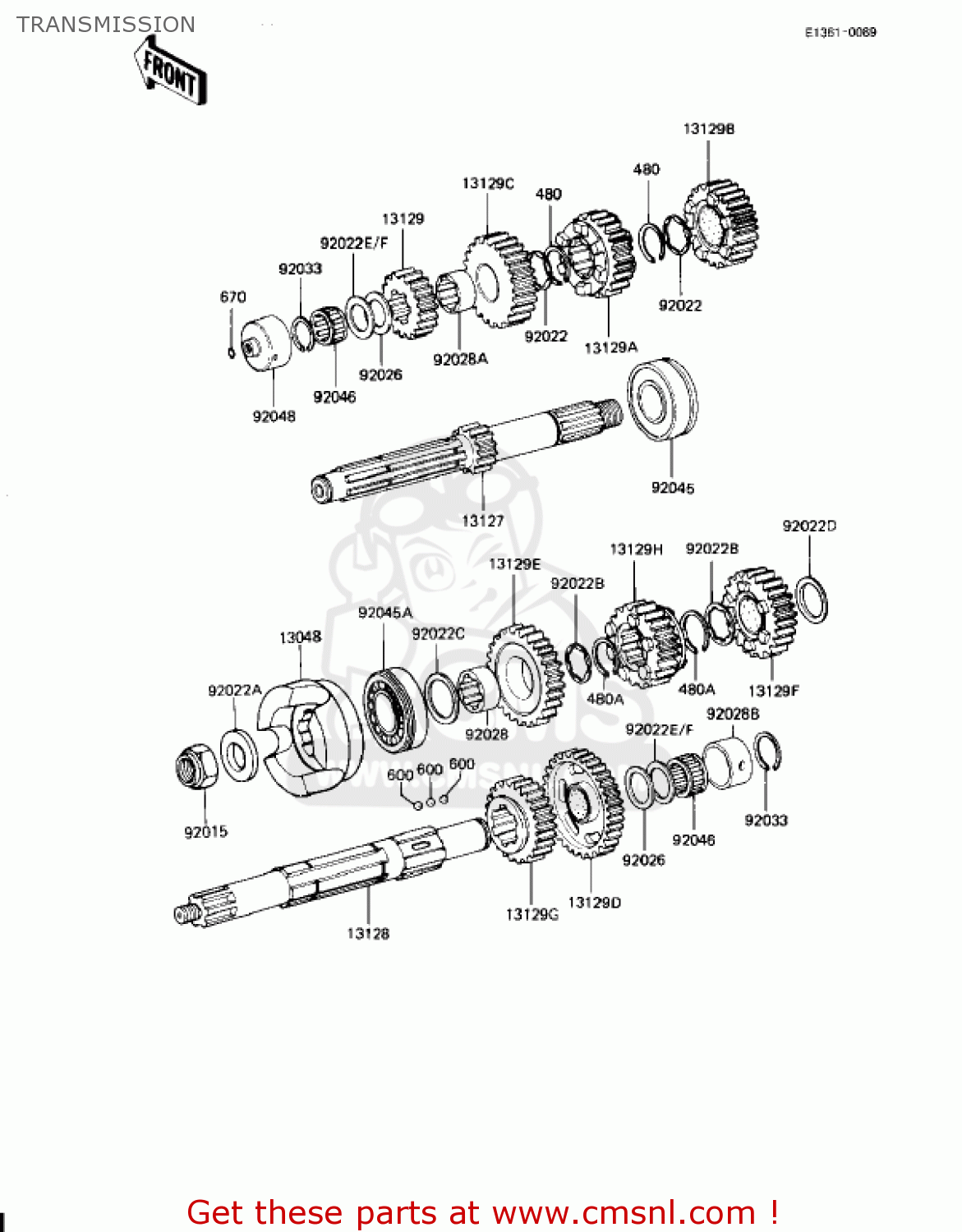

TRANSMISSION

ref

part #

description

quantity

13048

130481004
ref: 13048

DAMPER,OUTPUT SHAFT

€ 30.50

13127

131271038
ref: 13127

SHAFT-TRANSMISSION IN

€ 222.50

13128

131281035
ref: 13128

SHAFT-TRANSMISSION OU

€ 113.50

13129

131291235
ref: 13129

GEAR,INPUT 2ND,18T

€ 141.00

13129A

131291236
ref: 13129A

GEAR,INPUT 3RD,21T

€ 128.50

13129B

131291237
ref: 13129B

GEAR,INPUT 4TH,23T

€ 101.50

13129C

131291238
ref: 13129C

GEAR,INPUT TOP,25T

€ 149.50

13129D

131291239
ref: 13129D

GEAR,OUTPUT LOW,37T

€ 188.00

13129E

131291240
ref: 13129E

GEAR,OUTPUT 2ND,33T

€ 159.50

13129F

131291241
ref: 13129F

GEAR,OUTPUT 3RD,30T

€ 114.50

13129G

131291242
ref: 13129G

GEAR,OUTPUT 4TH,27T

€ 120.50

13129H

131291243
ref: 13129H

GEAR,OUTPUT TOP,26T

€ 192.00

92015

920151067
ref: 92015

NUT,LOCK,14MM

€ 6.00

92022

920221077
ref: 92022

WASHER,LOCK (O.D=35O)

€ 7.50

92022A

920221115
ref: 92022A

WASHER,14.1X31X5

€ 8.00

92022B

920221218
ref: 92022B

WASHER,TOOTHED,30X42X

€ 3.00

92022C

920221219
ref: 92022C

WASHER,28.3X42X2.9

€ 10.50

92022D

920221220
ref: 92022D

WASHER,32.3X42X3

€ 7.50

92022E

92022212
ref: 92022E

WASHER-PLAIN,22MM

€ 6.50

92022F

92022213
ref: 92022F

WASHER,22.3X35X1.2

€ 7.00

92026

920261020
ref: 92026

SPACER,22X35.5X1.0

€ 3.50

92028

920281112
ref: 92028

BUSHING,2ND GEAR

€ 28.00

92028A

920281124
ref: 92028A

BUSHING,TOP GEAR

€ 31.00

92028B

92028123
ref: 92028B

BUSHING,OUTPUT SHAFT

€ 36.50

92033

92033025
ref: 92033

CIRCLIP,25MM

€ 3.00

92045

920451028
ref: 92045

BEARING-BALL,5305NSH2

€ 135.00

92045A

920451034
ref: 92045A

BEARING-BALL,63/28NC3

€ 53.50

92046

92046031
ref: 92046

BEARING-NEEDLE,FWF-22

€ 19.50

92048

920481012
ref: 92048

RACE,DRIVE SHAFT BEAR

€ 40.00

480

480J2800
ref: 480

CIRCLIP-TYPE-C,28MM

€ 3.50

480A

480J3200
ref: 480A

CIRCLIP-TYPE-C,32MM

€ 1.00

600

600A0600
ref: 600

BALL-STEEL,3/16

€ 0.50

670

670B1508
ref: 670

O RING,8MM

€ 1.00

all assemblies
