SWING ARM/SHOCK ABSORBERS

KZ1100L1 LTD SHAFT 1983 USA CANADA

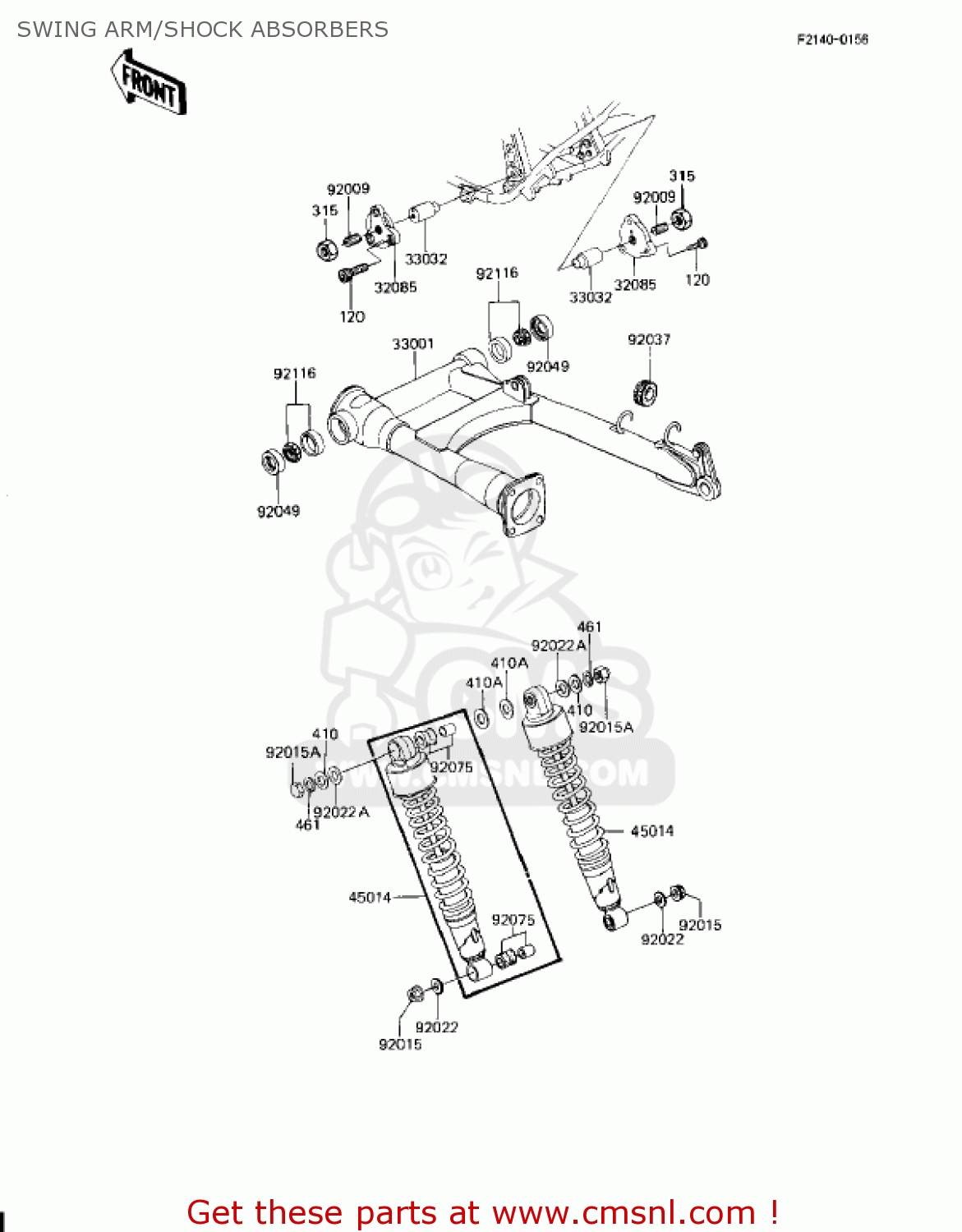

Swing arm/shock absorbers diagram KZ1100L1 LTD SHAFT 1983 USA CANADA

prices are in EUR

ref

part #

description

quantity

32085

320851071
ref: 32085

STOPPER,SWING ARM

€ 26.50

33001

330011102
ref: 33001

ARM-COMP-SWING

€ 201.00

33032

330321021
ref: 33032

SHAFT-SWING ARM

€ 30.00

45014

450141204
ref: 45014

SHOCK ABSORBER,REAR

€ 255.00

92009

920091087
ref: 92009

SCREW,14X22

€ 4.50

92015

920151415
ref: 92015

NUT,10MM

€ 3.00

92015A

92020014
ref: 92015A

NUT,CAP,12MM

€ 6.50

92022

920221193
ref: 92022

WASHER,10.5X30X2.3

€ 4.50

92022A

920221239
ref: 92022A

WASHER,12.4X28X2.3

€ 3.00

92037

43064007
ref: 92037

43064007

92049

920491030
ref: 92049

OIL SEAL,26406

€ 6.50

92075

920751141
ref: 92075

BUSHING,SHOCK ABSORBE

€ 10.00

92116

921161001
ref: 92116

BEARING,R,4T30203E1

€ 39.00

120

120S0820
ref: 120

BOLT-SOCKET,8X20

€ 2.50

315

315B1400
ref: 315

NUT,14MM

€ 1.00

410

410B1200
ref: 410

WASHER-PLAIN-SMALL,12

€ 0.50

410A

410B1400
ref: 410A

410B1400

461

461F1200
ref: 461

WASHER-SPRING,12MM

€ 0.50
