DRIVE SHAFT/FINAL GEARS

KZ1100L1 LTD SHAFT 1983 USA CANADA

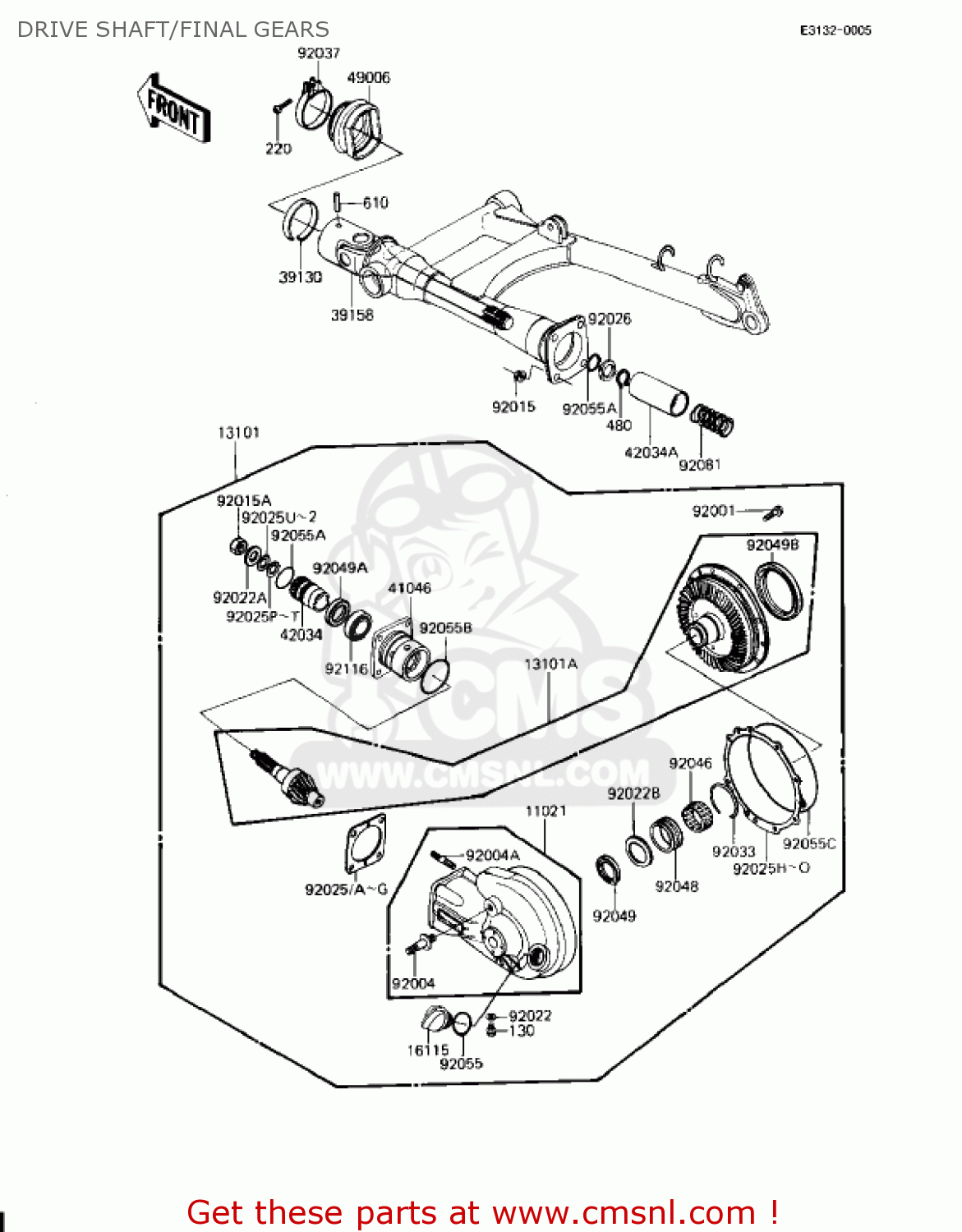

Drive shaft/final gears diagram KZ1100L1 LTD SHAFT 1983 USA CANADA

DRIVE SHAFT/FINAL GEARS KZ1100L1 LTD SHAFT 1983 USA CANADA
DRIVE SHAFT/FINAL GEARS KZ1100L1 LTD SHAFT 1983 USA CANADA
DRIVE SHAFT/FINAL GEARS KZ1100L1 LTD SHAFT 1983 USA CANADA
prices are in EUR
ref
part #
description
quantity
11021
110211014F2
ref: 11021
CASE-ASSY
€ 801.00
13101
131011016B9
ref: 13101
GEAR-ASSY,FINAL
€ 1,326.00
13101A
131015032
ref: 13101A
GEAR-ASSY,REAR BEVEL
€ 862.00
16115
161151011F2
ref: 16115
OIL FILLER CAP,GALAXY SILVER
€ 8.00
39130
391301002
ref: 39130
SPRING,LEAF
391301002
€ 3.00
39158
391581061
ref: 39158
SHAFT-ASSY-DRIVE
€ 290.50
41046
410461012
ref: 41046
HOUSING-BEARING
€ 201.50
42034
420341023
ref: 42034
COUPLING,PROPELLER SH
420341023
€ 81.00
42034A
420341092
ref: 42034A
COUPLING,PROPELLER SH
420341092
€ 78.00
49006
490061059
ref: 49006
BOOT,PROPELLER SHAFT
490061059
€ 22.50
92001
920011095
ref: 92001
BOLT,8X28
920011095
€ 4.50
92004
920041020
ref: 92004
STUD,SHOCK ABSORBER
920041020
€ 16.50
92004A
920041024
ref: 92004A
STUD,10X30
920041024
€ 4.00
92015
920151415
ref: 92015
NUT,10MM
920151415
€ 3.00
92015A
920151059
ref: 92015A
NUT,16MM
920151059
€ 7.50
92022
920221086
ref: 92022
WASHER,8.2X16X1
920221086
€ 2.50
92022A
920221105
ref: 92022A
WASHER,16X32X3.2
920221105
€ 7.00
92022B
920221237
ref: 92022B
WASHER,40X52.5X1.4
920221237
€ 4.50
92025
920251052
ref: 92025
SHIM,T=0.15
920251052
€ 9.50
92025A
920251053
ref: 92025A
SHIM,T=0.50
920251053
€ 7.00
92025B
920251054
ref: 92025B
SHIM,T=0.60
920251054
€ 7.00
92025C
920251055
ref: 92025C
SHIM,T=0.70
€ 6.50
92025D
920251056
ref: 92025D
SHIM,T=0.80
€ 6.50
92025E
920251057
ref: 92025E
SHIM,T=0.90
920251057
€ 7.00
92025F
920251058
ref: 92025F
SHIM,T=1.00
920251058
€ 6.50
92025G
920251059
ref: 92025G
SHIM,T=1.20
920251059
€ 7.00
92025H
920251060
ref: 92025H
SHIM,T=0.15
920251060
€ 14.50
92025I
920251061
ref: 92025I
SHIM,T=0.50
920251061
€ 14.50
92025J
920251062
ref: 92025J
SHIM,T=0.60
€ 20.50
92025K
920251063
ref: 92025K
SHIM,T=0.70
920251063
€ 20.50
92025L
920251064
ref: 92025L
SHIM,T=0.80
€ 26.00
92025M
920251065
ref: 92025M
SHIM,T=0.90
€ 20.50
92025N
920251066
ref: 92025N
SHIM,T=1.00
920251066
€ 20.50
92025O
920251067
ref: 92025O
SHIM,T=1.20
€ 20.50
92025P
920251214
ref: 92025P
SHIM,T=1.30
€ 6.00
92025Q
920251215
ref: 92025Q
SHIM,T=1.32
920251215
€ 6.50
92025R
920251216
ref: 92025R
SHIM,T=1.34
€ 6.50
92025S
920251217
ref: 92025S
SHIM,T=1.36
€ 6.50
92025T
920251218
ref: 92025T
SHIM,T=1.38
€ 6.50
92025U
920251219
ref: 92025U
SHIM,T=0.10
€ 4.00
92025V
920251220
ref: 92025V
SHIM,T=0.20
920251220
€ 4.00
92025W
920251221
ref: 92025W
SHIM,T=0.30
€ 4.00
92025X
920251222
ref: 92025X
SHIM,T=0.50
€ 4.00
92025Y
920251223
ref: 92025Y
SHIM,T=0.60
€ 5.50
92025Z
920251224
ref: 92025Z
SHIM,T=0.70
920251224
€ 5.50
920250
920251225
ref: 920250
SHIM,T=0.80
€ 5.50
920251
920251226
ref: 920251
SHIM,T=0.90
€ 5.50
920252
920251227
ref: 920252
SHIM,T=1.00
€ 5.50
92026
920261085
ref: 92026
SPACER,26.2X36X2
920261085
€ 5.00
92033
920331020
ref: 92033
RING-SNAP
€ 2.50
92037
920371112
ref: 92037
CLAMP,BOOT FITTING
920371112
€ 11.50
92046
920461037
ref: 92046
BEARING-NEEDLE,KT3846
920461037
€ 46.50
92048
920481017
ref: 92048
DRIVE SHAFT RACE
920481017
€ 26.00
92049
920491025
ref: 92049
OIL SEAL,S-35477HS
920491025
€ 10.00
92049A
920491033
ref: 92049A
OIL SEAL,SC32487
920491033
€ 12.00
92049B
920491034
ref: 92049B
OIL SEAL,S-831009HS
920491034
€ 26.00
92055
92055049
ref: 92055
'0'RING,31MM
92055049
€ 2.50
92055A
920551037
ref: 92055A
RING-O,ID=32.7
920551037
€ 2.50
92055B
920551038
ref: 92055B
RING-O,57.6X2.4
920551038
€ 4.50
92055C
920551039
ref: 92055C
RING-O,ID=150.4
920551039
€ 9.50
92081
920811183
ref: 92081
SPRING,PROPELLER SHFT
920811183
€ 4.00
92116
921161004
ref: 92116
BEARING-ROLLER,4T3200
921161004
€ 53.50
130
130B0812
ref: 130
BOLT,FLANGED,8X12
€ 0.50
220
220B0430
ref: 220
SCREW-PAN-CROS
220B0430
€ 0.50
480
480J2600
ref: 480
CIRCLIP-TYPE-C,26MM
480J2600
€ 1.50
610
610A0406
ref: 610
ROLLER,4X6
610A0406
€ 2.50
