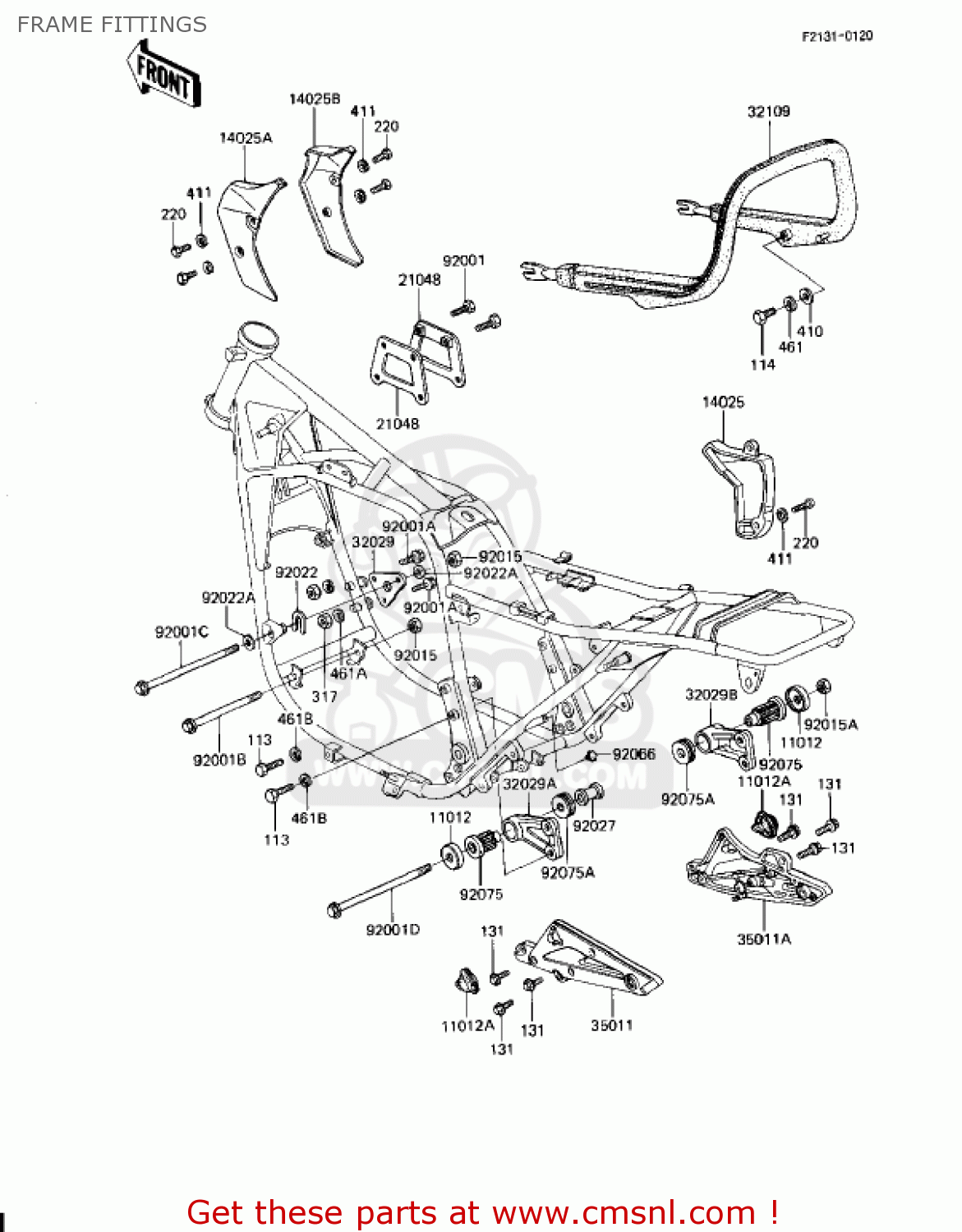

FRAME FITTINGS

ref

part #

description

quantity

11012

110121182
ref: 11012

CAP,ENG MOUNT,DAMPER

€ 2.00

11012A

110121240
ref: 11012A

CAP,MUFFLER STAY

€ 5.50

14025

140251375
ref: 14025

COVER,ORNAMENT,RH

€ 12.00

14025A

140251388
ref: 14025A

COVER,FUEL TANK,LH,BL

€ 9.00

14025B

140251389
ref: 14025B

COVER,FUEL TANK,RH,BL

€ 9.00

21048

210481001
ref: 21048

PLATE-COIL

€ 14.00

32029

320291142
ref: 32029

BRACKET-ENGINE,FR,UPP

€ 13.00

32029A

320291163
ref: 32029A

BRACKET-ENGINE,RR,LH

€ 30.50

32029B

320291164
ref: 32029B

BRACKET-ENGINE,RR,RH

€ 26.50

32109

321091039
ref: 32109

FRAME GRIP

€ 162.50

35011

350111146
ref: 35011

MUFFLER STAY,LH

€ 196.00

35011A

350111147
ref: 35011A

MUFFLER STAY,RH

€ 220.00

92001

92001137
ref: 92001

BOLT,HEX HEAD,6M/M

€ 4.00

92001A

920011616
ref: 92001A

BOLT,FLANGED,8X65

€ 5.50

92001B

920011620
ref: 92001B

BOLT

€ 14.00

92001C

920011624
ref: 92001C

BOLT FLANGED

€ 26.00

92001D

920011625
ref: 92001D

BOLT,FLANGED,12X320,B

€ 25.50

92015

920151189
ref: 92015

NUT,LOCK,10MM,BLACK

€ 4.50

92015A

920151190
ref: 92015A

NUT,LOCK,12MM,BLACK

€ 4.50

92022

920221259
ref: 92022

WASHER,U FORMED

€ 4.50

92022A

920221022
ref: 92022A

WASHER,10.5X22X4.5

€ 3.00

92027

920271433
ref: 92027

COLLAR,13X25X39.5,BLA

€ 9.50

92066

920661034
ref: 92066

PLUG,FRAME END

€ 3.00

92075

920751330
ref: 92075

DAMPER,ENG MOUNT,RR,I

€ 13.00

92075A

920751331
ref: 92075A

DAMPER,ENG MOUNT,RR,S

€ 7.50

113

113J1045
ref: 113

BOLT-SMALL-FINE,10X45

€ 4.50

114

115G0816
ref: 114

BOLT-HEX,HEAD 8X16

€ 0.50

131

131J0835
ref: 131

BOLT-FLANGED,8X35,BLA

€ 2.50

220

220C0614
ref: 220

SCREW-PAN-CROS,6X14,B

€ 1.50

317

317C0800
ref: 317

NUT-HEX-SMALL,8MM,BLA

€ 0.50

410

410B0800
ref: 410

WASHER-PLAIN-SMALL,8M

€ 0.50

411

411F0600
ref: 411

WASHER-PLAIN,6MM,BLAC

€ 0.50

461

461F0800
ref: 461

WASHER-SPRING,8MM

€ 0.50

461A

461K0800
ref: 461A

WASHER-SPRING,8MM,BLA

€ 1.50

461B

461K1000
ref: 461B

461K1000
