METERS

KZ1100L1 LTD SHAFT 1983 USA CANADA

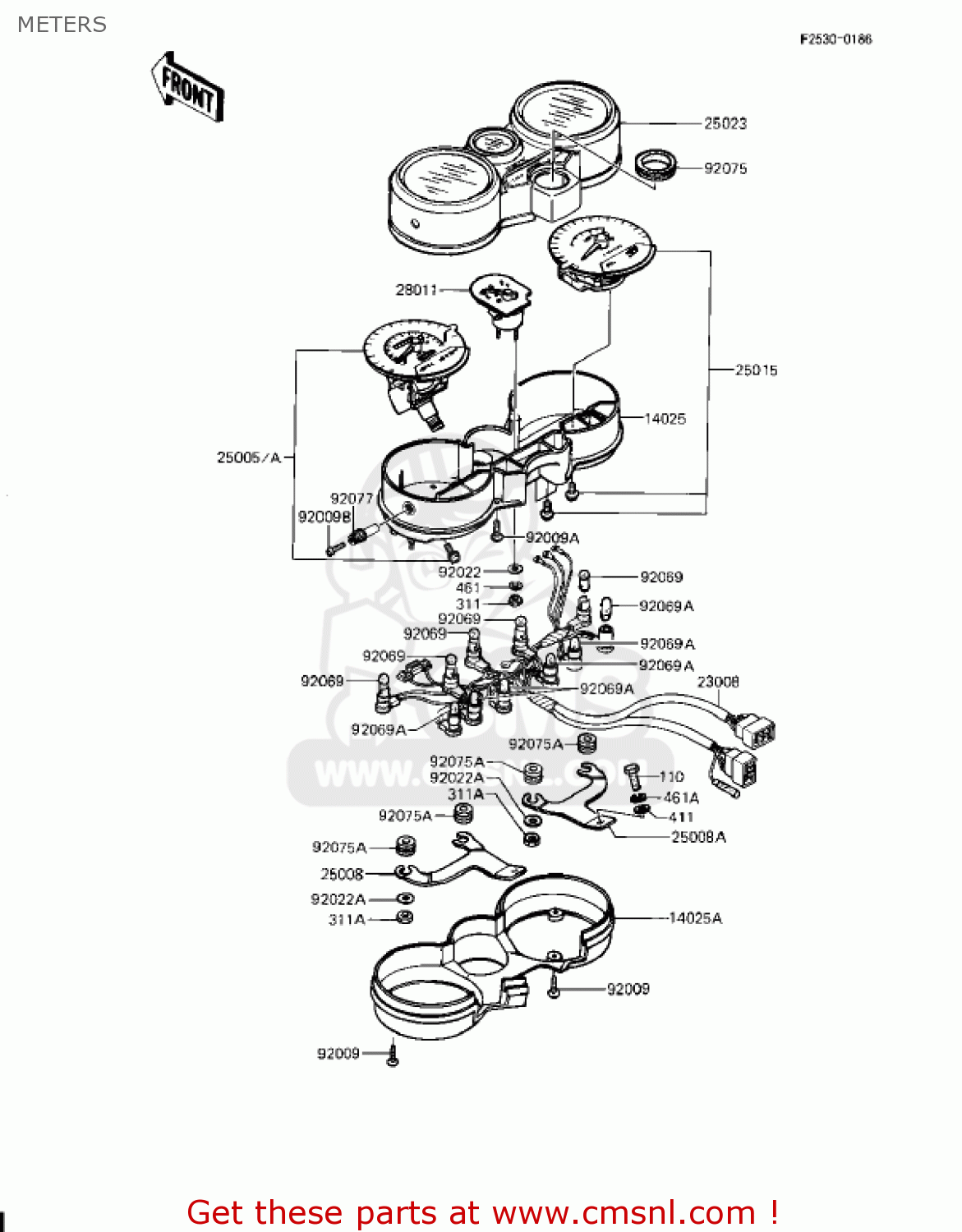

Meters diagram KZ1100L1 LTD SHAFT 1983 USA CANADA

METERS KZ1100L1 LTD SHAFT 1983 USA CANADA
METERS KZ1100L1 LTD SHAFT 1983 USA CANADA
METERS KZ1100L1 LTD SHAFT 1983 USA CANADA
prices are in EUR
ref
part #
description
quantity
14025
140251594
ref: 14025
COVER, METER HOUSING
€ 128.50
14025A
140251602
ref: 14025A
COVER,METER CASE,LWR
€ 35.00
23008
230081174A
ref: 23008
METER SOCKET ASSEMBLY
€ 88.50
25005
250051202
ref: 25005
US
SPEEDOMETER,MPH
€ 390.50
25005A
250051203
ref: 25005A
CN
SPEEDOMETER,KPH
€ 208.00
25008
250081053
ref: 25008
BRACKET-METER,LH
250081053
€ 14.50
25008A
250081054
ref: 25008A
BRACKET-METER,RH
250081054
€ 13.00
25015
250151139
ref: 25015
TACHOMETER,X1000RPM
€ 287.00
25023
250231049
ref: 25023
METER CASE COVER,UPPER
€ 238.00
28011
280111033
ref: 28011
METER,FUEL
€ 74.50
92009
920091158
ref: 92009
SCREW,4X16,BLACK
920091158
€ 2.50
92009A
920091163
ref: 92009A
SCREW,TAPPING,4X16
920091163
€ 2.50
92009B
920091172
ref: 92009B
SCREW,2X6,BLACK
920091172
€ 2.00
92022
920221374
ref: 92022
WASHER,3MM
920221374
€ 2.00
92022A
92022263
ref: 92022A
WASHER,PLAIN,6MM
92022263
€ 1.50
92069
92069017
ref: 92069
BULB 12V 1.5W
92069017
€ 4.00
92069A
920691007
ref: 92069A
BULB,12V3.4W
920691007
€ 2.50
92075
920751256
ref: 92075
DAMPER,PILOT BOX
920751256
€ 9.00
92075A
920751435
ref: 92075A
DAMPER,METER BRACKET
920751435
€ 4.00
92077
920771015
ref: 92077
KNOB,METER
920771015
€ 6.00
110
112C0614
ref: 110
BOLT,6X14,BLACK
112C0614
€ 3.00
311
311B0300
ref: 311
NUT-HEX
311B0300
€ 0.50
311A
311B0500
ref: 311A
NUT-HEX
311B0500
€ 0.50
411
411F0600
ref: 411
WASHER-PLAIN,6MM,BLAC
411F0600
€ 0.50
461
461F0300
ref: 461
WASHER-SPRING,3MM
461F0300
€ 0.50
461A
461K0600
ref: 461A
WASHER-SPRING
461K0600
€ 0.50
