STANDS

KZ1100D2 SPECTRE 1983 USA CANADA

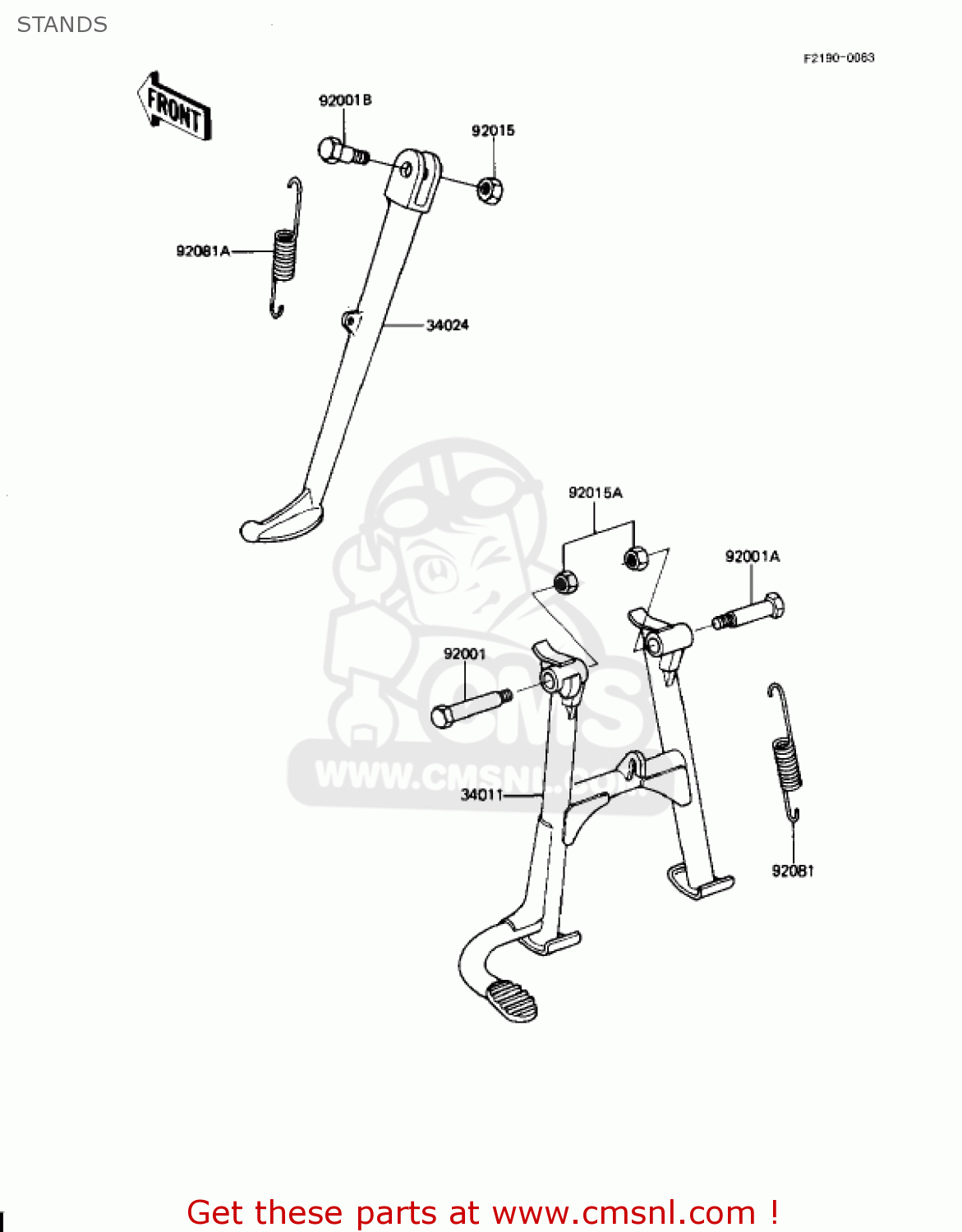

Stands diagram KZ1100D2 SPECTRE 1983 USA CANADA

prices are in EUR

ref

part #

description

quantity

34011

340111034
ref: 34011

STAND-CENTER

€ 85.50

34024

340241015
ref: 34024

STAND,SIDE

€ 60.50

92001

920011377
ref: 92001

BOLT,FLANGED,8X38

€ 7.50

92001A

920011411
ref: 92001A

BOLT,CENTER STAND

€ 10.00

92001B

920011543
ref: 92001B

BOLT,SIDE STAND,BLACK

€ 8.00

92015

920151188
ref: 92015

NUT,LOCK,10MM,BLACK

€ 4.00

92015A

92019021
ref: 92015A

NUT,LOCK,10M/M

€ 2.00

92081

34023012
ref: 92081

SPRING,MAIN STAND

€ 10.00

92081A

920811727
ref: 92081A

SPRING,SIDE STAND

€ 7.00
