FRAME FITTINGS
KZ1100D2 SPECTRE 1983 USA CANADA

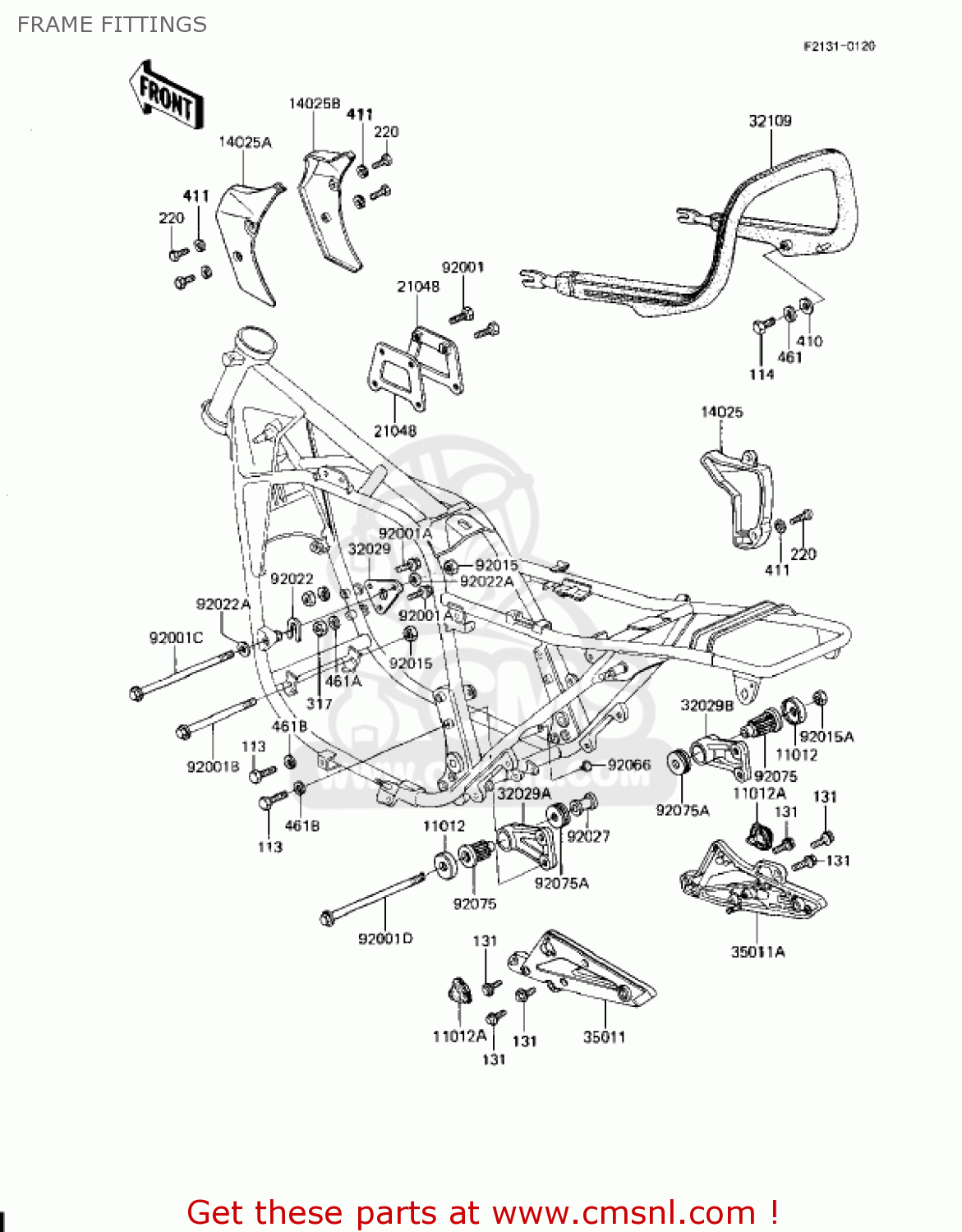

Frame fittings diagram KZ1100D2 SPECTRE 1983 USA CANADA
FRAME FITTINGS KZ1100D2 SPECTRE 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11012
110121182
ref: 11012
CAP,ENG MOUNT,DAMPER
€ 2.00
11012A
110121240
ref: 11012A
CAP,MUFFLER STAY
€ 5.50
14025
140251375
ref: 14025
COVER,ORNAMENT,RH
€ 12.00
14025A
140251388
ref: 14025A
COVER,FUEL TANK,LH,BL
€ 9.00
14025B
140251389
ref: 14025B
COVER,FUEL TANK,RH,BL
€ 9.00
21048
210481001
ref: 21048
PLATE-COIL
€ 14.00
32029
320291142
ref: 32029
BRACKET-ENGINE,FR,UPP
€ 13.00
32029A
320291163
ref: 32029A
BRACKET-ENGINE,RR,LH
€ 30.50
32029B
320291164
ref: 32029B
BRACKET-ENGINE,RR,RH
€ 26.50
32109
321091030
ref: 32109
GRIP-FRAME,BLACK
€ 280.50
35011
350111109
ref: 35011
STAY,MUFFLER,LH
€ 157.00
35011A
350111110
ref: 35011A
STAY,MUFFLER,RH
€ 157.00
92001
92001137
ref: 92001
BOLT,HEX HEAD,6M/M
€ 4.00
92001A
920011616
ref: 92001A
BOLT,FLANGED,8X65
€ 5.50
92001B
920011620
ref: 92001B
BOLT
€ 14.00
92001C
920011624
ref: 92001C
BOLT FLANGED
€ 26.00
92001D
920011625
ref: 92001D
BOLT,FLANGED,12X320,B
€ 25.50
92015
920151189
ref: 92015
NUT,LOCK,10MM,BLACK
€ 4.50
92015A
920151190
ref: 92015A
NUT,LOCK,12MM,BLACK
€ 4.50
92022
920221259
ref: 92022
WASHER,U FORMED
€ 4.50
92022A
920221022
ref: 92022A
WASHER,10.5X22X4.5
€ 3.00
92027
920271433
ref: 92027
COLLAR,13X25X39.5,BLA
€ 9.50
92066
920661034
ref: 92066
PLUG,FRAME END
€ 3.00
92075
920751330
ref: 92075
DAMPER,ENG MOUNT,RR,I
€ 13.00
92075A
920751331
ref: 92075A
DAMPER,ENG MOUNT,RR,S
€ 7.50
113
113J1045
ref: 113
BOLT-SMALL-FINE,10X45
€ 4.50
114
115G0816
ref: 114
BOLT-HEX,HEAD 8X16
€ 0.50
131
131J0835
ref: 131
BOLT-FLANGED,8X35,BLA
€ 2.50
220
220C0614
ref: 220
SCREW-PAN-CROS,6X14,B
€ 1.50
317
317C0800
ref: 317
NUT-HEX-SMALL,8MM,BLA
€ 0.50
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
€ 0.50
411
411F0600
ref: 411
WASHER-PLAIN,6MM,BLAC
€ 0.50
461
461F0800
ref: 461
WASHER-SPRING,8MM
€ 0.50
461A
461K0800
ref: 461A
WASHER-SPRING,8MM,BLA
€ 1.50
461B
461K1000
ref: 461B
461K1000
