FRONT WHEEL/HUB (KZ1100-D1)

KZ1100D2 SPECTRE 1983 USA CANADA

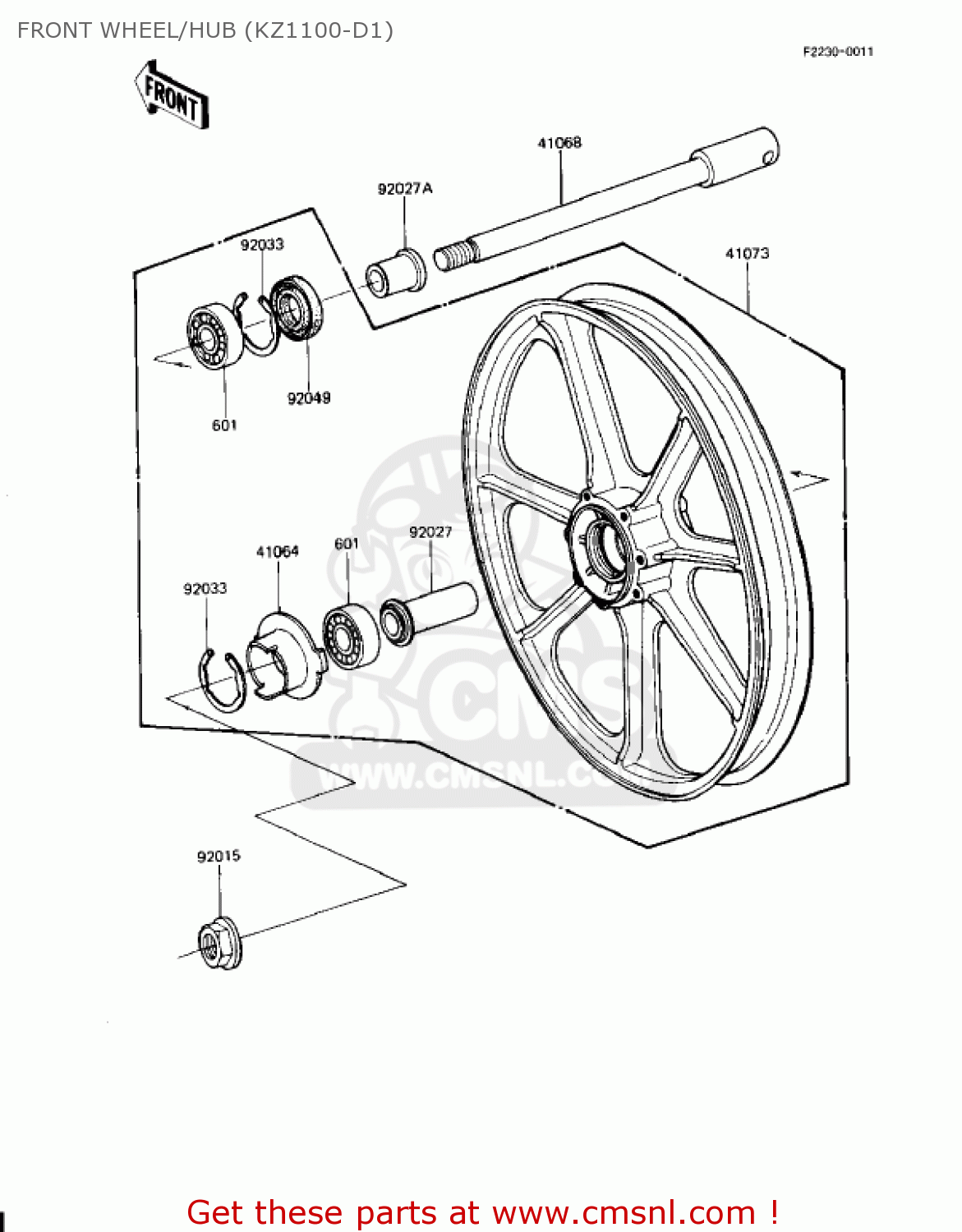

Front wheel/hub (kz1100-d1) diagram KZ1100D2 SPECTRE 1983 USA CANADA

prices are in EUR

ref

part #

description

quantity

41064

410641008
ref: 41064

RECEIVER-SPEEDOMETER

€ 10.50

41068

410681009
ref: 41068

AXLE,FR,L=204

€ 44.50

41073

410731129F6
ref: 41073

WHEEL ASSEMBLY,FRONT,SOLID,GOLD #2

€ 549.50

92015

920151407
ref: 92015

NUT,14MM

€ 6.50

92027

920271223
ref: 92027

COLLAR,FR HUB L=55M/M

€ 5.50

92027A

920271225
ref: 92027A

COLLAR,FR AXLE L=30MM

€ 11.50

92033

920331041
ref: 92033

CIRCLIP,42MM

€ 4.00

92049

920491058
ref: 92049

OIL SEAL,BJN22425

€ 7.50

601

601B6302Z
ref: 601

BEARING-BALL,#6302ZC3

€ 22.50
