CHASSIS ELECTRICAL EQUIPMENT

KZ1100D2 SPECTRE 1983 USA CANADA

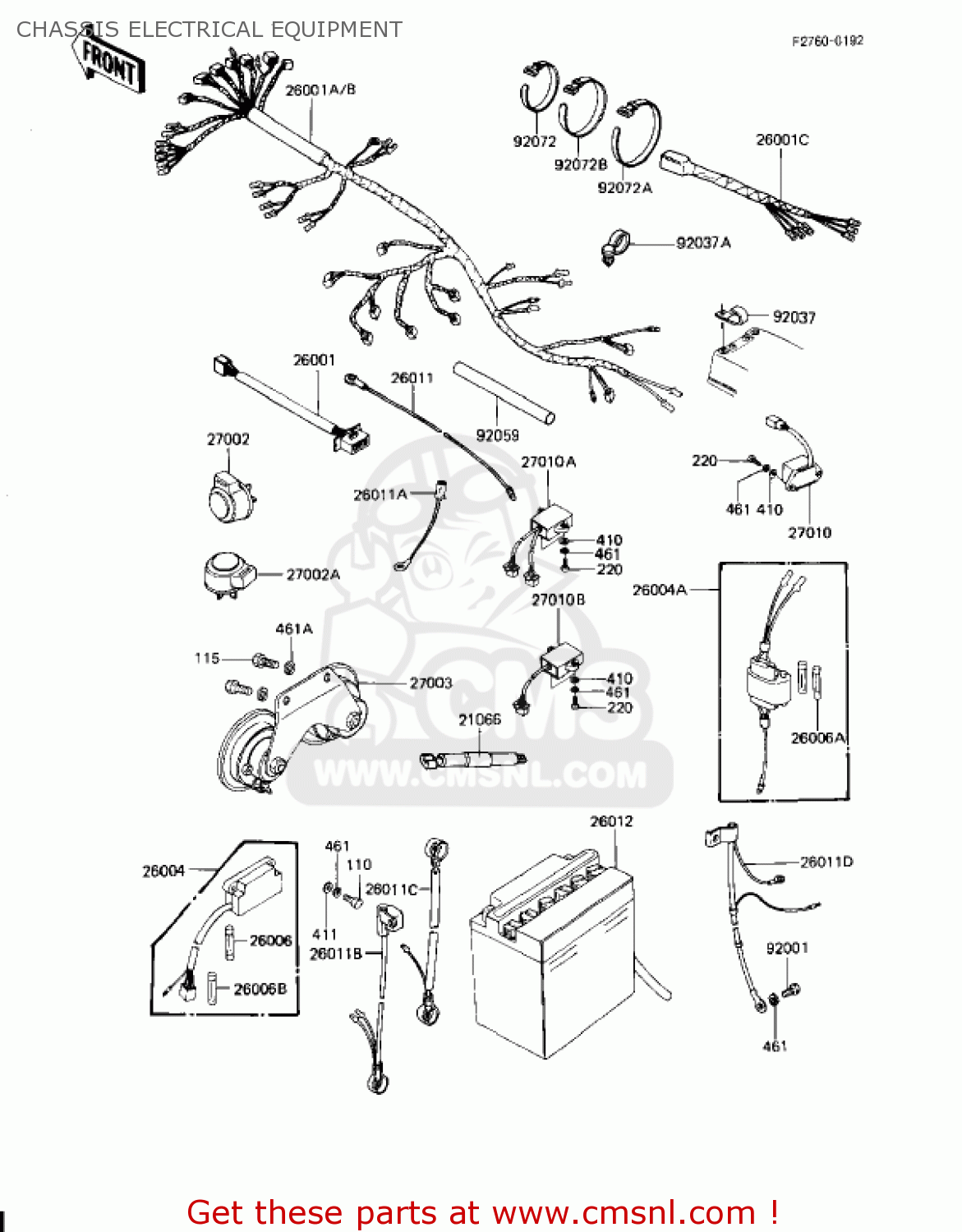

Chassis electrical equipment diagram KZ1100D2 SPECTRE 1983 USA CANADA

CHASSIS ELECTRICAL EQUIPMENT KZ1100D2 SPECTRE 1983 USA CANADA
CHASSIS ELECTRICAL EQUIPMENT KZ1100D2 SPECTRE 1983 USA CANADA
CHASSIS ELECTRICAL EQUIPMENT KZ1100D2 SPECTRE 1983 USA CANADA
prices are in EUR
ref
part #
description
quantity
21066
21066026
ref: 21066
REGULATOR-VOLTAGE
21066026
€ 13.00
26001
260011248
ref: 26001
RESERVE LIGHT HARNESS
€ 11.50
26001A
260011305
ref: 26001A
HARNESS,MAIN
€ 133.50
26001B
260011459
ref: 26001B
HARNESS, MAIN
€ 192.00
26001C
26002063
ref: 26001C
WIRING HARNESS, REAR
26002063
€ 20.00
26004
260041011
ref: 26004
FUSE-ASSY
260041011
€ 72.00
26004A
260041014
ref: 26004A
FUSE-ASSY,ACCESSORY
260041014
€ 47.00
26006
26006003
ref: 26006
FUSE 10A
26006003
€ 3.00
26006A
260061002
ref: 26006A
FUSE,10A,L=30M/M
260061002
€ 3.00
26006B
260061005
ref: 26006B
FUSE,30A,L=25M/M
260061005
€ 3.00
26011
26011095
ref: 26011
WIRE-LEAD,L=285
26011095
€ 8.00
26011A
260111100
ref: 26011A
WIRE-LEAD,ACCESSORY G
260111100
€ 7.00
26011B
260111118
ref: 26011B
WIRE-LEAD,BATTERY,(+)
260111118
€ 28.50
26011C
260111120
ref: 26011C
WIRE-LEAD,BATTERY,(+)
260111120
€ 28.50
26011D
260111124
ref: 26011D
WIRE-LEAD,BATTERY,(-)
260111124
€ 28.50
26012
260121039
ref: 26012
BATTERY,12V18AH,YB18L
€ 115.50
27002
27002011
ref: 27002
RELAY-ASSY,TURN SIGNA
27002011
€ 69.50
27002A
27002016
ref: 27002A
RELAY-ASSY,HAZARD
€ 26.50
27003
270031064
ref: 27003
HORN,DOUBLE,F.BLACK
€ 90.00
27010
270101024
ref: 27010
SWITCH,RESERV LIGHTIN
270101024
€ 149.00
27010A
270101048
ref: 27010A
SWITCH,TURN SIGNAL OP
€ 156.00
27010B
270101079
ref: 27010B
SWITCH,TURN SIGNAL OP
€ 112.00
92001
92001137
ref: 92001
BOLT,HEX HEAD,6M/M
92001137
€ 4.00
92037
920371069
ref: 92037
CLAMP,L=60
920371069
€ 1.50
92037A
920371163
ref: 92037A
CLAMP,HARNESS,REAR
920371163
€ 4.50
92059
920591150
ref: 92059
TUBE,8X9X200
€ 3.00
92072
92072031
ref: 92072
BAND,MIDDLE
92072031
€ 3.00
92072A
92072032
ref: 92072A
BAND,LONG
92072032
€ 3.00
92072B
92072056
ref: 92072B
BAND,RUBBER
92072056
€ 3.00
110
112B0622
ref: 110
BOLT, 6X22
€ 2.50
115
115C0816
ref: 115
BOLT-SMALL,8X16,BLACK
115C0816
€ 2.00
220
220B0620
ref: 220
SCREW-PAN HEAD,6X20
220B0620
€ 2.50
410
410B0600
ref: 410
WASHER-PLAIN-SMALL,6M
410B0600
€ 0.50
411
411B0600
ref: 411
WASHER-PLAIN,6MM
411B0600
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
461F0600
€ 0.50
461A
461K0800
ref: 461A
WASHER-SPRING,8MM,BLA
461K0800
€ 1.50
