CARBURETOR PARTS
KZ1100D2 SPECTRE 1983 USA CANADA

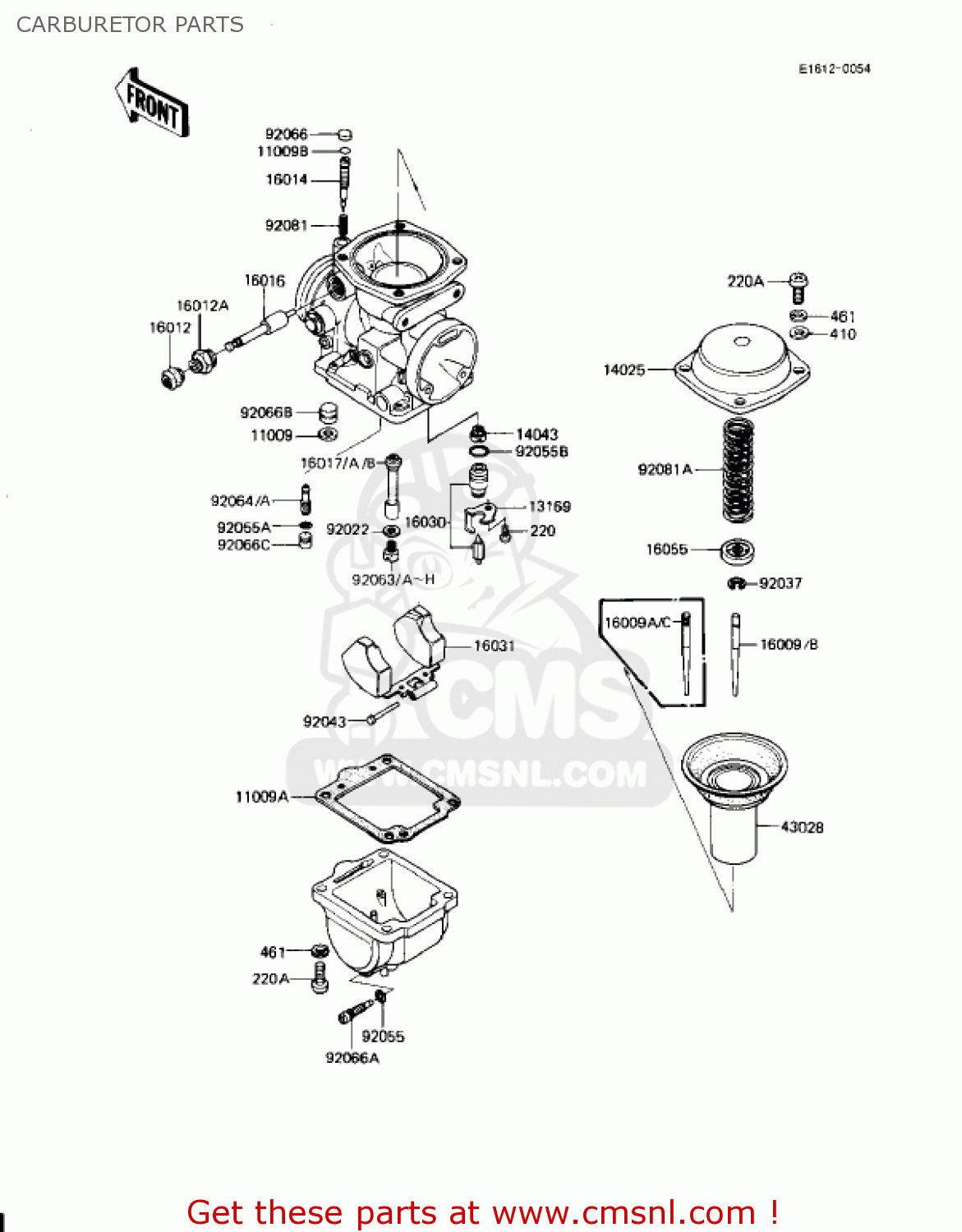

Carburetor parts diagram KZ1100D2 SPECTRE 1983 USA CANADA
CARBURETOR PARTS KZ1100D2 SPECTRE 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091240
ref: 11009
GASKET (NAS)
€ 3.50
11009A
110091241
ref: 11009A
110091241
11009B
16038022
ref: 11009B
GASKET,O-RING
€ 4.50
13169
131691482
ref: 13169
PLATE,FLOAT VALVE
€ 4.00
14025
140251527
ref: 14025
MIXING CHAMBER TOP
€ 71.00
14043
140431010
ref: 14043
FILTER,FLOAT VALVE
€ 11.00
16009
160091107
ref: 16009
US
JET,NEEDLE
€ 20.00
16009A
160091108
ref: 16009A
CN
*** N.L.A.*** (Canada)
€ 0.00
16009B
160091131
ref: 16009B
US
JET,NEEDLE,#5CF59
€ 20.50
16009C
160091132
ref: 16009C
CN
NEEDLE-JET,5CF58
€ 15.00
16012
160121010
ref: 16012
CAP-STARTER PLUNGER,R
€ 17.00
16012A
160121011
ref: 16012A
CAP-STARTER PLUNGER
€ 10.50
16014
160141014
ref: 16014
SCREW-PILOT AIR
€ 18.00
16016
160161019
ref: 16016
PLUNGER
€ 34.00
16017
160171086
ref: 16017
US
JET,NEEDLE
€ 24.50
16017A
160171087
ref: 16017A
CN
JET-NEEDLE
€ 27.50
16017B
160171119
ref: 16017B
JET-NEEDLE,#AY-2
€ 21.00
16030
160301016
ref: 16030
VALVE-FLOAT,2.5
€ 43.00
16031
160311013
ref: 16031
FLOAT
€ 46.00
16055
16055010
ref: 16055
PLATE,NEEDLE
€ 7.00
43028
430281025
ref: 43028
DIAPHRAGM,VALVE
€ 173.50
92022
16034001
ref: 92022
WASHER-MAIN JET
€ 2.50
92037
16008014
ref: 92037
CLAMP,E-TYPE
€ 5.50
92043
16032008
ref: 92043
PIN,FLOAT
€ 4.00
92055
92055044
ref: 92055
'O' RING
€ 7.00
92055A
920551059
ref: 92055A
RING-O,CHECK VALVE
€ 7.50
92055B
920551105
ref: 92055B
RING-0
€ 3.00
92063
920631100
ref: 92063
(RACING USE ONLY)
JET-MAIN,#A127.5
€ 9.50
92063A
920631101
ref: 92063A
(RACING USE ONLY)
JET-MAIN,#A122.5
€ 9.50
92063B
920631102
ref: 92063B
JET-MAIN,#A125
€ 9.50
92063C
920631102
ref: 92063C
(RACING USE ONLY)
JET-MAIN,#A125
€ 9.50
92063D
920631103
ref: 92063D
(RACING USE ONLY)
JET-MAIN,#A130
€ 9.50
92063E
920631106
ref: 92063E
JET-MAIN,#A120
€ 11.50
92063F
920631106
ref: 92063F
(RACING USE ONLY)
JET-MAIN,#A120
€ 11.50
92063G
920631107
ref: 92063G
(RACING USE ONLY)
JET-MAIN,#A117.5
€ 11.50
92063H
920631109
ref: 92063H
(RACING USE ONLY)
JET-MAIN,#A115
€ 10.00
92064
920641036
ref: 92064
JET-PILOT,#A37.5
€ 13.50
92064A
920641053
ref: 92064A
JET,PILOT,#A40.0
€ 15.00
92066
920661051
ref: 92066
US
PLUG,PILOT AIR SCREW,
€ 3.00
92066A
920661064
ref: 92066A
SCREW,DRAIN
€ 8.50
92066B
920661086
ref: 92066B
PLUG,CARBURETOR
€ 2.00
92066C
920661087
ref: 92066C
PLUG,PILOT JET
€ 4.00
92081
16022016
ref: 92081
SPRING, PILOT SCREW
€ 6.00
92081A
920811363
ref: 92081A
SPRING,DPHRGM VALVE
€ 16.00
220
220B0406
ref: 220
SCREW-PAN-CROS,4X6
€ 2.50
220A
220C0516
ref: 220A
SCREW-PAN-CROS
€ 0.50
410
410F0500
ref: 410
WASHER-PLAIN-SMALL,5M
€ 0.50
461
461K0500
ref: 461
WASHER-SPRING,5MM,BLA
€ 0.50
