HEADLIGHT/PURSUITLIGHTS ('78 C1/

KZ1000C2 POLICE 1000 1979 USA CANADA

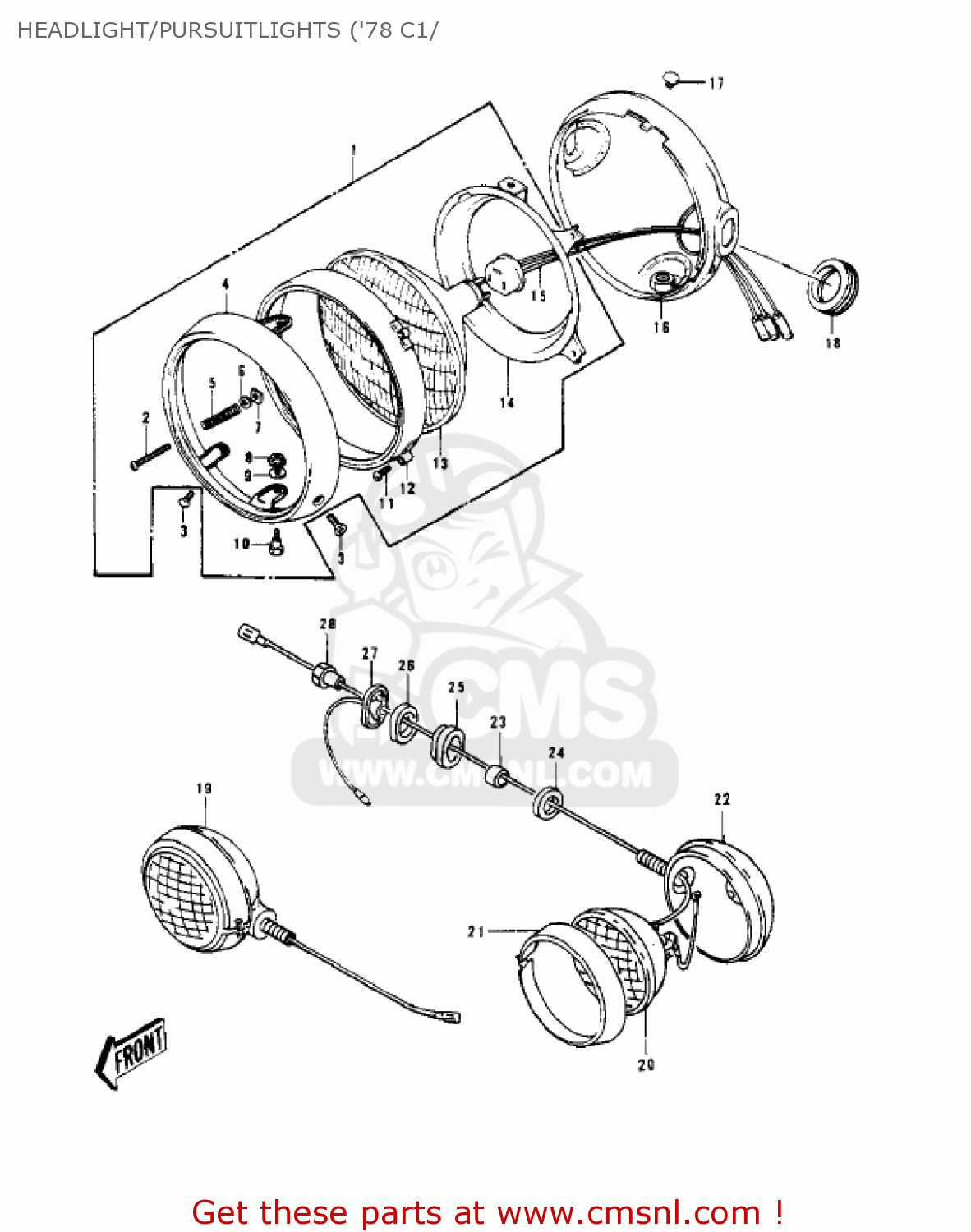

Headlight/pursuitlights ('78 c1/ diagram KZ1000C2 POLICE 1000 1979 USA CANADA

HEADLIGHT/PURSUITLIGHTS ('78 C1/ KZ1000C2 POLICE 1000 1979 USA CANADA

HEADLIGHT/PURSUITLIGHTS ('78 C1/ KZ1000C2 POLICE 1000 1979 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

23003017
ref: 1

LAMP UNIT, HEAD

€ 429.00

1

230041009
ref: 1
KZ1000-C1A

HEADLAMP,UNIT

€ 90.00

2

23019021
ref: 2

SCREW-FORCUS ADJUST

€ 3.00

3

23019022
ref: 3

SCREW-SPECIAL,5X14

€ 1.50

4

23006038
ref: 4

RIM-LAMP

€ 56.50

5

23014005
ref: 5

SPRING-FOCUS ADJUST

€ 2.50

6

23021004
ref: 6

WASHER,4.1X8X0.8

€ 2.00

7

23020018
ref: 7

NUT,4MM,FOCUS ADJUST

€ 3.00

8

23020023
ref: 8

NUT,5MM

€ 3.00

9

23021012
ref: 9

WASHER

€ 3.00

10

23019023
ref: 10

SCREW-PAN HEAD,5X12

€ 3.50

11

220B0312
ref: 11

SCREW-PAN CROS,3X12

€ 2.00

12

23072001
ref: 12

RETAINER,HEAD LAMP

€ 26.00

13

23007041
ref: 13

LENS-COMP,001-1014 MA

€ 102.00

13

230071006
ref: 13
KZ1000-C1A

SEALED BEAM UNIT

€ 74.50

14

23074001
ref: 14

HOLDER,HEAD LAMP

€ 28.00

15

23008037
ref: 15

SOCKET-ASSY,HEAD LAMP

€ 12.50

16

23005101521
ref: 16
FLAT BLACK

BODY-COMP-HEAD LAMP,F

€ 136.50

17

92074006
ref: 17

PLUG,FENDER,RR,12X1

€ 4.00

18

920711008
ref: 18

GROMMET

€ 4.00

19

230161003
ref: 19

PURSUIT LAMP ASSEMBLY,RED

€ 75.00

20

230071001
ref: 20
STD

SEAL BEAM, PRSUT, RED

€ 45.50

20

230071002
ref: 20
OPT

PURSUIT SEALED BEAM,BLUE

€ 27.50

20

230071003
ref: 20
OPT

SEAL BEAM,PRSUT,AMBER

€ 55.00

21

230061001
ref: 21

PURSUIT LAMP RIM

€ 12.50

22

280051001
ref: 22

PURSUIT LAMP BODY

€ 28.50

23

920271026
ref: 23

PURSUIT LAMP COLLAR

€ 3.00

24

920751016
ref: 24

PURSUIT DAMPER

€ 2.00

25

23066015
ref: 25

DAMPER

€ 4.50

26

23066016
ref: 26

DAMPER

€ 4.50

27

920274001
ref: 27

PURSUIT LAMP COLLAR

€ 5.00

28

920154001
ref: 28

PURSUIT LAMP NUT

€ 4.50
