CARBURETOR ASSY ('79-'81 C2/C3/C

KZ1000C2 POLICE 1000 1979 USA CANADA

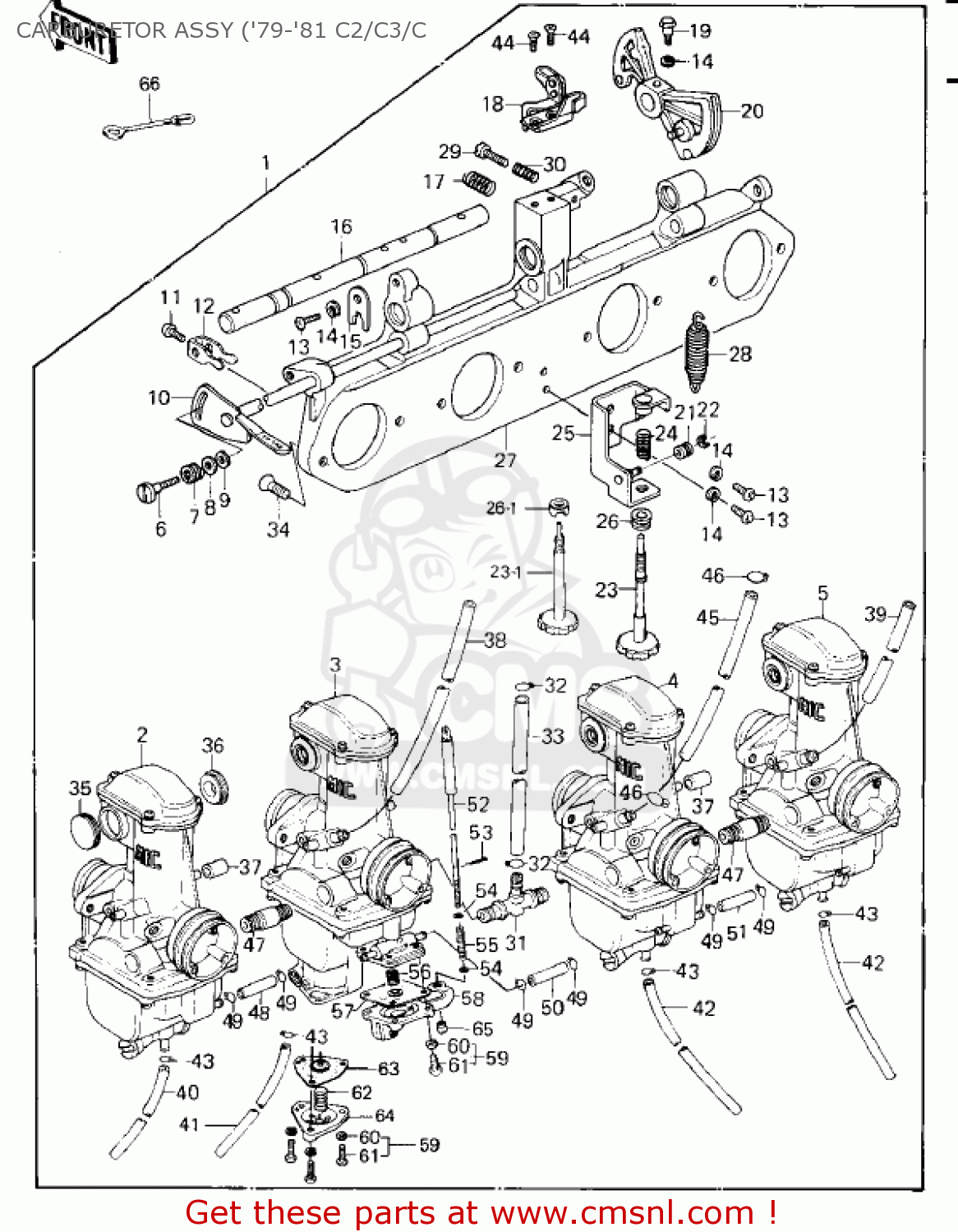

Carburetor assy ('79-'81 c2/c3/c diagram KZ1000C2 POLICE 1000 1979 USA CANADA

CARBURETOR ASSY ('79-'81 C2/C3/C KZ1000C2 POLICE 1000 1979 USA CANADA
CARBURETOR ASSY ('79-'81 C2/C3/C KZ1000C2 POLICE 1000 1979 USA CANADA
CARBURETOR ASSY ('79-'81 C2/C3/C KZ1000C2 POLICE 1000 1979 USA CANADA
prices are in EUR
ref
part #
description
quantity
1
160011066
ref: 1
CARBURETOR ASSEMBLY
€ 855.00
1
160011201
ref: 1
CARBURETOR ASSEMBLY
€ 752.50
2
160011133
ref: 2
CARBURETOR,OUTSIDE,LH
€ 326.50
2
160011227
ref: 2
CARBURETOR,OUTSIDE,LH
€ 326.50
3
160011134
ref: 3
INCLUDES REF. # 56-6
CARBURETOR,INSIDE,LH
€ 267.00
3
160011228
ref: 3
INCLUDES REF. # 56-6
CARBURETOR,INSIDE,LH
€ 310.50
4
160011135
ref: 4
CARBURETOR,INSIDE,RH
€ 326.50
4
160011229
ref: 4
CARBURETOR,INSIDE,RH
€ 253.50
5
160011136
ref: 5
CARBURETOR,OUTSIDE,RH
€ 266.50
5
160011230
ref: 5
CARBURETOR,OUTSIDE,RH
€ 253.50
6
16046005
ref: 6
SCREW
€ 4.50
7
16040009
ref: 7
SPRING,F
16040009
€ 6.50
8
16039020
ref: 8
STEEL
WASHER,PLAIN
16039020
€ 3.50
8
410B0500
ref: 8
STEEL
WASHER-PLAIN-SMALL,5M
410B0500
€ 0.50
9
16039019
ref: 9
NYLON
WASHER-PLAIN
16039019
€ 3.00
10
16041021
ref: 10
SHAFT,STARTER PLUNGER
€ 37.50
11
16046007
ref: 11
SCREW,PAN HEAD,5X7
€ 6.50
12
131681026
ref: 12
LEVER,STARTER PLUNGER
131681026
€ 13.50
13
220B0514
ref: 13
ACREW-PAN HEAD,5X14
220B0514
€ 2.50
14
461F0500
ref: 14
WASHER-SPRING,5MM
461F0500
€ 0.50
15
16055012
ref: 15
PLATE,SHAFT STOPPER
16055012
€ 7.00
16
16041017
ref: 16
SHAFT,CARB CONNECTION
€ 47.50
17
16040022
ref: 17
SPRING,CABLE PLY BKT
16040022
€ 6.00
18
16077017
ref: 18
BRACKET,THROTTLE CABL
16077017
€ 41.00
19
16067006
ref: 19
BOLT-HEX HEAD,5X14
16067006
€ 10.50
20
132361015
ref: 20
THROTTLE CABLE PULLEY
132361015
€ 36.50
21
16073016
ref: 21
RING
€ 8.00
22
482K3000
ref: 22
CIRCLIP-TYPE-E,3MM
482K3000
€ 2.00
23
160211006
ref: 23
SCREW,THROTTLE STOP
160211006
€ 18.50
23-1
160211020
ref: 23-1
SCREW,THROTTLE STOP
€ 17.50
24
16022017
ref: 24
SPRING, THROTTLE STOP
16022017
€ 4.50
24
920811200
ref: 24
SPRING,THROTT STP SCR
920811200
€ 5.50
25
110341185
ref: 25
BRACKET,THROTTLE CABL
€ 27.00
25
110341667
ref: 25
BRACKET,THROTT CBL PL
€ 23.00
26
920281071
ref: 26
BUSHING,IDLING ADJUST
€ 4.50
26-1
920281071
ref: 26-1
BUSHING,IDLING ADJUST
€ 4.50
27
160651009
ref: 27
HOLDER,CARBURETOR MOT
€ 103.00
28
920811028
ref: 28
SPRING,THORTTLE PULLY
920811028
€ 41.00
29
16021032
ref: 29
SCREW
€ 4.00
29
160211011
ref: 29
SCREW,ADJUSTER
€ 7.00
30
16022010
ref: 30
SPRING,THROTTLE ADJST
€ 4.50
31
920051010
ref: 31
NIPPLE,FUEL HOSE
920051010
€ 19.50
32
92037056
ref: 32
CLAMP,FUEL TUBE
92037056
€ 3.00
32
920371184
ref: 32
CLAMP,HOSE
€ 1.00
33
920591044
ref: 33
HOSE,FEL,6.5X11.5X160
920591044
€ 21.00
33
920591123
ref: 33
TUBE,7.5X12.5X225
€ 17.00
34
16033029
ref: 34
SCREW,PAN HEAD,6X14
16033029
€ 3.00
34
221B0614
ref: 34
SCREW-CNTSNK HD,6X14
€ 2.50
35
16039042
ref: 35
CAP,RUBBER
16039042
€ 9.00
36
92071104
ref: 36
GROMMET,CARBURETOR
92071104
€ 16.00
37
92059141
ref: 37
HOSE, 6X11.5X16
92059141
€ 9.00
38
920591028
ref: 38
HOSE,AIR VENT,5X8X550
€ 13.00
38
920591028
ref: 38
HOSE,AIR VENT,5X8X550
€ 13.00
39
920591028
ref: 39
HOSE,AIR VENT,5X8X550
€ 13.00
39
920591028
ref: 39
HOSE,AIR VENT,5X8X550
€ 13.00
40
92059147
ref: 40
HOSE,FUEL OVERFLOW
92059147
€ 17.50
41
92059134
ref: 41
HOSE,OVERFLOW
92059134
€ 17.50
42
92059134
ref: 42
HOSE,OVERFLOW
92059134
€ 17.50
43
92037178
ref: 43
CLAMP
92037178
€ 7.00
44
221B0510A
ref: 44
SCREW-CNTSNK HD,5X10
221B0510A
€ 2.50
45
920591023
ref: 45
HOSE,FUEL TAP DIAPHRA
€ 17.00
46
92037072
ref: 46
CLAMP,TUBE
92037072
€ 4.00
47
920051009
ref: 47
FITTING,FUEL TUBE
920051009
€ 36.50
48
920591072
ref: 48
TUBE,3.5X7.5X47.5
€ 7.00
49
920371124
ref: 49
CLAMP,TUBE
920371124
€ 4.00
50
920591071
ref: 50
TUBE,
920591071
€ 14.00
51
920591072
ref: 51
TUBE,3.5X7.5X47.5
€ 7.00
52
461021007
ref: 52
INCLUDES REF. # 53
PUMP ROD ASSEMBLY
€ 24.50
52
461021013
ref: 52
INCLUDES REF. # 53
PUMP ROD ASSEMBLY
€ 24.00
53
550D1006
ref: 53
COTTER PIN,1.0X6
€ 2.00
54
920221138
ref: 54
PUMP ROD WASHER
€ 2.00
55
920811138
ref: 55
SPRING, PUMP ROD
920811138
€ 4.50
56
920811139
ref: 56
PUMP DIAPHRAGM SPRING
920811139
€ 2.00
57
430281012
ref: 57
DIAPHRAGM,PUMP
430281012
€ 64.50
58
140251139
ref: 58
PUMP COVER ASSEMBLY
140251139
€ 40.50
59
223B0414
ref: 59
SCREW PAN-WS-CROS
€ 2.50
59
223B0414
ref: 59
SCREW PAN-WS-CROS
€ 2.50
60
461F0400
ref: 60
WASHER-SPRING,4MM
461F0400
€ 0.50
60
461F0400
ref: 60
WASHER-SPRING,4MM
461F0400
€ 0.50
61
220B0414
ref: 61
SCREW-PAN-CROS
220B0414
€ 2.00
61
220B0414
ref: 61
SCREW-PAN-CROS
220B0414
€ 2.00
62
920811137
ref: 62
SENSOR DIAPHRAGM SPRING
920811137
€ 2.50
63
430281010
ref: 63
DIAPHRAGM,SENSOR
430281010
€ 86.50
64
140251121
ref: 64
COVER,SENSOR CARBURET
140251121
€ 19.00
65
920151075
ref: 65
NUT, PUMP ROD
920151075
€ 5.50
66
92037134
ref: 66
CLAMP,OVER FLOW PIPE
92037134
€ 7.50
