FRONT FORK (KZ1000-C2/C3)

KZ1000C2 POLICE 1000 1979 USA CANADA

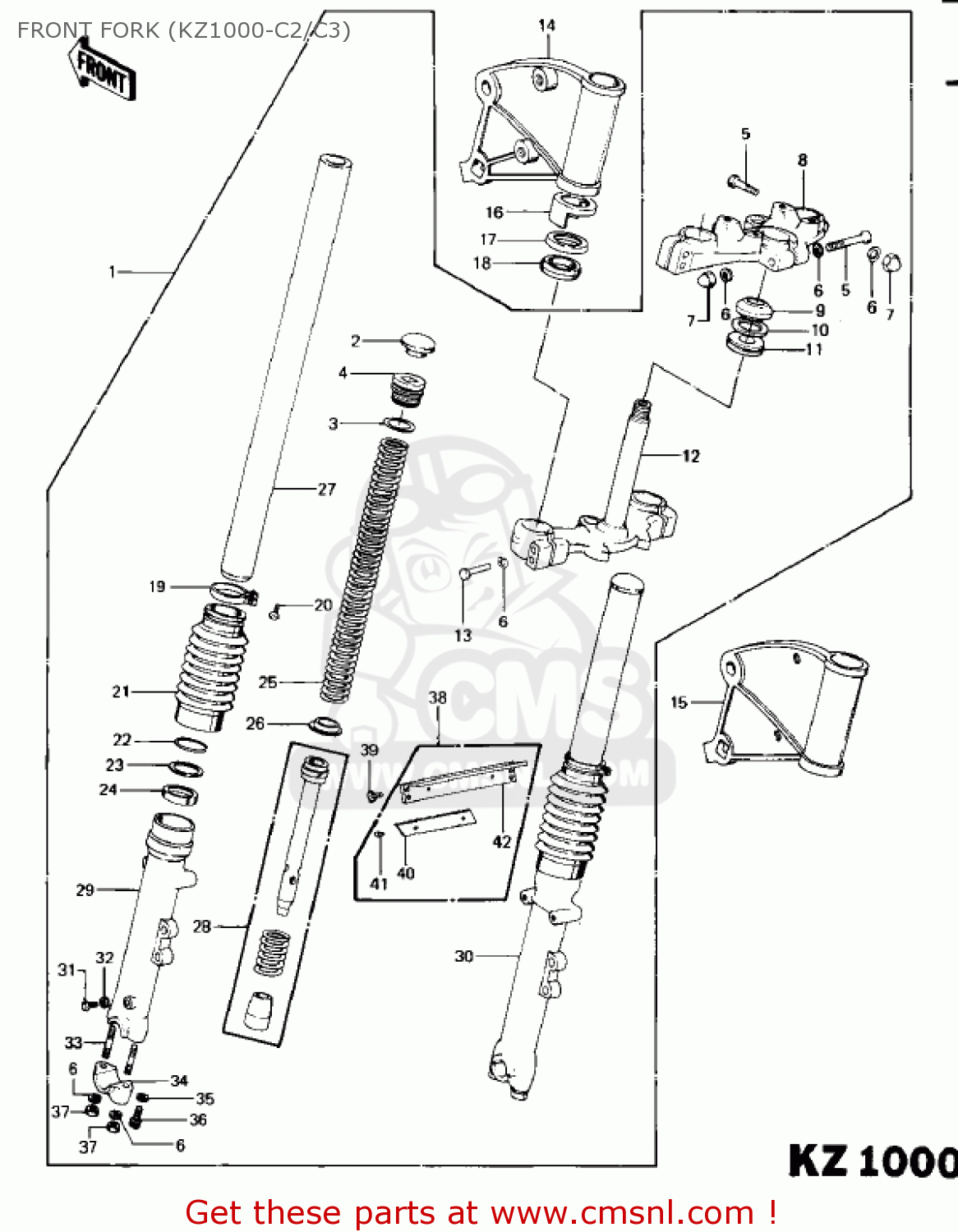

Front fork (kz1000-c2/c3) diagram KZ1000C2 POLICE 1000 1979 USA CANADA

FRONT FORK (KZ1000-C2/C3) KZ1000C2 POLICE 1000 1979 USA CANADA

FRONT FORK (KZ1000-C2/C3) KZ1000C2 POLICE 1000 1979 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

440014002
ref: 1
FORK COVERS NOT INCL

FRONT FORK

€ 953.00

2

110121018
ref: 2

CAP,RUBBER

€ 9.00

3

920551012
ref: 3

RING-O,FORK TOP

€ 5.00

4

440291046
ref: 4

SEAT-FORK SPRING

€ 15.00

5

44041038
ref: 5

BOLT-HEX HEAD,8X55

€ 5.50

6

461F0800
ref: 6

WASHER-SPRING,8MM

€ 0.50

7

92020007
ref: 7

NUT,CAP,8MM

€ 3.50

7

323N0800
ref: 7

NUT-CAP-SMALL,8MM

€ 2.50

8

440391003
ref: 8

STEERING STEM HEAD

€ 274.50

9

92047012
ref: 9

CONE-STRNG STM BRNG

€ 14.50

10

92022231
ref: 10

WASHER,PLAIN

€ 3.00

11

92056003
ref: 11

OIL SEAL,STEERING STM

€ 6.00

12

440371027
ref: 12

STEERING STEM

€ 358.00

13

115G0840
ref: 13

115G0840

14

440331004
ref: 14

FORK COVER,LH

€ 70.50

15

440331003
ref: 15

FORK COVER,RH

€ 67.00

16

131691019
ref: 16

FORK COVER GUIDE

€ 22.50

17

13169102
ref: 17

UNAVAILABLE IN PRICE BOOK

€ 0.00

18

110091015
ref: 18

GASKET,FORK COVER (NAS)

€ 7.00

19

920721046
ref: 19

BAND,BOOT

€ 6.50

20

220B0420
ref: 20

SCREW-PAN-CROS

€ 2.00

21

490161006
ref: 21

FORK BOOT

€ 49.00

22

920331002
ref: 22

CIRCLIP

€ 3.00

23

920221013
ref: 23

WASHER

€ 9.00

24

920491005
ref: 24

OIL SEAL

€ 14.50

25

440261002
ref: 25

FORK SPRING

€ 47.50

26

440281001
ref: 26

GUID,FORK SPRING

€ 5.50

27

440131002
ref: 27

FORK INNER TUBE

€ 191.50

28

440221001
ref: 28

FORK CYLINDER

€ 64.50

29

440051004
ref: 29

FORK OUTER TUBE,LH

€ 303.00

30

440061004
ref: 30

FORK OUTER TUBE,RH

€ 359.50

31

220B0408
ref: 31

SCREW-PAN-CROS

€ 0.50

32

44045002
ref: 32

GASKET,FORK DRAIN PLU (NAS)

€ 3.00

33

920041009
ref: 33

STUD, 8X35

€ 4.00

34

44063014
ref: 34

HOLDER,FRONT AXLE

€ 23.50

35

44045057
ref: 35

GASKET (NAS)

€ 3.00

36

44041040
ref: 36

BOLT-FORK CYLINDER

€ 4.50

37

920151124
ref: 37

NUT,LOCK,8MM

€ 3.50

38

391844001
ref: 38

NAMEPLATE BRACKET ASSEMBLY

€ 30.00

39

222E0612
ref: 39

SCREW OVL CNTSNK 6X12

€ 2.50

40

560141038
ref: 40

EMBLEM,FUEL TANK

€ 36.50

40

560141038
ref: 40

EMBLEM,FUEL TANK

€ 36.50

41

221C0310
ref: 41

SCREW-CSK-CROS

€ 2.00

42

110344014
ref: 42

NAME PLATE BRACKET

€ 30.00
