FUEL TANK ('78 C1/C1A)

KZ1000C2 POLICE 1000 1979 USA CANADA

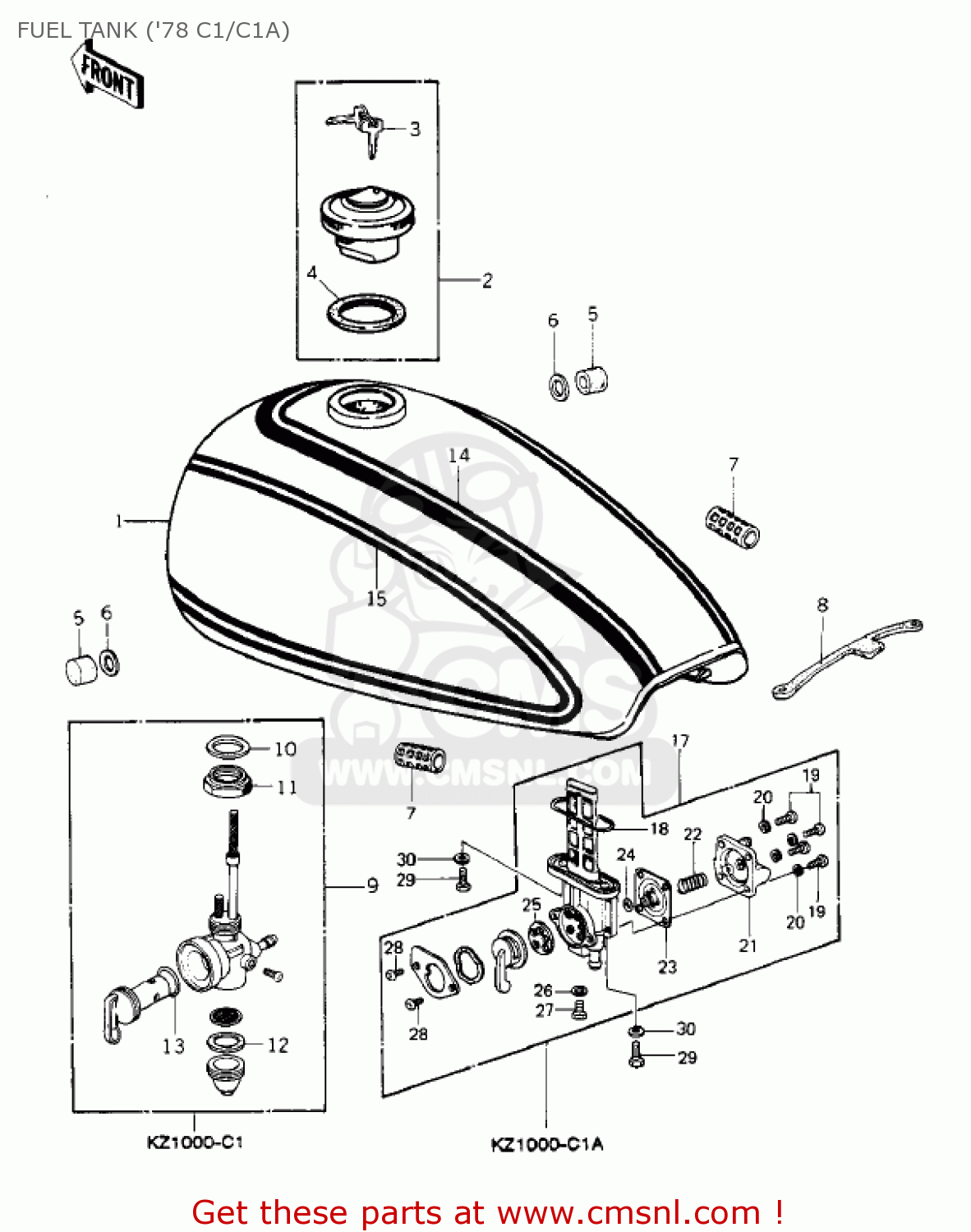

Fuel tank ('78 c1/c1a) diagram KZ1000C2 POLICE 1000 1979 USA CANADA

FUEL TANK ('78 C1/C1A) KZ1000C2 POLICE 1000 1979 USA CANADA

FUEL TANK ('78 C1/C1A) KZ1000C2 POLICE 1000 1979 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

510011168C
ref: 1

FUEL TANK,JET WHITE

€ 895.00

1

5100140018C
ref: 1
KZ1000-C1A

FUEL TANK,JET WHITE

€ 309.00

2

51048006
ref: 2
WITH KEY SET

CAP-ASSY-TANK,FUEL

€ 67.00

3

2700805365
ref: 3

KEY SET,TANK,#165

€ 14.00

3

2700805366
ref: 3

KEY SET,TANK,#166

€ 7.50

3

2700805367
ref: 3

KEY SET,TANK,#167

€ 5.50

3

2700805368
ref: 3

KEY SET,TANK,#168

€ 9.00

3

2700805369
ref: 3

KEY SET,TANK,#169

€ 8.50

4

51059009
ref: 4

GASKET,FUEL TANK CAP (NAS)

€ 6.50

5

92075125
ref: 5
FRONT

DAMPER RUBBER-FL TANK

€ 4.00

6

92022044
ref: 6

WASHER,10.5X26X2.3

€ 2.50

7

92075084
ref: 7
REAR

DAMPER,FUEL TANK

€ 6.50

8

92072042
ref: 8

BAND,FUEL TANK

€ 9.00

9

51023055
ref: 9

TAP-ASSY,FUEL

€ 96.00

10

92065081
ref: 10

GASKET-FUEL COCK JONT (NAS)

€ 3.50

11

51035009
ref: 11

NUT,FUEL COCK JOINT

€ 6.00

12

51037010
ref: 12

GASKET-FUEL COCK CUP (NAS)

€ 3.50

13

670B2010
ref: 13

O RING,10MM

€ 1.00

14

56029194
ref: 14

FUEL TANK DECAL,TOP

€ 62.50

15

56029196
ref: 15

FUEL TANK DECAL,LH

€ 36.50

16

56029195
ref: 16

FUEL TANK DECAL,RH

€ 36.50

17

510231018
ref: 17
KZ1000-C1A

TAP ASSY,FUEL

€ 43.00

18

430581001
ref: 18

RING,FUEL TAP SEAL

€ 8.50

19

220B0412
ref: 19

SCREW-PAN CROS 4X12

€ 0.50

20

461F0400
ref: 20

WASHER-SPRING,4MM

€ 0.50

21

510361001
ref: 21

COVER ASSY,FUEL TAP

€ 25.50

22

920811054
ref: 22

SPRING,DIAPHRAGM

€ 4.00

23

161261011
ref: 23

VALVE,DIAPHRAGM

€ 28.00

24

920551068
ref: 24

RING-O,DIAPHRAGM VALV

€ 13.50

25

110091044
ref: 25

GASKET,FUEL TAP (NAS)

€ 11.50

26

110091045
ref: 26

GASKET,DRAIN BOLT

€ 1.00

27

920011089
ref: 27

BOLT,DRAIN

€ 8.00

28

220B0408
ref: 28

SCREW-PAN-CROS

€ 0.50

29

92001114
ref: 29

BOLT-HEX HEAD,6X16

€ 2.50

30

92022183
ref: 30

WASHER,6.2X11X1.5

€ 2.50
