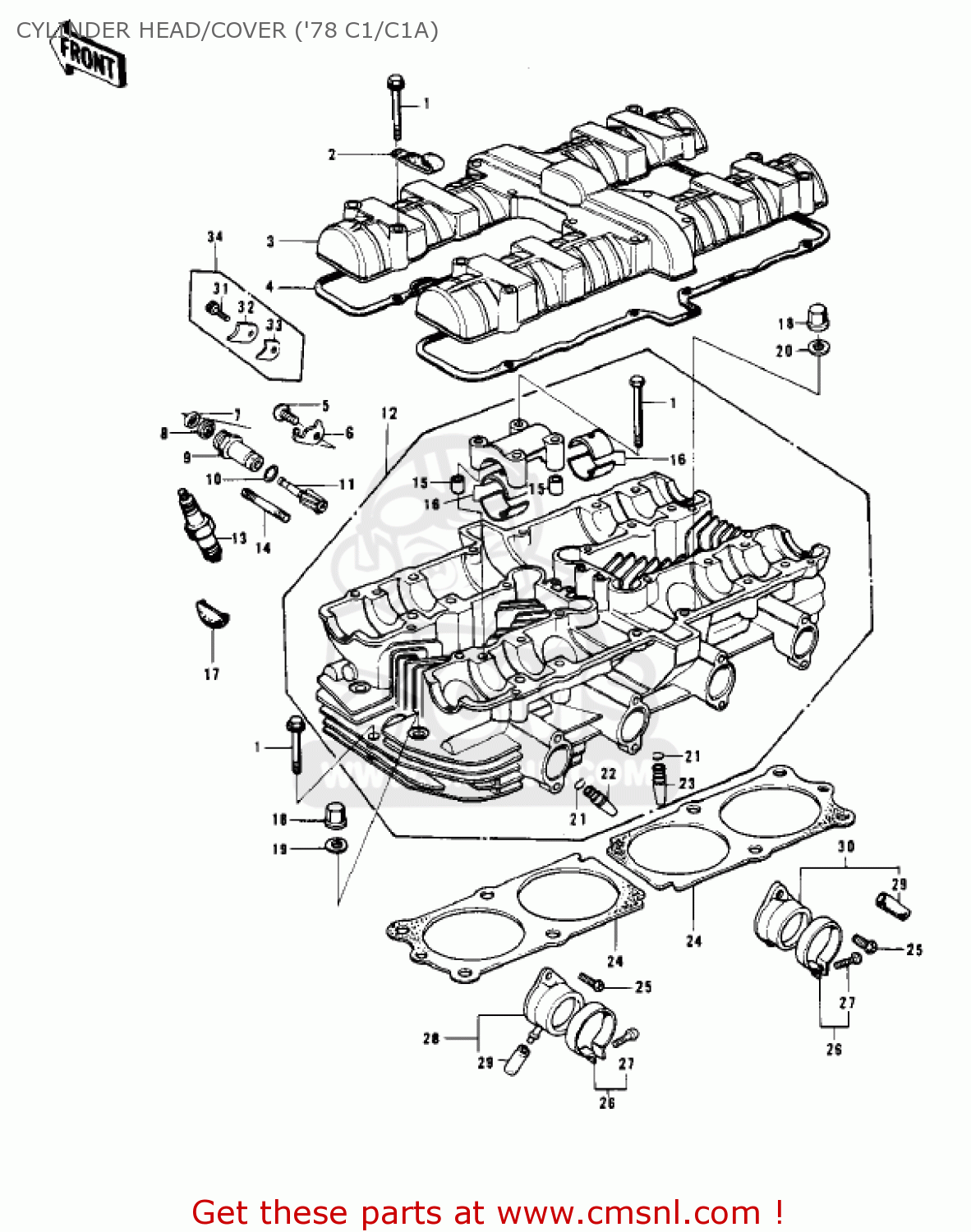

CYLINDER HEAD/COVER ('78 C1/C1A)

KZ1000C2 POLICE 1000 1979 USA CANADA

Cylinder head/cover ('78 c1/c1a) diagram KZ1000C2 POLICE 1000 1979 USA CANADA

CYLINDER HEAD/COVER ('78 C1/C1A) KZ1000C2 POLICE 1000 1979 USA CANADA

CYLINDER HEAD/COVER ('78 C1/C1A) KZ1000C2 POLICE 1000 1979 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

92003092
ref: 1

BOLT-HEX HEAD,6X45

€ 4.50

2

21126008
ref: 2

CLAMP,WIRING HARNESS

€ 3.00

3

110220122H
ref: 3

COVER, CYLINDER HEAD

€ 234.00

4

11023006
ref: 4

GASKET-CYL HEAD COVER (MCA)

€ 99.50

5

220B0610
ref: 5

SCREW-PAN HEAD,6X10

€ 2.00

6

13169015
ref: 6

PLATE

€ 2.50

7

92065103
ref: 7

GASKET,TACHOMETER GER (NAS)

€ 2.50

8

92050075
ref: 8

OIL SEAL,TACHOMETER

€ 7.50

9

92087010
ref: 9

GUIDE,TACHOMETER GEAR

€ 16.50

10

920551149
ref: 10

RING-O,10MM

€ 4.00

11

13223011
ref: 11

GEAR,TACHOMETER, 10T

€ 63.00

12

1100210112H
ref: 12

CYLINDER HEAD,BARREL

€ 1,023.00

13

B8ESA
ref: 13

NGK SPARK-PLUG B8ES

€ 3.00

14

920041069
ref: 14

STUD,8X30

€ 4.50

15

92042007
ref: 15

PIN-DOWEL

€ 4.00

16

13034030
ref: 16

BUSHING,CAMSHAFT

€ 15.00

17

92066017
ref: 17

PLUG,CAMSHAFT,14X7

€ 15.00

18

92015076
ref: 18

NUT,FLANGED CAP,10MM

€ 9.00

19

92022215
ref: 19

WASHER,10.5X22X1.6

€ 6.00

20

411B1000
ref: 20

WASHER-PLAIN,10MM

€ 0.50

21

92036023
ref: 21

CIRCLIP,VALVE GUIDE

€ 0.50

22

12013009
ref: 22

GUIDE-VALVE,INTAKE

€ 18.00

23

490021002
ref: 23

GUIDE,EXHAUST VALVE

€ 16.00

24

11004076
ref: 24

GASKET, CYLINDER HEAD (MCA)

€ 58.50

25

220B0618
ref: 25

SCREW-PAN HEAD,6X18

€ 2.50

26

92037077
ref: 26

CLAMP,HOLDER

€ 7.00

27

92011037
ref: 27

SCREW,PAN HEAD 5X25

€ 2.50

28

16065029
ref: 28

HOLDER,CARBURETOR,LH

€ 67.00

29

92068006
ref: 29

RUBBER PLUG

€ 2.50

30

16065028
ref: 30

HOLDER,CARBURETOR,RH

€ 67.00

31

120P0614
ref: 31

BOLT,6X14

€ 3.00

32

130911008
ref: 32

HOLDER, TACHOMETER

€ 2.50

33

130911009
ref: 33

HOLDER, TACHOMETER

€ 2.50

34

130915001
ref: 34

HOLDER ASSY,TACHOMETR

€ 2.50

35

110124001
ref: 35

TACHOMETER DRIVE CAP,RUBBER

€ 5.50
