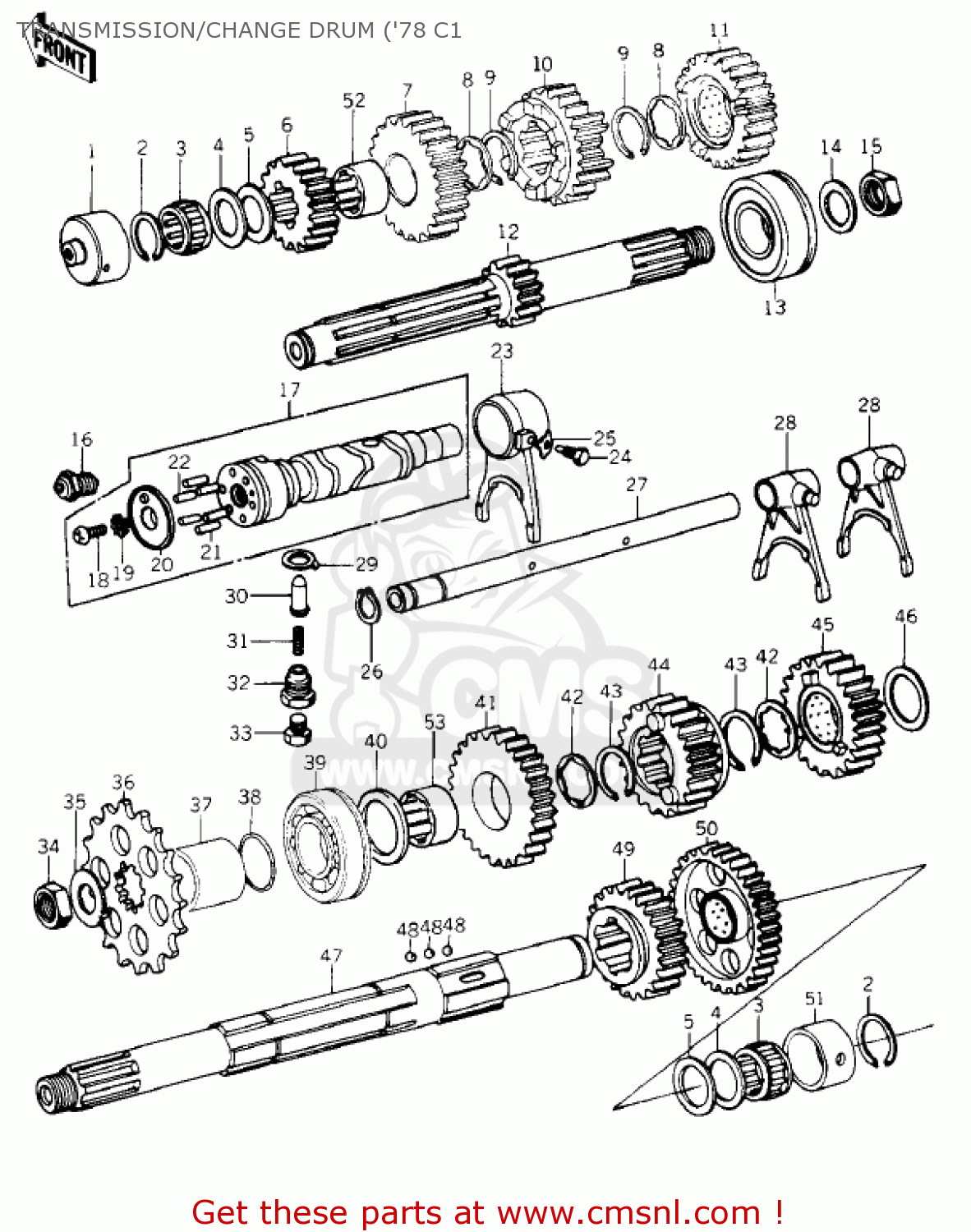

TRANSMISSION/CHANGE DRUM ('78 C1

ref

part #

description

quantity

1

92028122
ref: 1

BUSHING,INPUT SHAFT

€ 54.50

2

92033025
ref: 2

CIRCLIP,25MM

€ 3.00

3

92046031
ref: 3

BEARING-NEEDLE,FWF-22

€ 19.50

4

92022212
ref: 4

WASHER-PLAIN,22MM

€ 6.50

4

92022231
ref: 4
1.2T

WASHER,PLAIN

€ 3.00

5

920261020
ref: 5
1.0T

SPACER,22X35.5X1.0

€ 3.50

6

13130032
ref: 6
1.6T

2ND GEAR-DRIVE SHAFT

€ 114.50

7

13136042
ref: 7
23T

TOP GEAR-DRIVE SHAFT

€ 116.50

8

92024042
ref: 8

WASHER,TOOTHED,26X35.

€ 7.50

9

480J2800
ref: 9

CIRCLIP-TYPE-C,28MM

€ 3.50

10

13132030
ref: 10
21T

3RD GEAR-DRIVE SHAFT

€ 158.50

11

13134016
ref: 11
21T

GEAR INPUT 4TH,21T

€ 156.00

12

13127042
ref: 12
21T

SHAFT,DRIVE 12T

€ 251.00

13

920451028
ref: 13

BEARING-BALL,5305NSH2

€ 135.00

14

92125002
ref: 14

WASHER,SPRING,20MM

€ 8.50

15

92019015
ref: 15

NUT,LOCK,20MM

€ 9.00

16

13151022
ref: 16

SWITCH

€ 20.00

17

132391010
ref: 17

DRUM ASSY,GEAR CHANGE

€ 388.50

18

220B0614
ref: 18

SCREW-PAN HEAD,6X14

€ 2.00

19

464G0600
ref: 19

WASHER-TOOTHED,6MM

€ 2.50

20

13142013
ref: 20

PLATE-GEAR CHNG DRUM

€ 18.50

21

92042014
ref: 21
L=15.8M/M

PIN-GEAR CHANGE DRUM

€ 0.50

22

92042020
ref: 22
L=15.8M/M

PIN-GEAR CHANGE DRUM

€ 3.00

23

13140046
ref: 23

FORK-SHIFT,3RD

€ 124.50

24

92042016
ref: 24

PIN,DOWEL,6X16

€ 3.50

25

92031001
ref: 25

WASHER,LOCK,10MM

€ 7.00

26

480J1200
ref: 26

CIRCLIP-TYPE-C,12MM

€ 0.50

27

13209011
ref: 27

ROD-SHIFT

€ 17.00

28

13140045
ref: 28

FORK-SHIFT,4TH&TOP

€ 190.00

29

92024047
ref: 29

WASHER-LOCK

€ 2.50

30

92043085
ref: 30

PIN

€ 7.00

31

92081106
ref: 31

SPRING

€ 3.00

32

92001112
ref: 32

BOLT-CHG DRUM POSITN

€ 36.50

33

92001119
ref: 33

BOLT

€ 7.00

34

92016028
ref: 34

NUT

€ 9.50

35

92024044
ref: 35

WASHER,CLAW,20.5X36X1

€ 8.00

36

13144062
ref: 36

SPROCKET-OUTPUT,15T

€ 33.00

37

92027288
ref: 37

COLLAR,25X32X23.5

€ 22.50

38

92055035
ref: 38

O RING

€ 3.00

39

92045021
ref: 39

BEARING-BALL,BL305NC3

€ 184.00

40

92022210
ref: 40

WASHER-PLAIN,25MM

€ 4.50

41

13131038
ref: 41

GEAR,OUTPUT 2ND,35T

€ 146.50

42

92024043
ref: 42

WASHER,TOOTHED,30.3X4

€ 8.00

43

480J3000
ref: 43

CIRCLIP-TYPE-C,30MM

€ 3.50

44

131291214
ref: 44
28T

GEAR,OUTPUT TOP,28T

€ 317.50

45

13133031
ref: 45
35T

GEAR,OUTPUT 3RD,35T

€ 169.50

46

92022209
ref: 46

WASHER-PLAIN,30MM

€ 6.50

47

131285006
ref: 47

SHAFT,OUTPUT

€ 165.50

48

600A0600
ref: 48

BALL-STEEL,3/16

€ 0.50

49

13135020
ref: 49
29T

4TH GEAR-OUTPUT SHAFT

€ 102.50

50

13129016
ref: 50
38T

LOW GEAR,OUTPUT SHAFT

€ 71.00

51

92028123
ref: 51

BUSHING,OUTPUT SHAFT

€ 36.50

52

920281124
ref: 52

BUSHING,TOP GEAR

€ 31.00

53

920281005
ref: 53

BUSHING, ZND GEAR

€ 22.50
