CARRIER (KZ1000-C3/C4)

KZ1000C1A POLICE 1000 1978 USA CANADA

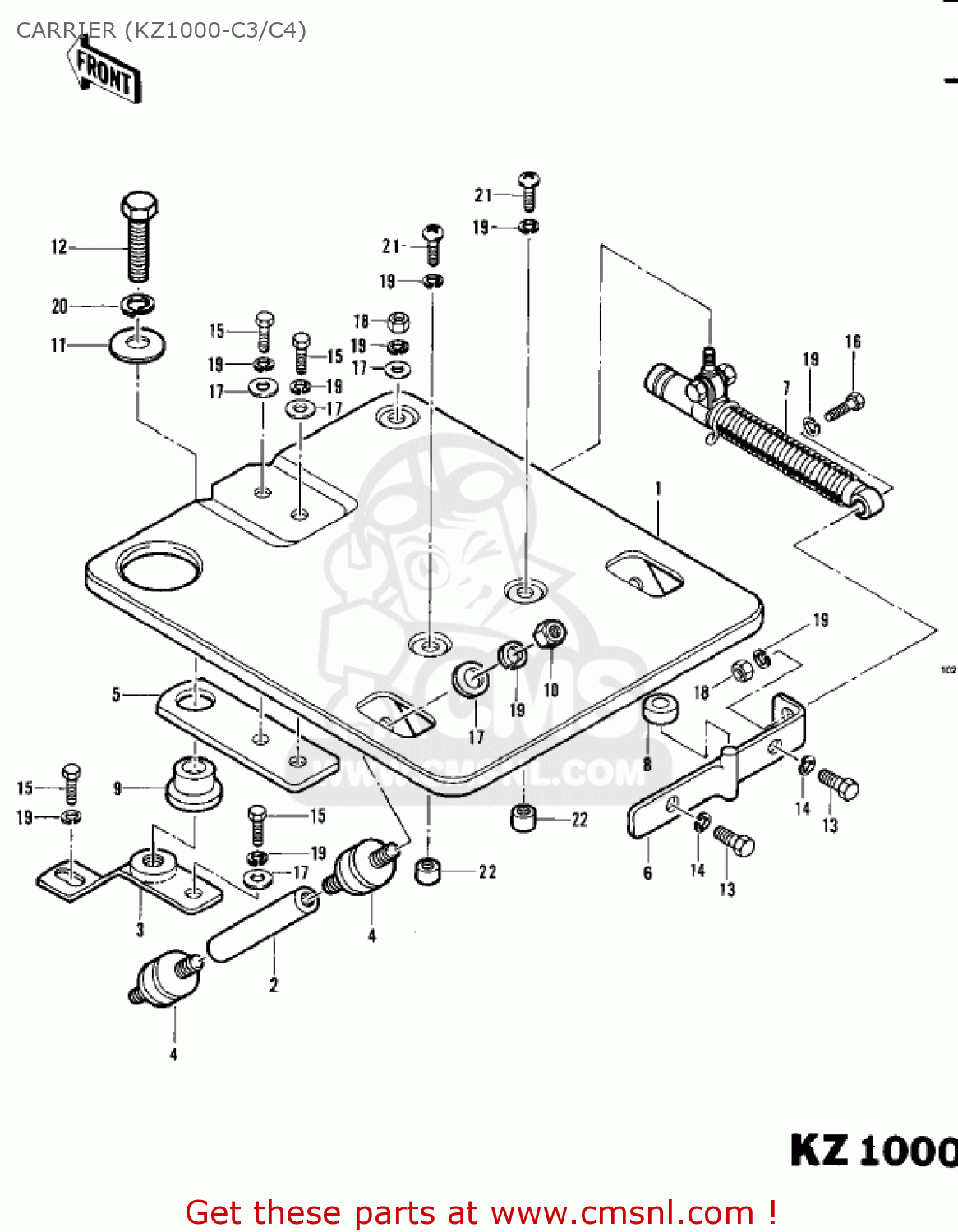

Carrier (kz1000-c3/c4) diagram KZ1000C1A POLICE 1000 1978 USA CANADA

CARRIER (KZ1000-C3/C4) KZ1000C1A POLICE 1000 1978 USA CANADA

CARRIER (KZ1000-C3/C4) KZ1000C1A POLICE 1000 1978 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

530294002
ref: 1

CARRIER

€ 90.50

2

210834003
ref: 2

ARM

€ 6.00

3

110344033
ref: 3

BRACKET

€ 23.50

4

920754013
ref: 4

DAMPER,RUBBER

€ 13.00

5

110344034
ref: 5

BRACKET

€ 22.50

6

320374005
ref: 6

SHOCK ABSORBER BRACKET

€ 7.00

7

450144005
ref: 7

SHOCK ABSORBER,REAR,CARRI

€ 95.50

8

92075203
ref: 8

DAMPER

€ 3.50

9

920754006
ref: 9

DAMPER

€ 18.00

10

342BA1000
ref: 10

UNAVAILABLE IN PRICE BOOK

€ 0.00

11

920224002
ref: 11

WASHER

€ 10.00

12

113B1245A
ref: 12

BOLT,HEX HEAD,12X45

€ 3.50

13

112G0616
ref: 13

BOLT UPSET,6X16

€ 1.00

14

461F0600
ref: 14

WASHER-SPRING,6MM

€ 0.50

15

115G0816
ref: 15

BOLT-HEX,HEAD 8X16

€ 0.50

16

114G0836
ref: 16

BOLT-SMALL,8X36

€ 3.00

17

411B0800
ref: 17

WASHER-PLAIN,8MM

€ 0.50

17

411B0800
ref: 17

WASHER-PLAIN,8MM

€ 0.50

18

317B0800
ref: 18

NUT,8M/M

€ 0.50

18

317B0800
ref: 18

NUT,8M/M

€ 0.50

19

461F0800
ref: 19

WASHER-SPRING,8MM

€ 0.50

19

461F0800
ref: 19

WASHER-SPRING,8MM

€ 0.50

20

461F1200
ref: 20

WASHER-SPRING,12MM

€ 0.50

21

220B0814
ref: 21

SCREW 8X14

€ 2.50

22

130614005
ref: 22

BOSS

€ 1.50
