FRAME/FRAME FITTINGS ('78 C1/C1A

KZ1000C1A POLICE 1000 1978 USA CANADA

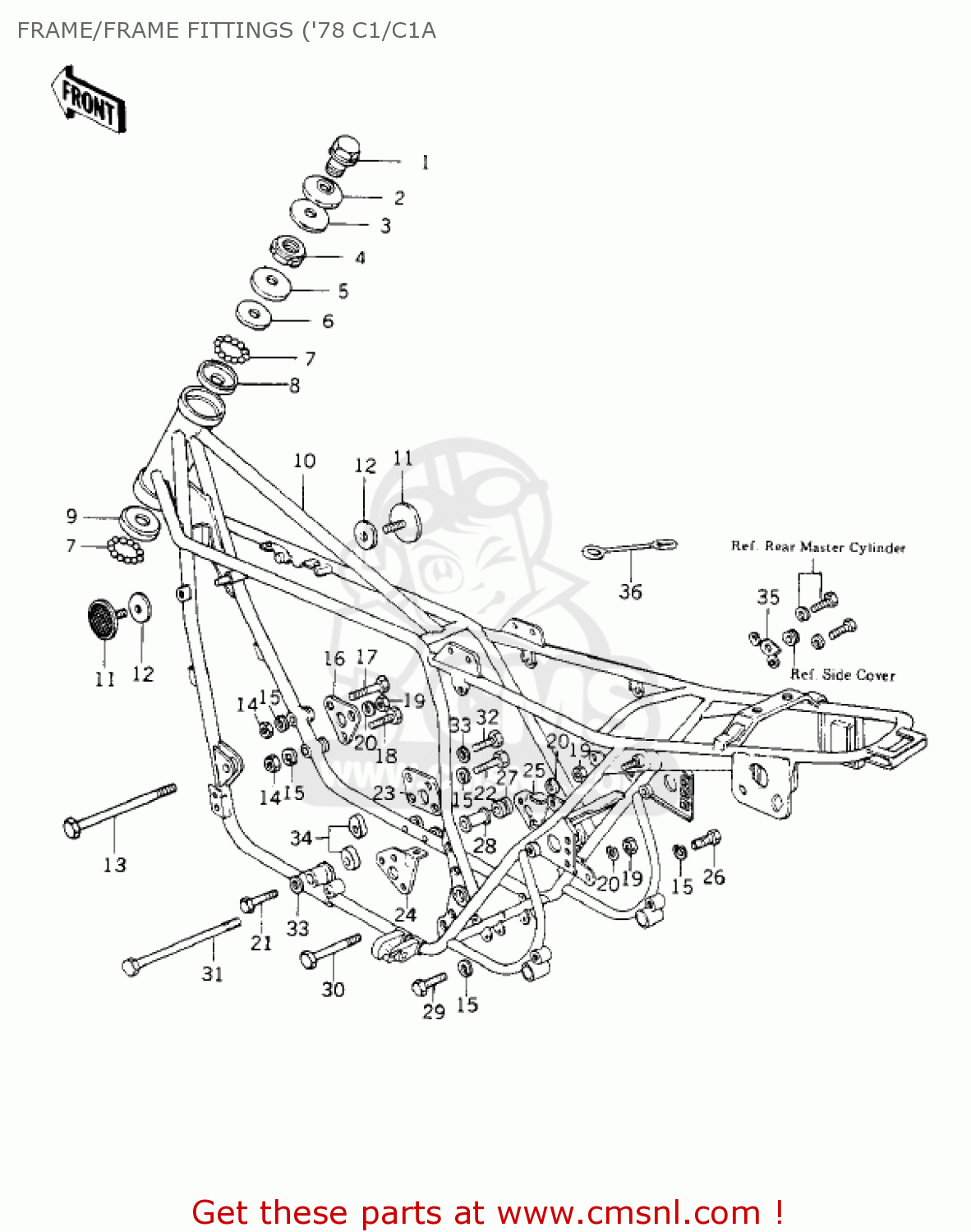

Frame/frame fittings ('78 c1/c1a diagram KZ1000C1A POLICE 1000 1978 USA CANADA

FRAME/FRAME FITTINGS ('78 C1/C1A KZ1000C1A POLICE 1000 1978 USA CANADA

FRAME/FRAME FITTINGS ('78 C1/C1A KZ1000C1A POLICE 1000 1978 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

92007031
ref: 1

BOLT-STEERG STEM HEAD

€ 17.50

2

92022230
ref: 2

WASHER-STEERG STM HD

€ 7.50

3

46100003
ref: 3

WASHER,WAVE

€ 6.50

4

92090007
ref: 4

NUT-STEERING STEM LCK

€ 8.00

5

46098016
ref: 5

CAP,STEERING STEM

€ 4.00

6

92047011
ref: 6

CONE-STRNG STM BRNG

€ 14.50

7

600A0800
ref: 7

BALL-STEEL,1/4

€ 0.50

8

92048006
ref: 8

RACE-STRNG BEARIN-STE

€ 11.50

9

92048008
ref: 9

RACE-STRNG STM BRNG

€ 16.00

10

320021010
ref: 10

FRAME

€ 765.50

11

28012016
ref: 11

REFLECTOR REFLEX

€ 16.00

12

92094011
ref: 12

DAMPER,REFLECTOR

€ 3.00

13

92091022
ref: 13
L = 310 M/M

BOLT-ENGINE MOUNTING

€ 18.50

14

311B0800
ref: 14

NUT,8MM

€ 0.50

15

461F0800
ref: 15

WASHER-SPRING,8MM

€ 0.50

16

32030025
ref: 16

BRACKET-ENGINE,FR

€ 11.50

17

920011397
ref: 17

BOLT,8X63

€ 1.50

18

110G0859
ref: 18

BOLT,HEX HEAD,8X59

€ 3.50

19

92019021
ref: 19

NUT,LOCK,10M/M

€ 2.00

20

461F1000
ref: 20

WASHER-SPRING,10MM

€ 0.50

21

920011262
ref: 21

BOLT,HEX HEAD,12X55

€ 6.00

22

115G0818
ref: 22

BOLT SMALL-UPSET

€ 2.50

23

320291014
ref: 23

ENGINE MOUNT PLATE,FRONT,LOWER

€ 12.50

24

32030066
ref: 24

PLATE, REAR ENGINE

€ 10.50

25

32030067
ref: 25

PLATE, REAR ENGINE

€ 10.50

26

920011578
ref: 26

BOLT,FLANGED,8X40

€ 4.00

27

92027160
ref: 27
L = 31 M/M

COLLAR,L=30.5

€ 7.00

28

92027159
ref: 28
L = 52 M/M

COLLAR-ENG MOUNTING

€ 21.00

29

920011577
ref: 29

BOLT,FLANGED,8X35

€ 2.50

30

92003099
ref: 30
L = 165 M/M

BOLT-ENGINE MOUNTING

€ 16.50

31

92091023
ref: 31
L = 250 M/M

BOLT-ENGINE MOUNTING

€ 15.50

32

920011265
ref: 32

BOLT,HEX HEAD,12X70

€ 4.50

33

461F1200
ref: 33

WASHER-SPRING,12MM

€ 0.50

34

92016045
ref: 34

NUT,12MM

€ 13.50

35

32049101
ref: 35

BRACKET, SIDE COVER

€ 2.50

36

92037134
ref: 36

CLAMP,OVER FLOW PIPE

€ 7.50
