REAR WHEEL/TIRE/HUB/CHAIN ('79-'

KZ1000C1A POLICE 1000 1978 USA CANADA

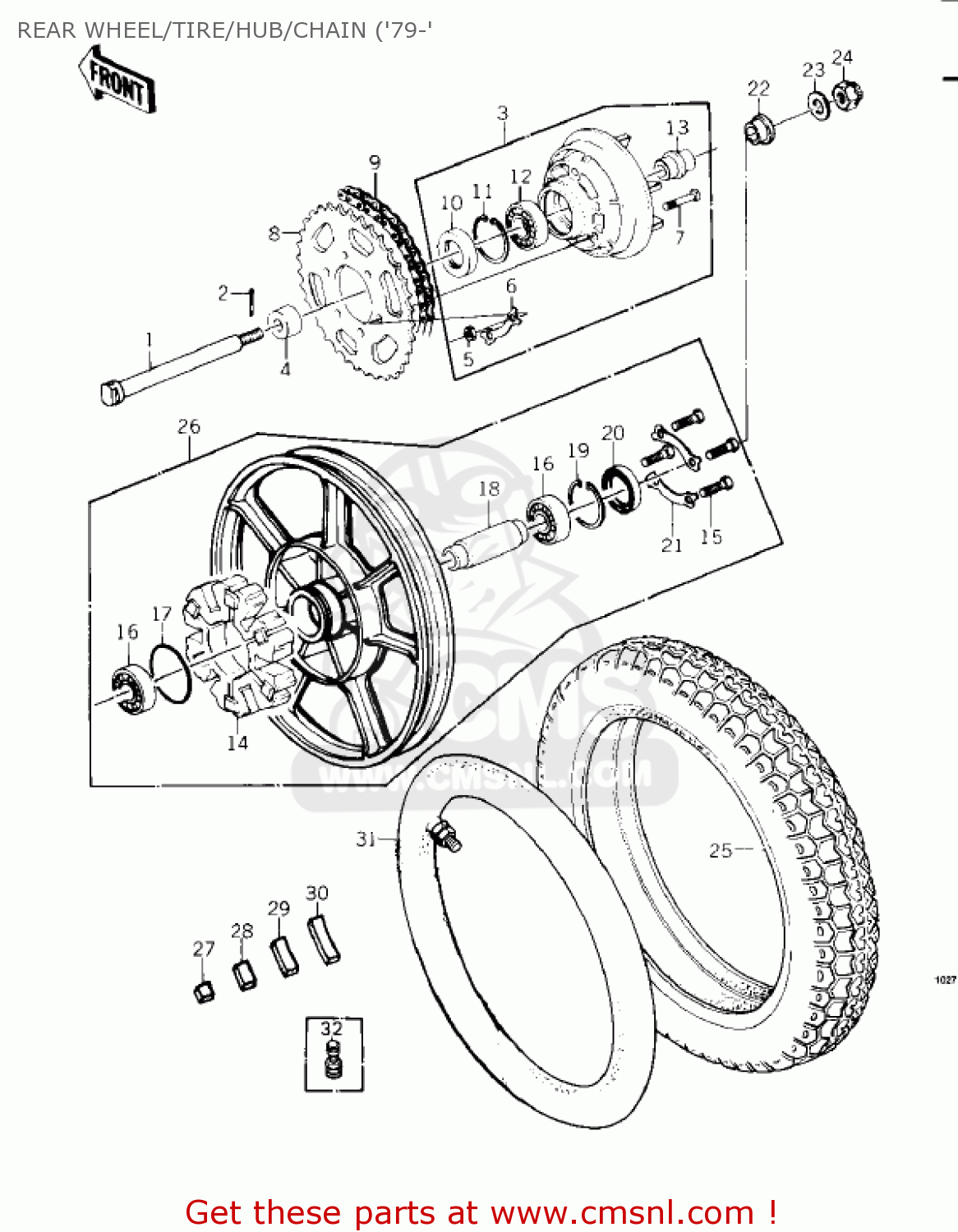

Rear wheel/tire/hub/chain ('79-' diagram KZ1000C1A POLICE 1000 1978 USA CANADA

REAR WHEEL/TIRE/HUB/CHAIN ('79-' KZ1000C1A POLICE 1000 1978 USA CANADA

REAR WHEEL/TIRE/HUB/CHAIN ('79-' KZ1000C1A POLICE 1000 1978 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

42031034
ref: 1

AXLE,RR

€ 87.50

2

550D4035
ref: 2

PIN-COTTER,4.0X35

€ 1.00

3

42008040
ref: 3

COUPLING ASSY,REAR BK

€ 162.50

4

42032071
ref: 4

COLLAR, REAR AXLE

€ 8.00

5

42045005
ref: 5

NUT,10MM

€ 5.00

6

92088007
ref: 6

WASHER,LOCK

€ 8.00

7

92003087
ref: 7

BOLT-RR SPRCKT 10X49

€ 4.00

8

420411005
ref: 8

REAR SPROCKET,37T

€ 79.00

8

420411032
ref: 8

REAR SPROCKET,35T

€ 55.00

9

920571003
ref: 9

DRIVE CHAIN,630X94

€ 152.00

9

92057107
ref: 9

CHAIN ASSY, DRIVE

€ 168.00

10

92050027
ref: 10

OIL SEAL

€ 13.50

11

920331044
ref: 11

CIRCLIP 62 M/M

€ 7.50

12

601B6206
ref: 12

BEARING-BALL,#6206C3

€ 19.50

13

42036033
ref: 13

SLEEVE,REAR COUPLING

€ 25.50

14

42014033
ref: 14

DAMPER,RR HUB SHOCK,1

€ 85.50

15

92001158
ref: 15

BOLT

€ 2.00

16

601B6304ZZ
ref: 16

BEARING-BALL,#6304ZZC

€ 36.00

17

671B2565
ref: 17

O RING,65MM

€ 6.00

18

42010039
ref: 18

COLLAR,FRONT HUB BEAR

€ 10.50

19

920331043
ref: 19

RING,SNAP,56.2M/M

€ 6.00

20

92052006
ref: 20

OIL SEAL WTC35527

€ 6.50

21

92088023
ref: 21

WASHER,LOCK

€ 6.00

22

42032080
ref: 22

COLLAR,L=6

€ 53.50

23

92022248
ref: 23

WASHER,20.3X34X4.5

€ 7.50

24

42045018
ref: 24

NUT,18MM

€ 7.50

25

410024022
ref: 25

TIRE,MR90-18 K327M R

€ 260.50

26

410731020
ref: 26

SOLID WHEEL ASSEMBLY,REAR

€ 381.50

27

41075005
ref: 27

BALANCER,5G

€ 4.50

28

41075006
ref: 28

BALANCER,10G

€ 8.00

29

41075007
ref: 29

BALANCER,20G

€ 8.00

30

41075008
ref: 30

BALANCER,30G

€ 7.50

31

410224002
ref: 31

TUBE,REAR,W18-19

€ 17.50

32

161261136
ref: 32

VALVE,TIRE

€ 22.00
