GEAR CHANGE MECHANISM ('79-'81 C

KZ1000C1A POLICE 1000 1978 USA CANADA

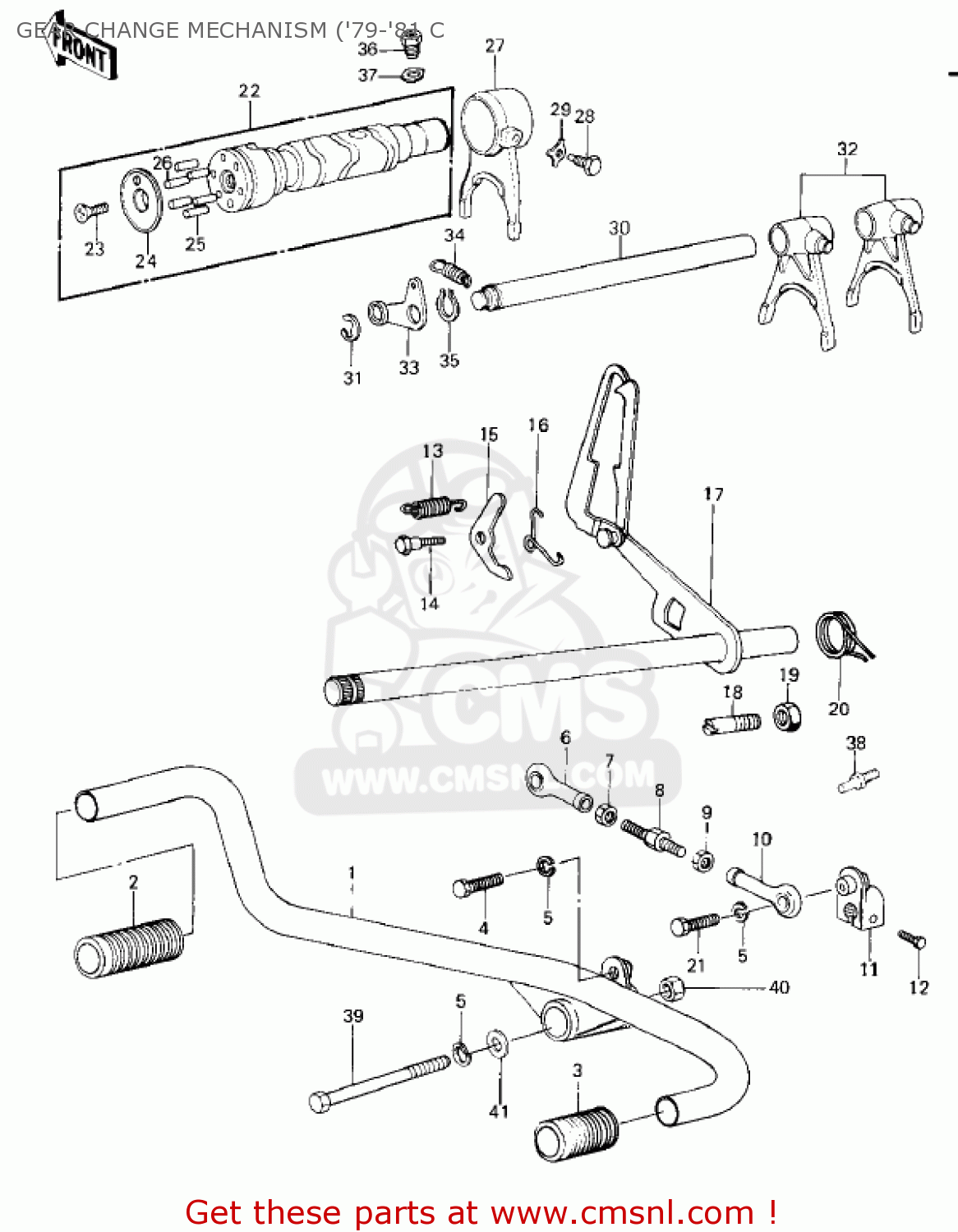

Gear change mechanism ('79-'81 c diagram KZ1000C1A POLICE 1000 1978 USA CANADA

GEAR CHANGE MECHANISM ('79-'81 C KZ1000C1A POLICE 1000 1978 USA CANADA

GEAR CHANGE MECHANISM ('79-'81 C KZ1000C1A POLICE 1000 1978 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

132424001
ref: 1

GEAR CHANGE PEDAL

€ 76.50

2

13063004
ref: 2

DAMPER,KICK PEDAL

€ 6.50

3

920751021
ref: 3

RUBBER,KICK PEDAL

€ 7.50

4

115G0825
ref: 4

BOLT-HEX,HEAD,8X25

€ 3.00

5

461F0800
ref: 5

WASHER-SPRING,8MM

€ 0.50

6

391121004
ref: 6

ROD END,TIE LH FEMALE

€ 28.50

7

920151006
ref: 7

NUT,LH THREAD

€ 0.50

8

920011038
ref: 8

BOLT,GEAR CHANGE LINKAGE

€ 10.00

9

920151005
ref: 9

NUT,RH THREAD

€ 0.50

10

391121003
ref: 10

TIE ROD END,RH,FEMALE

€ 18.50

11

131564001
ref: 11

LEVER-CHANGE,PEDAL

€ 44.50

12

112G0620
ref: 12

BOLT 6X20

€ 1.00

13

92081051
ref: 13

SPRING-CHNG DRUM LEV

€ 2.50

14

921501450
ref: 14

BOLT,CHANGE DRUM LEVE

€ 2.50

15

13168024
ref: 15

LEVER-GEAR CHNG DRUM

€ 5.50

16

92083018
ref: 16

SPRING-KICK PAWL

€ 6.00

17

13161029
ref: 17

LEVER-COMP-CHANGE SHA

€ 79.00

18

92043057
ref: 18

PIN-CHANGE PEDAL SPRG

€ 6.00

18

920011301
ref: 18

BOLT,NEUTRAL POSITION

€ 9.50

19

312B0800
ref: 19

NUT,8MM

€ 0.50

19

312B0600
ref: 19

NUT,6MM

€ 0.50

20

92083028
ref: 20

SPRING,CHG PEDL RTRN

€ 9.50

21

920011577
ref: 21

BOLT,FLANGED,8X35

€ 2.50

22

132391015
ref: 22

DRUM ASSY,GEAR CHANGE

€ 388.50

23

221B0620
ref: 23

SCREW-CNTSNK HD,6X20

€ 0.50

24

130911088
ref: 24

HOLDER,CHANGE DRUM PI

€ 18.50

25

92042014
ref: 25

PIN-GEAR CHANGE DRUM

€ 0.50

26

92042020
ref: 26

PIN-GEAR CHANGE DRUM

€ 3.00

27

13140046
ref: 27

FORK-SHIFT,3RD

€ 124.50

28

92043016
ref: 28

PIN,SELECT FORK GUIDE

€ 12.50

29

92031001
ref: 29

WASHER,LOCK,10MM

€ 7.00

30

490471006
ref: 30

ROD,SHIFT

€ 20.00

31

480J1200
ref: 31

CIRCLIP-TYPE-C,12MM

€ 0.50

32

13440045
ref: 32

UNAVAILABLE IN PRICE BOOK

€ 0.00

33

132361005
ref: 33

LEVER ASSY,CHANGE DRU

€ 7.50

33

132361020
ref: 33

LEVER,NEUTRAL POSITIO

€ 7.50

34

92081051
ref: 34

SPRING-CHNG DRUM LEV

€ 2.50

35

482J6000
ref: 35

CIRCLIP-TYPE-E,6MM

€ 0.50

36

920011052
ref: 36

BOLT, CHG DRUM POSITN

€ 12.50

37

92024047
ref: 37

WASHER-LOCK

€ 2.50

38

920011401
ref: 38

BOLT,RETURN SPRING

€ 3.00

39

115B08105
ref: 39

BOLT-SMALL-UPSET,8X10

€ 4.00

40

321B0800
ref: 40

NUT-CASTLE,8MM

€ 3.00

41

410B0800
ref: 41

WASHER-PLAIN-SMALL,8M

€ 0.50
