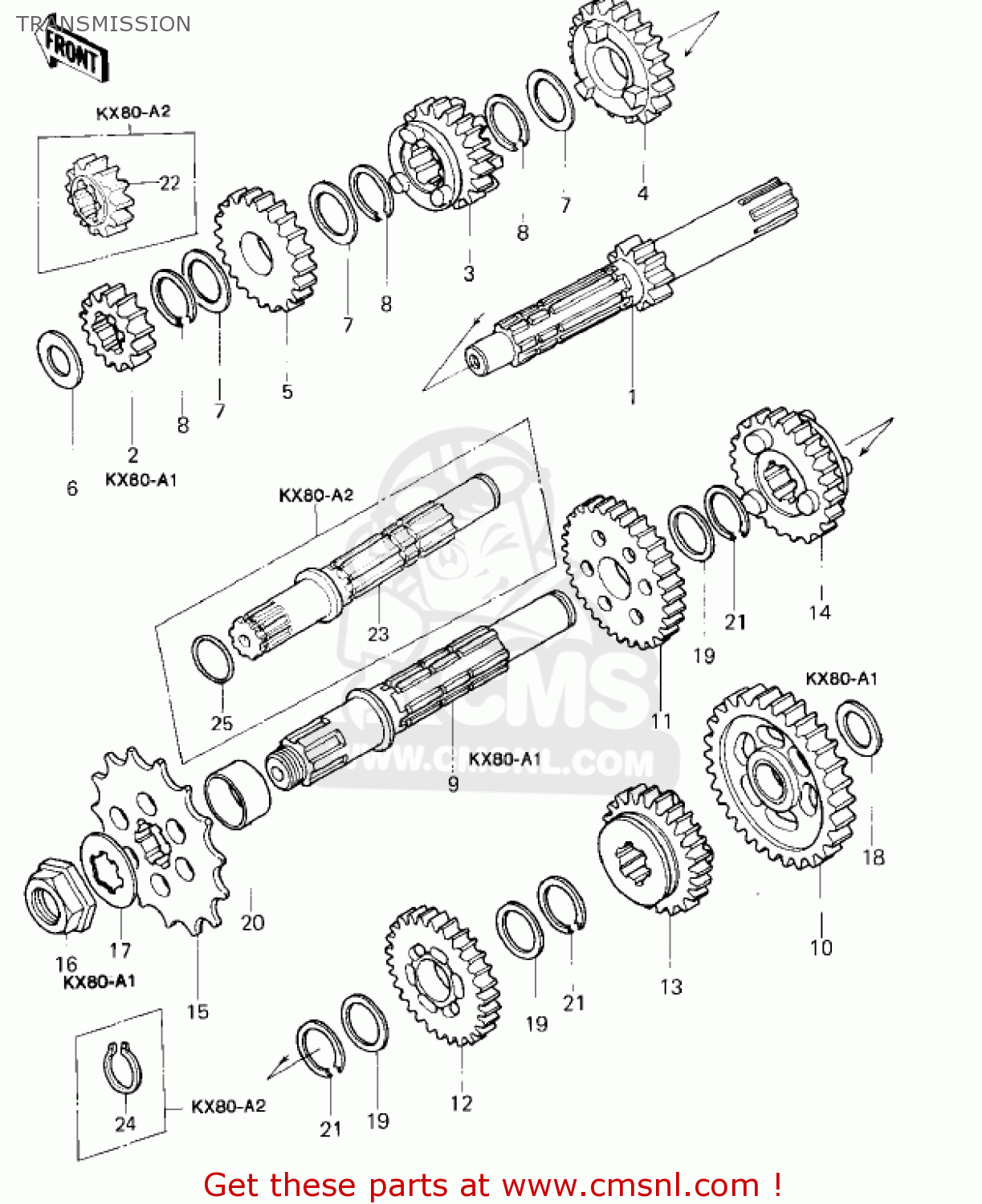

TRANSMISSION

ref

part #

description

quantity

1

131271011
ref: 1
KX80-A1

SHAFT,DRIVE

€ 74.50

1

131271020
ref: 1
KX80-A2~

SHAFT,DRIVE,14T

€ 70.00

2

131291106
ref: 2
KX80-A1

2ND GEAR,DRIVE SHAFT

€ 34.00

3

131291108
ref: 3
KX80-A1

3RD GEAR,DRIVE SHAFT

€ 25.00

3

131291151
ref: 3
KX80-A2~

3RD GEAR,DRIVE SHAFT

€ 19.50

4

131291110
ref: 4

4TH GEAR,DRIVE SHAFT

€ 17.00

5

131291112
ref: 5

TOP GEAR,DRIVE SHAFT

€ 15.00

6

92022123
ref: 6
KX80-A1

WASHER,12.2X20X1.0

€ 1.00

7

920261037
ref: 7

SPACER,17.2X23X0.5

€ 2.50

8

920331060
ref: 8

RING,SNAP

€ 2.50

9

131281018
ref: 9
KX80-A1

SHAFT,OUTPUT

€ 44.50

10

131291105
ref: 10
KX80-A1

LOW GEAR,OUTPUT SHAFT

€ 14.50

10

131291152
ref: 10
KX80-A2~

LOW GEAR,OUTPUT SHAFT

€ 30.00

11

131291107
ref: 11
KX80-A1

2ND GEAR,OUTPUT SHAFT

€ 29.00

11

131291153
ref: 11
KX80-A2~

2ND GEAR,OUTPUT,SHAFT

€ 38.50

12

131291109
ref: 12

3RD GEAR,OUTPUT SHAFT

€ 13.50

13

131291111
ref: 13

4TH GEAR,OUTPUT SHAFT

€ 19.50

14

131291113
ref: 14

TOP GEAR,OUTPUT,SHAFT

€ 21.00

15

131441022
ref: 15

SPROCKET,ENGINE,14T

€ 14.50

15

131441023
ref: 15
OPTION

SPROCKET-OUTPUT,13T

€ 14.50

15

131441024
ref: 15
OPTION

SPROCKET,ENGIE,15T

€ 8.50

16

920151062
ref: 16
KX80-A1

NUT,14MM

€ 11.00

17

920221113
ref: 17
KX80-A1

WASHER,SPLINED,20.3X3

€ 2.50

18

920261036
ref: 18
KX80-A1

SPACER,15.3X22X1.0

€ 1.00

19

920261039
ref: 19

SPACER,18.2X24X0.5

€ 1.50

20

920271077
ref: 20

COLLAR,20X25X12.5

€ 14.00

21

92033028
ref: 21

CIRCLIP

€ 6.00

22

131291150
ref: 22
KX80-A2~

2ND GEAR,DRIVE SHAFT

€ 17.00

23

131281024
ref: 23
KX80-A2~

SHAFT,OUT PUT

€ 49.50

24

480J2000
ref: 24
KX80-A2~

CIRCLIP-TYPE-C,20MM

€ 1.00

25

92055022
ref: 25
KX80-A2~

'O' RING

€ 4.00

all assemblies
