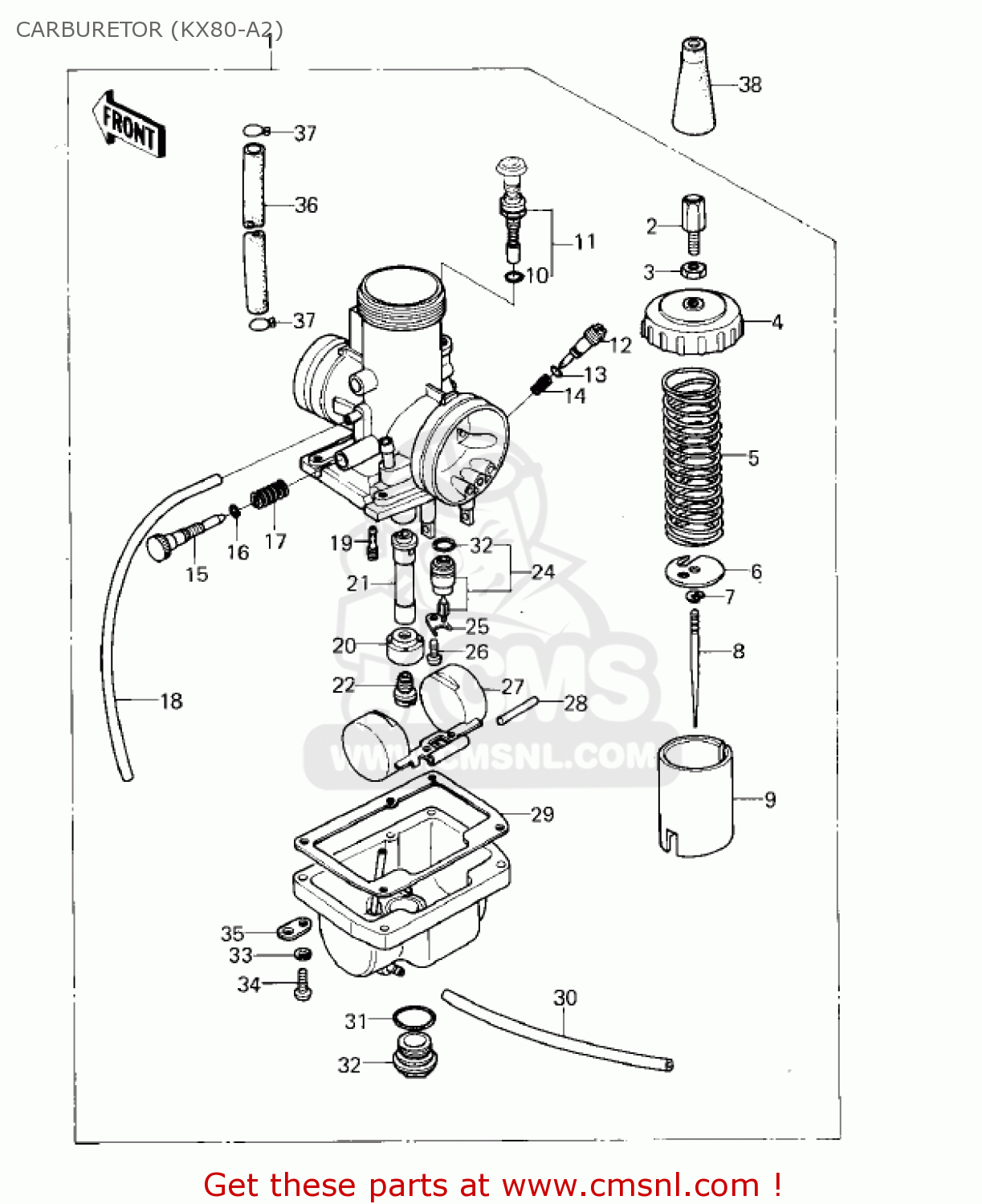

CARBURETOR (KX80-A2)

ref

part #

description

quantity

1

160011206
ref: 1

CARBURETOR ASSY

€ 134.50

2

16002017
ref: 2

ADJUSTER-CABLE

€ 8.00

3

16003006
ref: 3

NUT-CABLE ADJUST LOCK

€ 4.50

4

16004025
ref: 4

CAP,MIXING CHAMBER

€ 23.50

5

920811238
ref: 5

SPRING,THROTTLE VALVE

€ 7.50

6

131691252
ref: 6

SEAT,THROTTLE VALVE

€ 5.50

7

16008010
ref: 7

CLAMP,E-TYPE

€ 5.00

8

160091058
ref: 8

JET NEEDLE,DH62

€ 12.50

9

160251046
ref: 9

VALVE,THROTTLE,#2.0

€ 30.00

10

670B1509
ref: 10

O RING,9MM

€ 1.00

11

160161013
ref: 11

PLUNGER,STARTER

€ 24.50

12

160141013
ref: 12

SCREW-PILOT AIR

€ 9.00

13

16038022
ref: 13

GASKET,O-RING

€ 4.50

14

920811153
ref: 14

SPRING,AIR SCREW

€ 3.00

15

160211012
ref: 15

SCREW-THROTTLE STOP

€ 10.50

16

92055044
ref: 16

'O' RING

€ 7.00

17

920811152
ref: 17

SPRING,THROTTLE ADJST

€ 4.00

18

920591755
ref: 18

TUBE,3X5X300

€ 6.00

19

92064024
ref: 19

JET-PILOT,#40

€ 14.00

20

160651033
ref: 20

HOLDER,MAIN JET RING

€ 10.50

21

160171055
ref: 21

NEEDLE JET,0-8

€ 13.50

22

92063078
ref: 22

MAIN JET,#120R

€ 11.50

22

92063076
ref: 22

MAIN JET,#115R

€ 5.50

22

92063077
ref: 22

JET-MAIN,#117.5R

€ 10.00

22

920631101
ref: 22

JET-MAIN,#A122.5

€ 9.50

22

92063055
ref: 22

MAIN JET,#125R

€ 9.50

23

920551084
ref: 23

RING-O

€ 1.50

24

160301013
ref: 24

VALVE-FLOAT,#2.5

€ 33.00

25

131691190
ref: 25

PLATE,LOCK

€ 3.50

26

220B0408
ref: 26

SCREW-PAN-CROS

€ 0.50

27

160311011
ref: 27

FLOAT

€ 35.00

28

16032003
ref: 28

FLOAT PIN

€ 4.00

29

110091178
ref: 29

GASKET,FLOAT CHAMBER

€ 7.00

30

920591135
ref: 30

TUBE

€ 4.00

31

920551076
ref: 31

RING-O

€ 6.00

32

160491003
ref: 32

COVER,MAIN JET

€ 8.00

33

461F0400
ref: 33

WASHER-SPRING,4MM

€ 0.50

34

220B0416
ref: 34

SCREW-PAN-CROS

€ 2.00

35

131691226
ref: 35

PLATE,TUBE CLAMP

€ 5.00

36

920591023
ref: 36

HOSE,FUEL TAP DIAPHRA

€ 17.00

37

92037072
ref: 37

CLAMP,TUBE

€ 4.00

38

16036007
ref: 38

BOOT,CABLE ADJUSTER

€ 10.50
