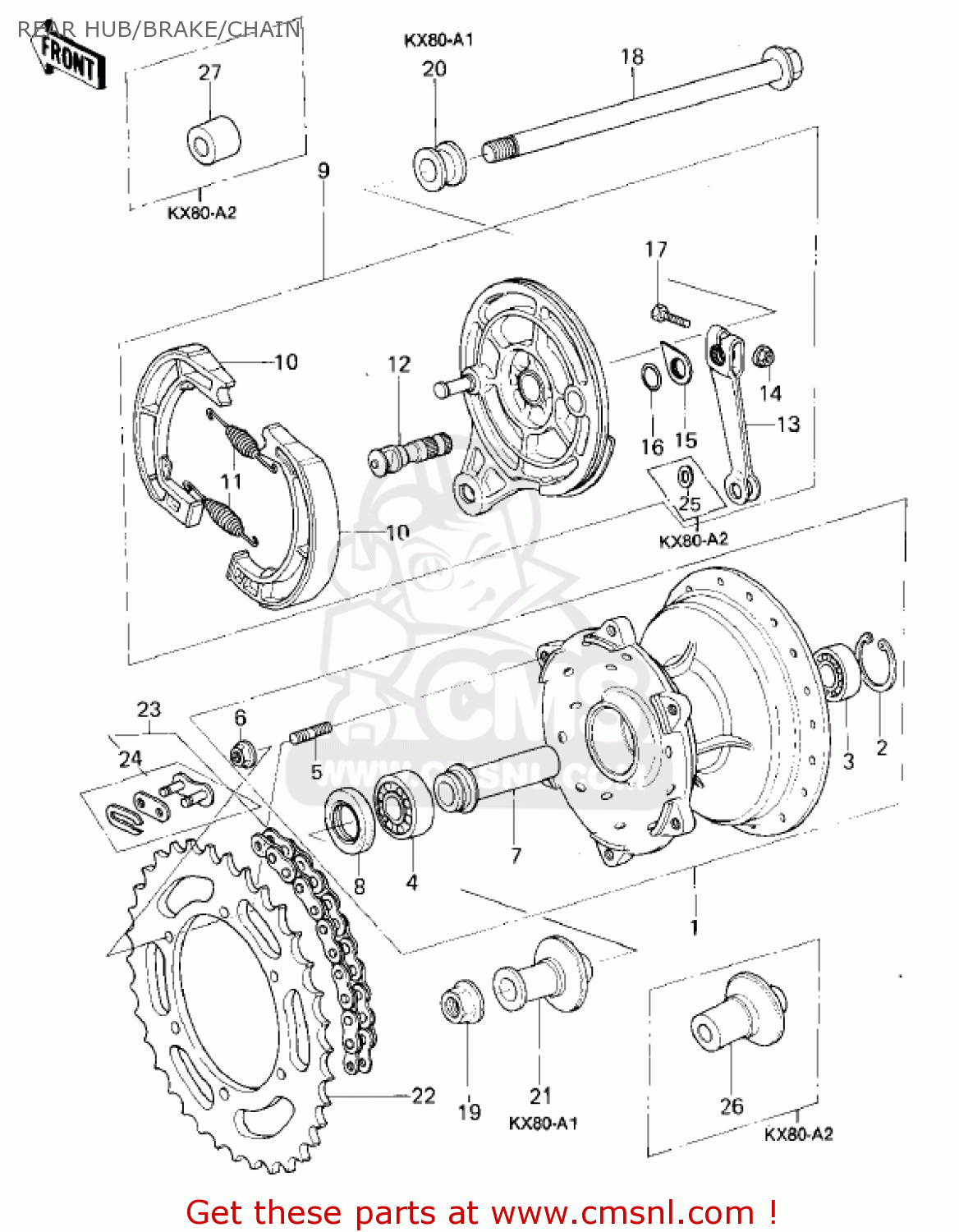

REAR HUB/BRAKE/CHAIN

ref

part #

description

quantity

1

410345003
ref: 1
KX80-A1

DRUM-ASSY,REAR BRAKE

€ 203.50

1

410345003
ref: 1
KX80-A2~

DRUM-ASSY,REAR BRAKE

€ 203.50

2

481J3200
ref: 2

CIRCLIP-TYPE-C,32MM

€ 1.00

3

601B6201U
ref: 3

BEARING-BALL,#6201LUC

€ 18.50

4

601B6203
ref: 4

BEARING-BALL,#6203C3

€ 10.50

5

920041014
ref: 5
KX80-A1

STUD,8X15,

€ 2.50

5

920041015
ref: 5
KX80-A2~

STUD,8X17

€ 2.50

6

920151022
ref: 6

NUT, 8MM

€ 0.50

7

920271089
ref: 7

COLLAR,L=79

€ 25.00

8

920491012
ref: 8

OIL SEAL,24X40X8

€ 10.00

9

410351032
ref: 9
KX80-A1

PANEL ASSY,REAR BRAKE

€ 136.50

9

410351032
ref: 9
KX80-A2~

PANEL ASSY,REAR BRAKE

€ 136.50

10

410481021
ref: 10

SHOE,BRAKE (MCA)

€ 12.50

11

920811766
ref: 11

SPRING,BRAKE SHOE

€ 5.50

12

410501012
ref: 12

CAM,BRAKE,REAR

€ 13.50

13

410531010
ref: 13

LEVER,BRAKE CAM,REAR

€ 40.00

14

41072007
ref: 14

NUT,6MM

€ 2.50

15

410851002
ref: 15
KX80-A1

INDICATOR,BRAKE SHOE

€ 3.50

16

670B2012
ref: 16

O RING,12MM

€ 1.00

17

920011135
ref: 17

BOLT,HEX HEAD,6X30

€ 3.00

18

410681037
ref: 18
KX80-A1

AXLE,RR,12X221

€ 36.00

18

410681036
ref: 18
KX80-A2~

AXLE,RR,12X211

€ 30.00

19

920151156
ref: 19

NUT,12MM

€ 4.50

20

920271090
ref: 20
KX80-A1

COLLAR,REAR AXLE,R.H

€ 9.00

21

920271091
ref: 21
KX80-A1

COLLAR,REAR AXLE,L.H

€ 11.50

22

420411016
ref: 22

REAR SPROCKET,48T

€ 35.00

22

420411034
ref: 22
OPTION

REAR SPROCKET,50T

€ 35.00

22

420411035
ref: 22
OPTION

REAR SPROCKET,52T

€ 35.00

23

920571093
ref: 23
KX80-A1

CHAIN ASSY,EK420SHG

€ 27.50

23

920571097
ref: 23
KX80-A2~

CHAIN ASSY,EK420SHG

€ 26.50

24

920581016
ref: 24

JOINT,CHAIN

€ 4.50

25

92022257
ref: 25
KX80-A2~

WASHER

€ 9.00

26

920271246
ref: 26
KX80-A2~

COLLAR,REAR BRAKE DRM

€ 19.50

27

920271247
ref: 27
KX80-A2~

COLLAR,REAR AXLE

€ 5.50

all assemblies
