SWING ARM/SHOCK ABSORBERS
KX80-A2 KX80 1980

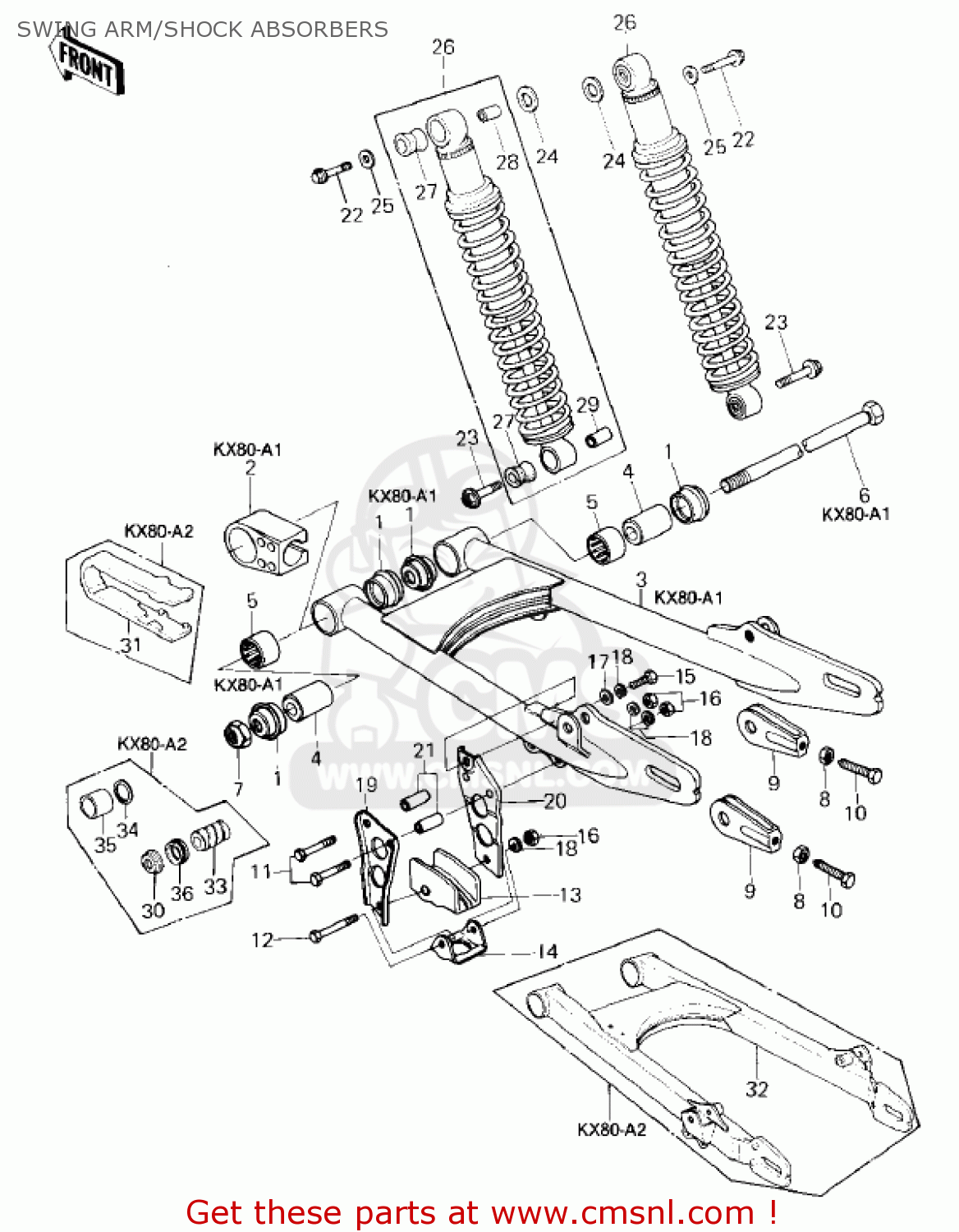

Swing arm/shock absorbers diagram KX80-A2 KX80 1980
SWING ARM/SHOCK ABSORBERS KX80-A2 KX80 1980
×
prices are in EUR
ref
part #
description
quantity
1
110121065
ref: 1
KX80-A1
CAP,SWING ARM
€ 10.00
2
120531029
ref: 2
KX80-A1
GUIDE,CHAIN
€ 6.50
3
33001105310
ref: 3
KX80-A1
ARM,SWING
€ 100.00
4
420361022
ref: 4
KX80-A1
SLEEVE,SWING ARM
€ 41.00
5
920461115
ref: 5
KX80-A1
BEARING-NEEDLE,HK2216
€ 24.00
6
330321007
ref: 6
SHAFT,SWIG ARM PIVOT
€ 15.00
7
920151774
ref: 7
NUT
€ 4.50
8
311B0600
ref: 8
NUT,6MM
€ 0.50
9
330401009
ref: 9
ADJUSTER,CHAIN
€ 7.00
10
920011463
ref: 10
BOLT,6X38
€ 3.00
11
110R0635
ref: 11
BOLT 6X35
€ 3.50
12
112G0645
ref: 12
BOLT-UPSET
€ 0.50
13
120531030
ref: 13
GUIDE,CHAIN
€ 8.00
14
140201006
ref: 14
RETAINER,CHAIN GUIDE
€ 3.00
15
112B0614
ref: 15
BOLT-UPSET 6X14
€ 2.50
16
311B0600
ref: 16
NUT,6MM
€ 0.50
17
411B0600
ref: 17
WASHER-PLAIN,6MM
€ 0.50
18
461F0600
ref: 18
WASHER-SPRING,6MM
€ 0.50
19
550201017
ref: 19
GUARD,CHAIN,OUTSIDE
€ 10.50
20
550201018
ref: 20
GUARD,CHAIN,INSIDE
€ 16.00
21
920261040
ref: 21
SPACER,10X13.2X22
€ 2.00
22
130G0610
ref: 22
BOLT-FLANGED,6X10
€ 0.50
23
920011104
ref: 23
KX80-A1
BOLT,FLANGED,10X30
€ 1.00
23
920011308
ref: 23
KX80-A2
BOLT,FLANGED,10X33
€ 2.00
24
920221065
ref: 24
WASHER,12.3X22X1.6
€ 2.50
25
92022237
ref: 25
WASHER-PLAIN
€ 2.50
26
450141041
ref: 26
KX80-A1
SHOCK ABSORBER,REAR
€ 79.00
26
450141053
ref: 26
KX80-A2
SHOCK ABSORBER,REAR
€ 106.00
27
45017012
ref: 27
BUSHING A,SHOK AB RUB
€ 10.50
28
920271016
ref: 28
12.2 X 16 X 20
COLLAR,SHOCKABSORBER
€ 4.00
29
45016008
ref: 29
10.2 X 16 X 20
BUSHING,SHOCK ABSORB
€ 6.50
30
110121110
ref: 30
KX80-A2
CAP,SWING ARM
€ 7.00
31
120531044
ref: 31
KX80-A2
GUIDE,CHAIN
€ 7.00
32
330011052
ref: 32
KX80-A2
ARM,SWING
€ 97.50
33
420361033
ref: 33
KX80-A2
SLEEVE,SWING ARM
€ 7.00
34
920251197
ref: 34
KX80-A2
SHIM,22.1X27.6X0.5
€ 1.00
35
920281078
ref: 35
KX80-A2
BUSHING,22X28X23.5
€ 26.50
36
920491053
ref: 36
KX80-A2
OIL SEAL
€ 1.50
37
920811169
ref: 37
OPT, KX80-A1
SHOCK ABSORBER SPRING
€ 19.00
