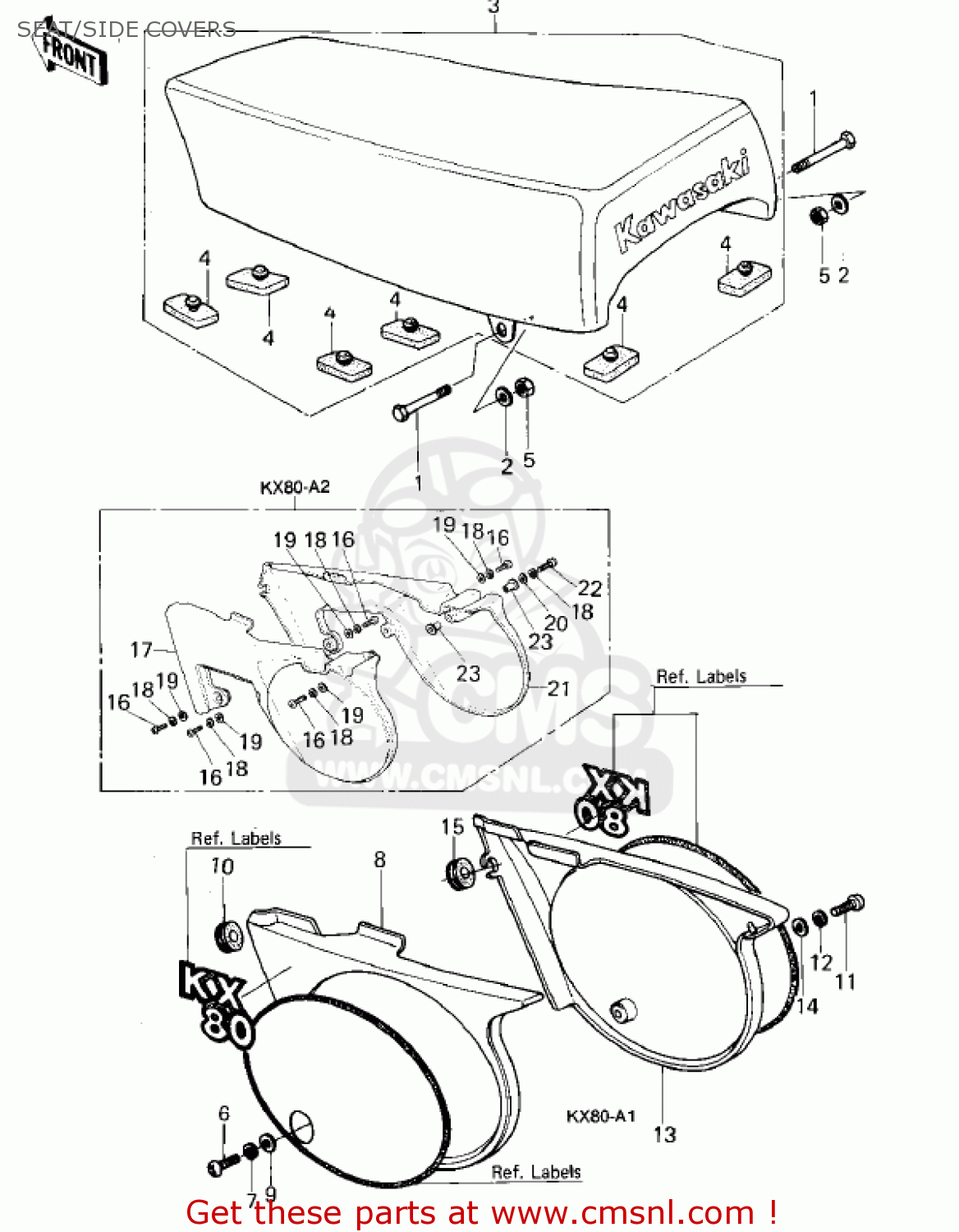

SEAT/SIDE COVERS

ref

part #

description

quantity

1

112G0645
ref: 1
KX80-A1

BOLT-UPSET

€ 0.50

1

112G0640
ref: 1
KX80-A2~

BOLT-UPSET,6X40

€ 2.50

2

411B0600
ref: 2

WASHER-PLAIN,6MM

€ 0.50

3

530011020
ref: 3

SEAT ASSY

€ 278.50

4

920751054
ref: 4

DAMPER

€ 3.00

5

92019008
ref: 5

NUT-LOCK,6MM

€ 3.00

6

220B0625
ref: 6
KX80-A1

SCREW-PAN HEAD,6X25

€ 1.50

7

461F0600
ref: 7
KX80-A1

WASHER-SPRING,6MM

€ 0.50

8

3600110296W
ref: 8
KX80-A1

COVER-SIDE,LH,L.GREEN

€ 23.50

9

92022024
ref: 9
KX80-A1

WASHER,7X16X1.2

€ 2.50

10

920751067
ref: 10

DAMPER,SIDE COVER

€ 3.00

11

220B0625
ref: 11
KX80-A1

SCREW-PAN HEAD,6X25

€ 1.50

12

461F0600
ref: 12
KX80-A1

WASHER-SPRING,6MM

€ 0.50

13

3600110306WA
ref: 13
KX80-A1

COVER,SIDE,R.H,GREEN

€ 13.50

14

92022024
ref: 14
KX80-A1

WASHER,7X16X1.2

€ 2.50

15

920751067
ref: 15

DAMPER,SIDE COVER

€ 3.00

16

220B0620
ref: 16
KX80-A2~

SCREW-PAN HEAD,6X20

€ 2.50

17

360011089D4
ref: 17
KX80-A2~

COVER,SIDE,LH,D.GREEN

€ 46.00

18

461F0600
ref: 18
KX80-A2~

WASHER-SPRING,6MM

€ 0.50

19

92022024
ref: 19
KX80-A2~

WASHER,7X16X1.2

€ 2.50

20

92022125
ref: 20
KX80-A2~

WASHER,6.5X20X1.6

€ 1.00

21

360011090D4
ref: 21
KX80-A2~

COVER,SIDE,RH,D.GREEN

€ 46.50

22

920011319
ref: 22
KX80-A2~

BOLT,6X30

€ 2.00

23

920751244
ref: 23
KX80-A2~

DAMPER

€ 3.00

all assemblies
