REAR SUSPENSION (KX420-A2)

KX420-A1 KX420 1980 UNITED KINGDOM USA CANADA EXPORT

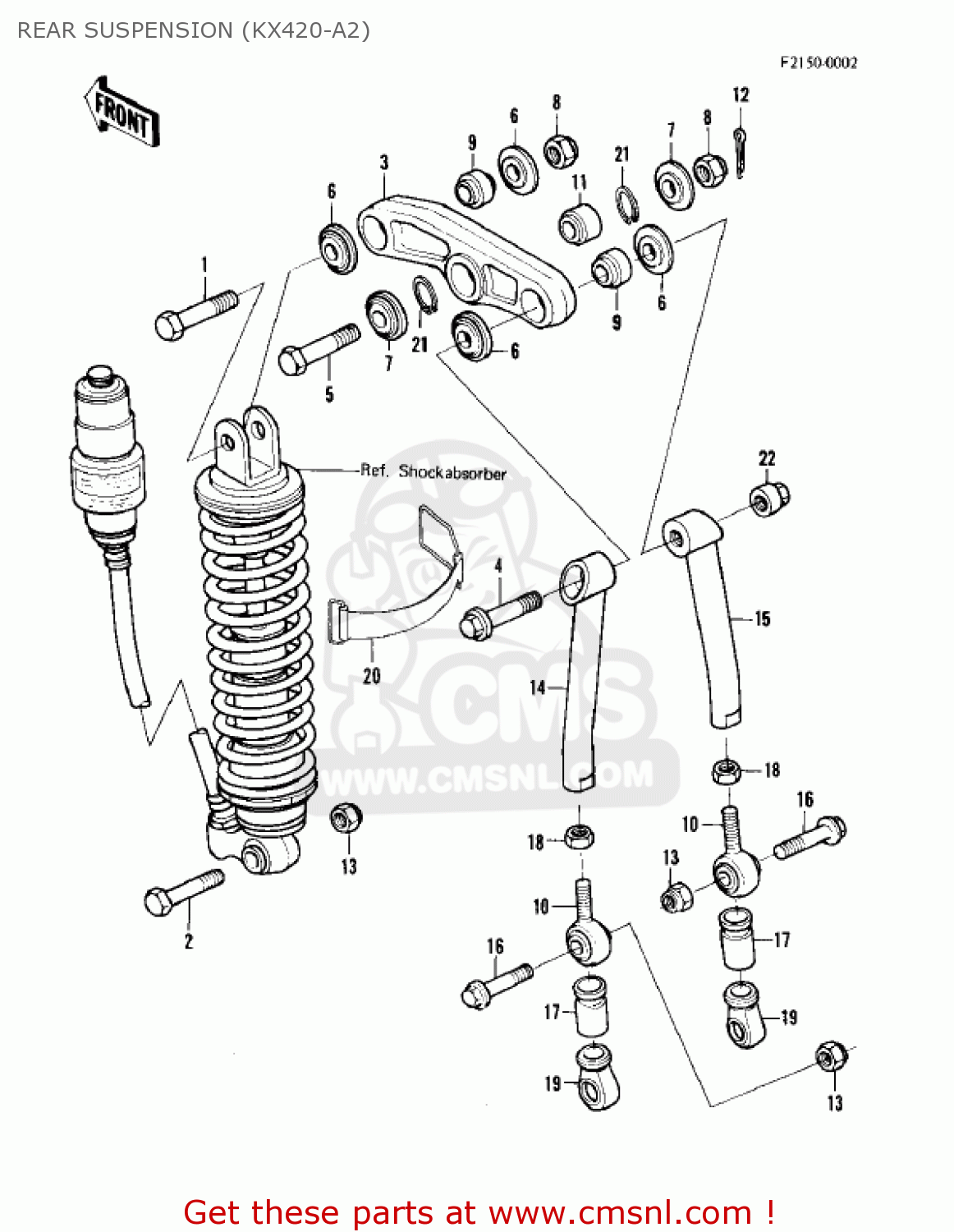

Rear suspension (kx420-a2) diagram KX420-A1 KX420 1980 UNITED KINGDOM USA CANADA EXPORT

prices are in EUR

ref

part #

description

quantity

920011317
ref: 1

BOLT,HEX HEAD,14X50

€ 8.00

113P1255A
ref: 2

BOLT,HEX HEAD 12X55

€ 6.00

390074002
ref: 3

ARM-SUSP

€ 56.00

920011344
ref: 4

BOLT,14X60

€ 8.50

920011335
ref: 5

BOLT,HEX HEAD,14X59

€ 14.00

110121117
ref: 6

CAP,SUSPENSION ARM

€ 10.00

110121168
ref: 7

CAP,SUSPENSION ARM

€ 7.50

92019011
ref: 8

NUT,LOCK,14MM

€ 6.00

592661001
ref: 9

JOINT-BALL,MBWTD14-20

€ 113.50

592661002
ref: 10

JOINT-BALL,HR12E-202

€ 91.50

920281087
ref: 11

BUSHING,14X27.5X17

€ 108.00

550D2525
ref: 12

PIN-COTTER,2.5X25

€ 1.00

92019009
ref: 13

NUT,LOCK,12MM

€ 5.00

461021024
ref: 14

ROD,UNI-TRAK,LH

€ 54.50

461021025
ref: 15

ROD,UNI-TRAK,RH

€ 54.50

920011297
ref: 16

BOLT,HEX HEAD,12X48

€ 7.50

490061045
ref: 17

BOOT,BALL JOINT

€ 9.00

315B1200
ref: 18

NUT,12MM

€ 0.50

490061046
ref: 19

BOOT,BALL JOINT

€ 9.00

92072076
ref: 20

BAND,L=40

€ 14.00

920331064
ref: 21

RING-SNAP

€ 4.00

920151123
ref: 22

NUT,UNITRAK LINK

€ 17.50

REAR SUSPENSION (KX420-A2)
