CYLINDER HEAD/CYLINDER/REED VALV

KX420-A1 KX420 1980 UNITED KINGDOM USA CANADA EXPORT

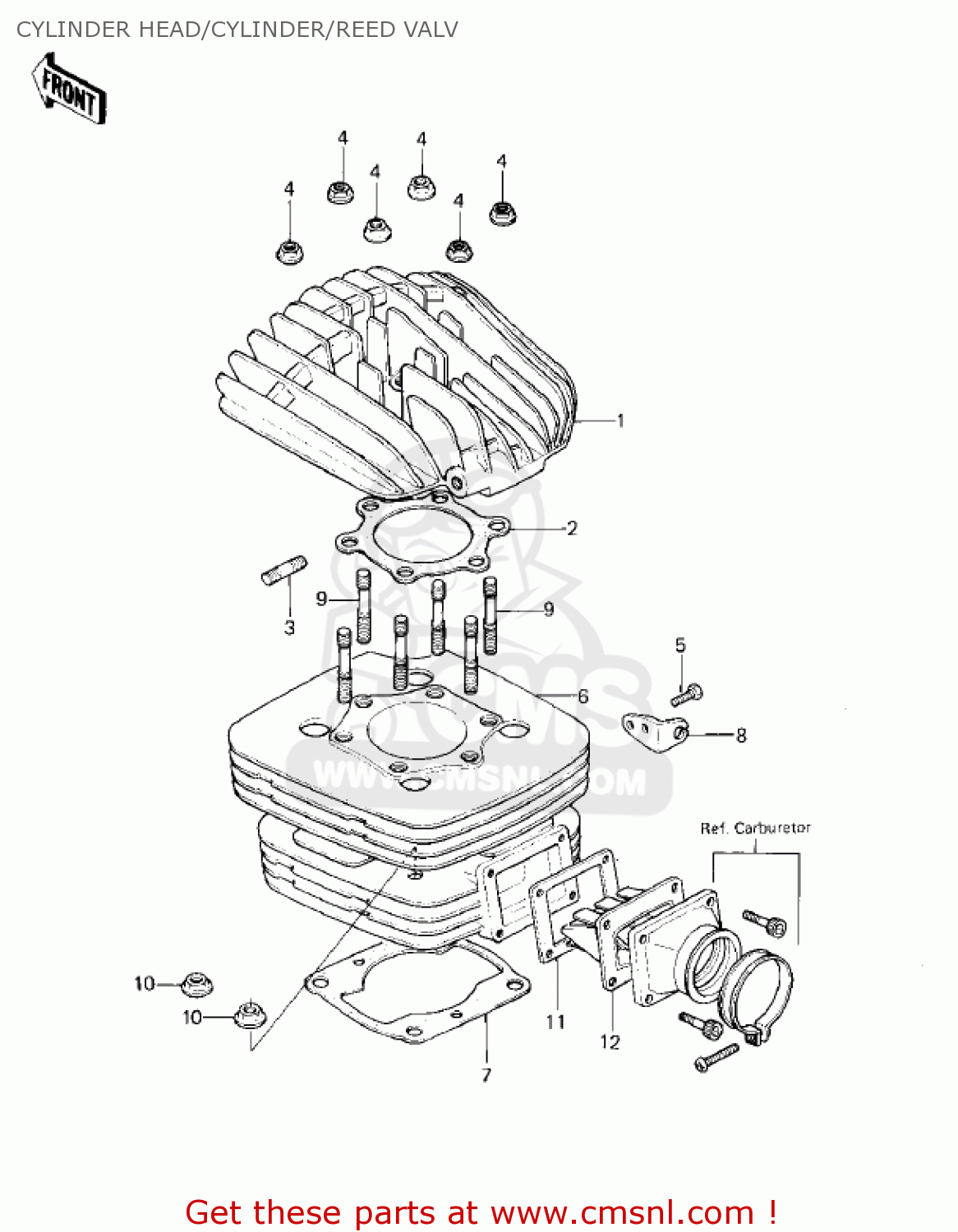

Cylinder head/cylinder/reed valv diagram KX420-A1 KX420 1980 UNITED KINGDOM USA CANADA EXPORT

prices are in EUR

ref

part #

description

quantity

110011030
ref: 1

HEAD,CYLINDER F.BLACK

€ 152.00

110041015
ref: 2

GASKET-HEAD,CYLINDER (NAS)

€ 14.00

175G1018
ref: 3

STUD,10X18

€ 2.50

920151014
ref: 4

NUT,8MM

€ 0.50

112G0618
ref: 5

BOLT-UPSET

€ 0.50

110051068
ref: 6

CYLINDER,ELECTRO-FUSE

€ 784.00

110091130
ref: 7

GASKET,CYLINDER BASE (MCA)

€ 7.00

130911119
ref: 8

HOLDER

€ 2.50

920041022
ref: 9

STUD,CYLINDER

€ 4.50

920151415
ref: 10

NUT,10MM

€ 3.00

110091018
ref: 11

GASKET,REED VALVE (MCA)

€ 3.50

120211007
ref: 12

VALVE-ASSY-REED

€ 101.50

all assemblies
