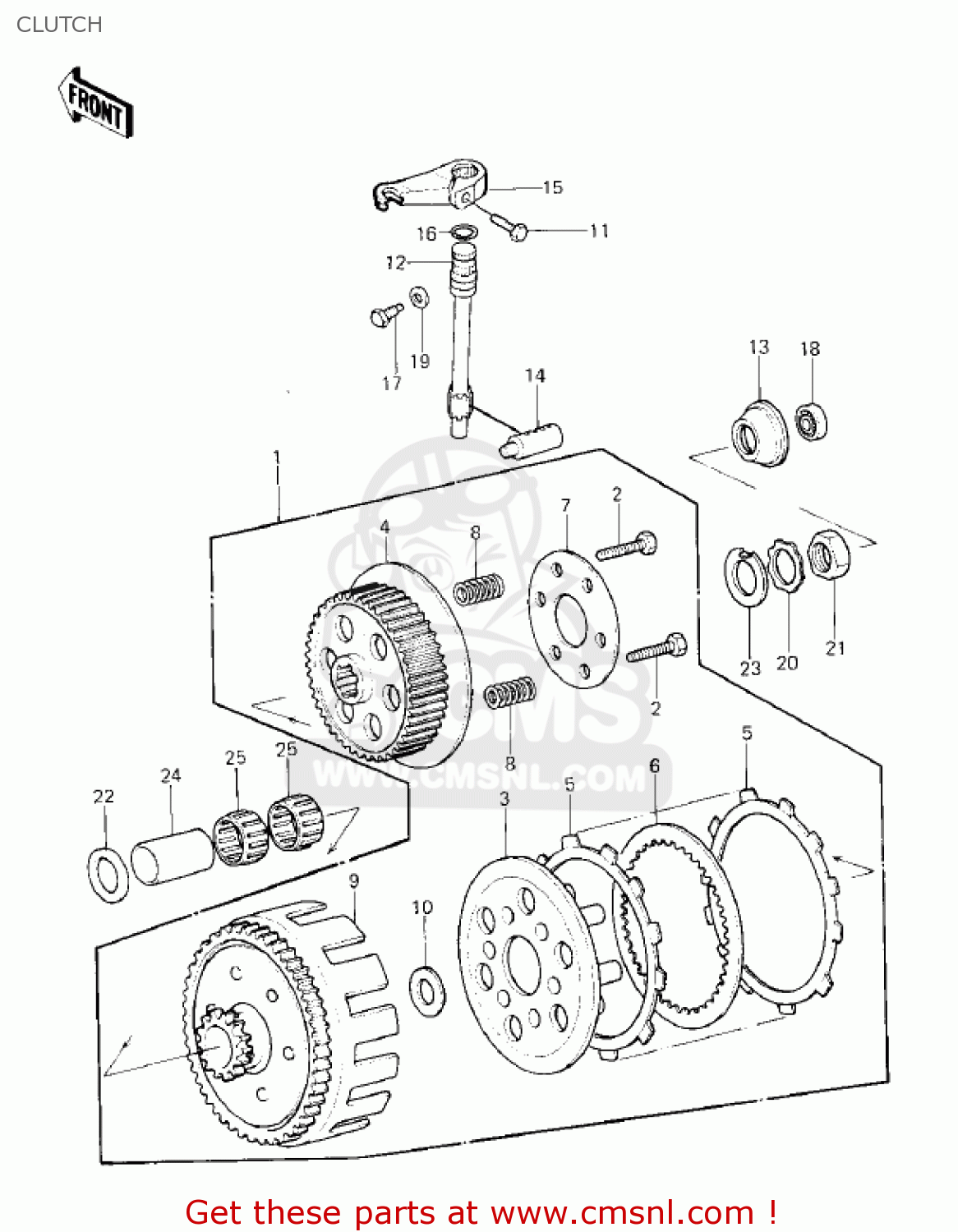

CLUTCH

ref

part #

description

quantity

1

130811027
ref: 1
KX420-A1

CLUTCH ASSY

€ 384.50

1

130811056
ref: 1
KX420-A2

CLUTCH ASSY

€ 507.00

2

112G0618
ref: 2
KX420-A1

BOLT-UPSET

€ 0.50

2

112G0620
ref: 2
KX420-A2

BOLT 6X20

€ 1.00

3

13086016
ref: 3

WHEEL,CLUTCH

€ 52.50

4

130871012
ref: 4

HUB,CLUTCH

€ 53.50

5

13088041
ref: 5

PLATE,CLUTCH FRICTION (NAS)

€ 12.00

6

13089025
ref: 6

PLATE,CLUTCH STEEL (NAS)

€ 15.50

7

13091016
ref: 7

PLATE,CLUTCH SPRING (NAS)

€ 5.50

8

920811151
ref: 8

SPRING,CLUTCH

€ 5.00

9

130951017
ref: 9
KX420-A1

HOUSING,CLUTCH

€ 286.50

9

130951036
ref: 9
KX420-A2

HOUSING,CLUTCH

€ 219.50

10

92022282
ref: 10

WASHER,CLUTCH THRUST

€ 7.50

11

112G0618
ref: 11

BOLT-UPSET

€ 0.50

12

13106008
ref: 12

SHAFT,CLUTCH RELEASE

€ 64.50

13

130911071
ref: 13
KX420-A1

HOLDER,CLUTCH PUSHER

€ 15.00

13

130911071
ref: 13
KX420-A2

HOLDER,CLUTCH PUSHER

€ 15.00

14

13116025
ref: 14

ROD,CLUTCH PUSH

€ 19.50

15

131681023
ref: 15
KX420-A1

LEVER,CLUTCH RELEASE

€ 22.00

15

131681010
ref: 15
KX420-A2

LEVER,CLUTCH RELEASE

€ 64.00

16

670B2010
ref: 16

O RING,10MM

€ 1.00

17

92003130
ref: 17

BOLT,CLUTCH RELEASE

€ 3.50

18

920451005
ref: 18

BEARING-BALL,607MC3

€ 20.00

19

92065092
ref: 19

GASKET,R.H ENG COVER (NAS)

€ 2.50

20

464H1600
ref: 20

WASHER-TOOTHED,16MM

€ 3.00

21

920151016
ref: 21

NUT,16MM

€ 3.50

22

92022314
ref: 22
KX420-A1

WASHER,20X35X1

€ 4.50

22

92022282
ref: 22
KX420-A2

WASHER,CLUTCH THRUST

€ 7.50

23

920221277
ref: 23

WASHER,16.8X32X1.6

€ 3.50

24

920281067
ref: 24

BUSHING,CLUT 20X25X40

€ 17.00

25

920461003
ref: 25

BEARING,NEEDLE

€ 16.00
