FRONT FORK (KX420-A2)

KX420-A1 KX420 1980 UNITED KINGDOM USA CANADA EXPORT

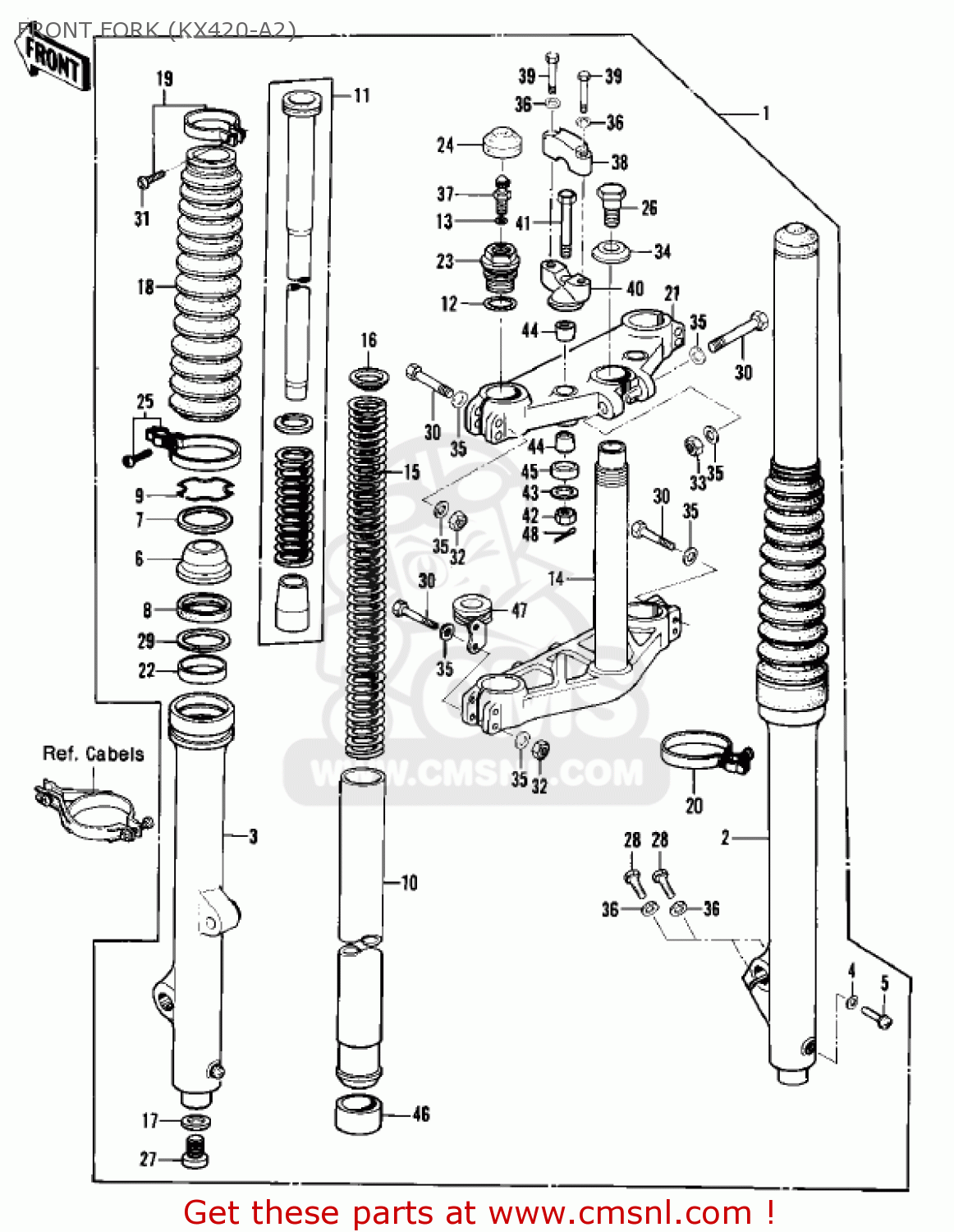

Front fork (kx420-a2) diagram KX420-A1 KX420 1980 UNITED KINGDOM USA CANADA EXPORT

FRONT FORK (KX420-A2) KX420-A1 KX420 1980 UNITED KINGDOM USA CANADA EXPORT
FRONT FORK (KX420-A2) KX420-A1 KX420 1980 UNITED KINGDOM USA CANADA EXPORT
FRONT FORK (KX420-A2) KX420-A1 KX420 1980 UNITED KINGDOM USA CANADA EXPORT
prices are in EUR
ref
part #
description
quantity
1
440011272
ref: 1
U.S. & CANADA, W/O R
FRONT FORK
€ 819.00
2
440061064
ref: 2
TUBE-RH OUTER FORK
€ 159.50
3
440051064
ref: 3
TUBE-LH OUTER FORK
€ 176.50
44
44045002
ref: 44
GASKET,FORK DRAIN PLU (NAS)
44045002
€ 3.00
5
220B0408
ref: 5
SCREW-PAN-CROS
220B0408
€ 0.50
6
920931035
ref: 6
DUST SHIELD,FORK OUTR
920931035
€ 10.50
7
320991013
ref: 7
CASE,DUST SHIELD
€ 3.50
8
920491042
ref: 8
OIL SEAL,FORK OUTE TU
920491042
€ 13.50
9
920331047
ref: 9
SNAP RING,FORK OUTER
920331047
€ 4.00
10
440131053
ref: 10
PIPE-FORK INNER
€ 196.00
11
440221052
ref: 11
CYLINDER ASSY,FORK
€ 51.50
12
920551050
ref: 12
RING-O,FORK TOP CAP
920551050
€ 4.00
13
920551018
ref: 13
RING-O,AIR VALVE
920551018
€ 2.50
14
440371065
ref: 14
STEM,STEERING
€ 283.00
15
440261042
ref: 15
SPRING,FORK INNER
€ 28.50
16
440281003
ref: 16
GUIDE-FORK SPRING
440281003
€ 7.50
17
110091127
ref: 17
GASKET,FORK CYLID BOL (NAS)
110091127
€ 3.00
18
490061058
ref: 18
BOOT,FORK,LIME GREEN
€ 35.50
19
920721046
ref: 19
BAND,BOOT
920721046
€ 6.50
20
920721025
ref: 20
CLAMP,BOOT,R.H
920721025
€ 6.00
21
440391040
ref: 21
BRACKET-UPPER
€ 133.50
22
440651091
ref: 22
BUSHING-FRONT FORK,OU
440651091
€ 17.00
23
440291008
ref: 23
CAP,FORK TOP
440291008
€ 38.50
24
440291009
ref: 24
SEAT-FORK SPRING
440291009
€ 4.00
25
920721026
ref: 25
CLAMP,BOOT,L.H
920721026
€ 8.50
26
44041065
ref: 26
BOLT,FORK TOP
44041065
€ 18.50
27
920011309
ref: 27
BOLT,FORK CYLINDER
920011309
€ 4.50
28
115G0825
ref: 28
BOLT-HEX,HEAD,8X25
115G0825
€ 3.00
29
920221262
ref: 29
WASHER,FORK OUTER PIP
920221262
€ 5.50
30
920011398
ref: 30
BOLT,FLANGED 8X55
920011398
€ 2.50
31
220B0420
ref: 31
SCREW-PAN-CROS
€ 2.00
32
311G0800
ref: 32
NUT-HEX,8MM
€ 2.50
33
920151124
ref: 33
NUT,LOCK,8MM
920151124
€ 3.50
34
44043052
ref: 34
WASHER,PLAIN
€ 6.00
35
410B0800
ref: 35
WASHER-PLAIN-SMALL,8M
410B0800
€ 0.50
36
461F0800
ref: 36
WASHER-SPRING,8MM
461F0800
€ 0.50
37
161261003
ref: 37
VALVE,AIR
161261003
€ 22.50
38
460121014
ref: 38
HOLDER-HANDLE
460121014
€ 8.50
39
115G0835
ref: 39
BOLT HEX,HEAD,8X35
115G0835
€ 3.00
40
460121012
ref: 40
HOLDER-HANDLE
460121012
€ 18.00
41
920011436
ref: 41
BOLT
920011436
€ 6.00
42
920151142
ref: 42
NUT
€ 3.00
43
920221262
ref: 43
WASHER,FORK OUTER PIP
920221262
€ 5.50
44
920751307
ref: 44
DAMPER RUBBER
920751307
€ 3.00
45
110121165
ref: 45
COVER-DAMPER RUBBER
110121165
€ 0.50
46
920281126
ref: 46
BUSHING-FRONT FORK,IN
920281126
€ 31.50
47
920721027
ref: 47
EXPORT, SEE NUMBER P
BAND,CABLE
920721027
€ 12.50
48
550D2020
ref: 48
PIN-COTTER,2.0X20
550D2020
€ 0.50
