FRONT FORK (KX420-A1)

KX420-A1 KX420 1980 UNITED KINGDOM USA CANADA EXPORT

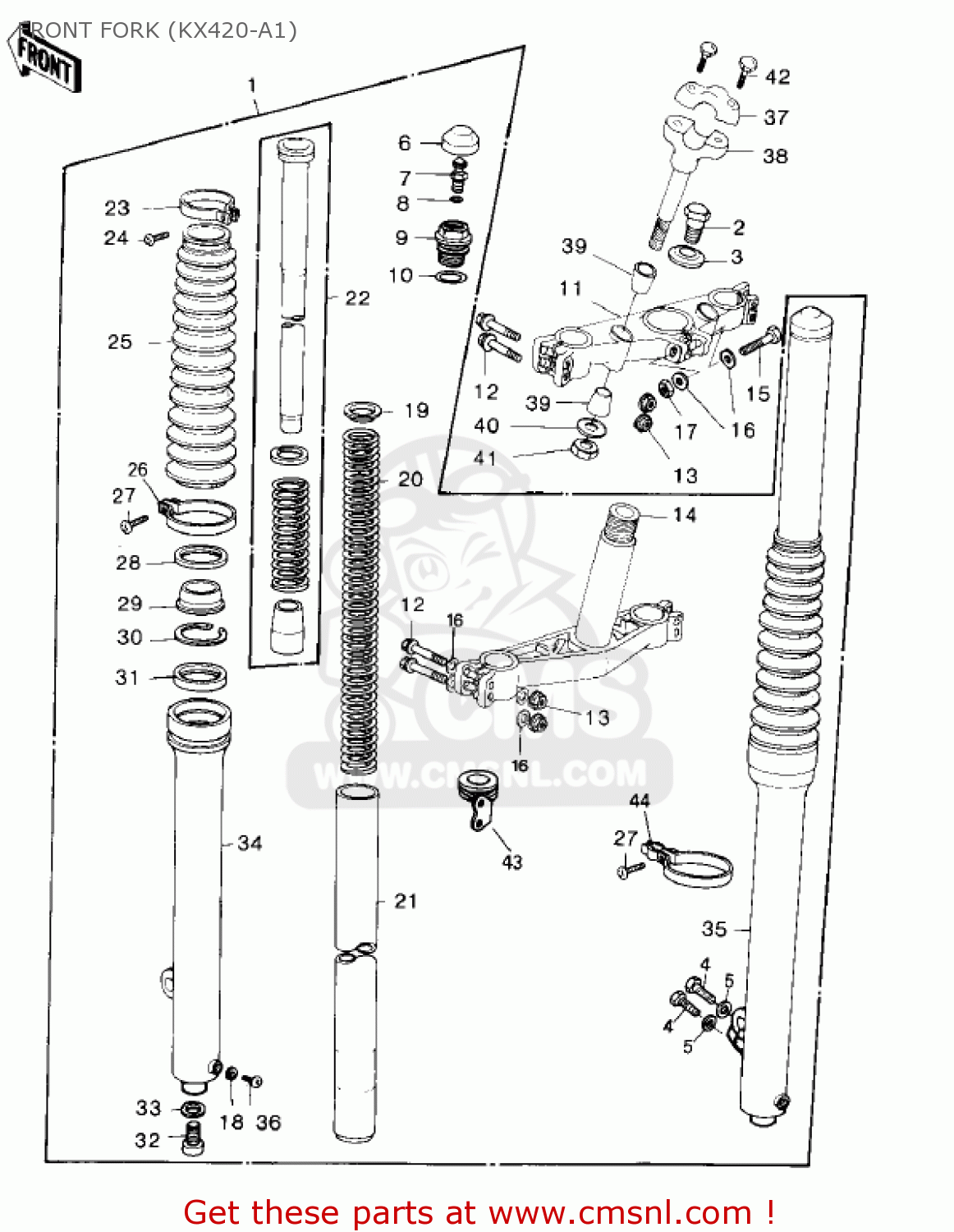

Front fork (kx420-a1) diagram KX420-A1 KX420 1980 UNITED KINGDOM USA CANADA EXPORT

FRONT FORK (KX420-A1) KX420-A1 KX420 1980 UNITED KINGDOM USA CANADA EXPORT
FRONT FORK (KX420-A1) KX420-A1 KX420 1980 UNITED KINGDOM USA CANADA EXPORT
FRONT FORK (KX420-A1) KX420-A1 KX420 1980 UNITED KINGDOM USA CANADA EXPORT
prices are in EUR
ref
part #
description
quantity
1
440011118
ref: 1
FRONT FORK ASSY
€ 1,163.00
2
44041065
ref: 2
14 X 20
BOLT,FORK TOP
44041065
€ 18.50
3
44043052
ref: 3
WASHER,PLAIN
€ 6.00
4
115G0825
ref: 4
BOLT-HEX,HEAD,8X25
115G0825
€ 3.00
5
461F0800
ref: 5
WASHER-SPRING,8MM
461F0800
€ 0.50
6
440291009
ref: 6
SEAT-FORK SPRING
440291009
€ 4.00
7
161261003
ref: 7
VALVE,AIR
161261003
€ 22.50
8
920551018
ref: 8
RING-O,AIR VALVE
920551018
€ 2.50
9
440291008
ref: 9
CAP,FORK TOP
440291008
€ 38.50
10
920551050
ref: 10
RING-O,FORK TOP CAP
920551050
€ 4.00
11
440394004
ref: 11
HEAD,STEERING STEM
440394004
€ 88.50
12
920011398
ref: 12
BOLT,FLANGED 8X55
920011398
€ 2.50
13
311G0800
ref: 13
NUT-HEX,8MM
€ 2.50
14
440371048
ref: 14
STEM,STEERING
€ 246.00
15
920151124
ref: 15
NUT,LOCK,8MM
920151124
€ 3.50
16
410B0800
ref: 16
WASHER-PLAIN-SMALL,8M
410B0800
€ 0.50
17
920151124
ref: 17
NUT,LOCK,8MM
920151124
€ 3.50
18
44045002
ref: 18
GASKET,FORK DRAIN PLU (NAS)
44045002
€ 3.00
19
440281003
ref: 19
GUIDE-FORK SPRING
440281003
€ 7.50
20
440261042
ref: 20
SPRING,FORK INNER
€ 28.50
21
440131028
ref: 21
TUBE,FORK INNER
€ 140.00
22
440221032
ref: 22
CYLINDER ASSY,FORK IN
€ 51.00
23
920721008
ref: 23
BAND,BOOTS
€ 7.50
24
220B0420
ref: 24
SCREW-PAN-CROS
€ 2.00
25
490061027
ref: 25
LIME GREEN
BOOT,FORK,L.GREEN
€ 42.00
26
920721026
ref: 26
CLAMP,BOOT,L.H
920721026
€ 8.50
27
220B0620
ref: 27
SCREW-PAN HEAD,6X20
220B0620
€ 2.50
28
320991013
ref: 28
CASE,DUST SHIELD
€ 3.50
29
920931035
ref: 29
DUST SHIELD,FORK OUTR
920931035
€ 10.50
30
920331047
ref: 30
SNAP RING,FORK OUTER
920331047
€ 4.00
31
920491042
ref: 31
OIL SEAL,FORK OUTE TU
920491042
€ 13.50
32
920011309
ref: 32
BOLT,FORK CYLINDER
920011309
€ 4.50
33
110091127
ref: 33
GASKET,FORK CYLID BOL (NAS)
110091127
€ 3.00
34
440051037
ref: 34
TUBE,L.H,FORK OUTER
€ 182.00
35
440061037
ref: 35
TUBE,R.H,FORK OUTER
€ 166.50
36
220B0408
ref: 36
SCREW-PAN-CROS
220B0408
€ 0.50
37
46012008
ref: 37
UPPER
HOLDER-HANDLE,UPP
46012008
€ 23.00
38
46012010
ref: 38
LOWER
HOLDER-HANDLE,LWR
46012010
€ 20.00
39
92075275
ref: 39
DAMPER,HANDLE
92075275
€ 6.00
40
92022196
ref: 40
WASHER,10.5X30X2
92022196
€ 2.00
41
92019021
ref: 41
NUT,LOCK,10M/M
92019021
€ 2.00
42
920011405
ref: 42
BOLT,8X38
920011405
€ 10.00
43
920721027
ref: 43
BAND,CABLE
920721027
€ 12.50
44
920721025
ref: 44
CLAMP,BOOT,R.H
920721025
€ 6.00
