MUFFLER
KX250-H2 1991 EUROPE UK AL AS

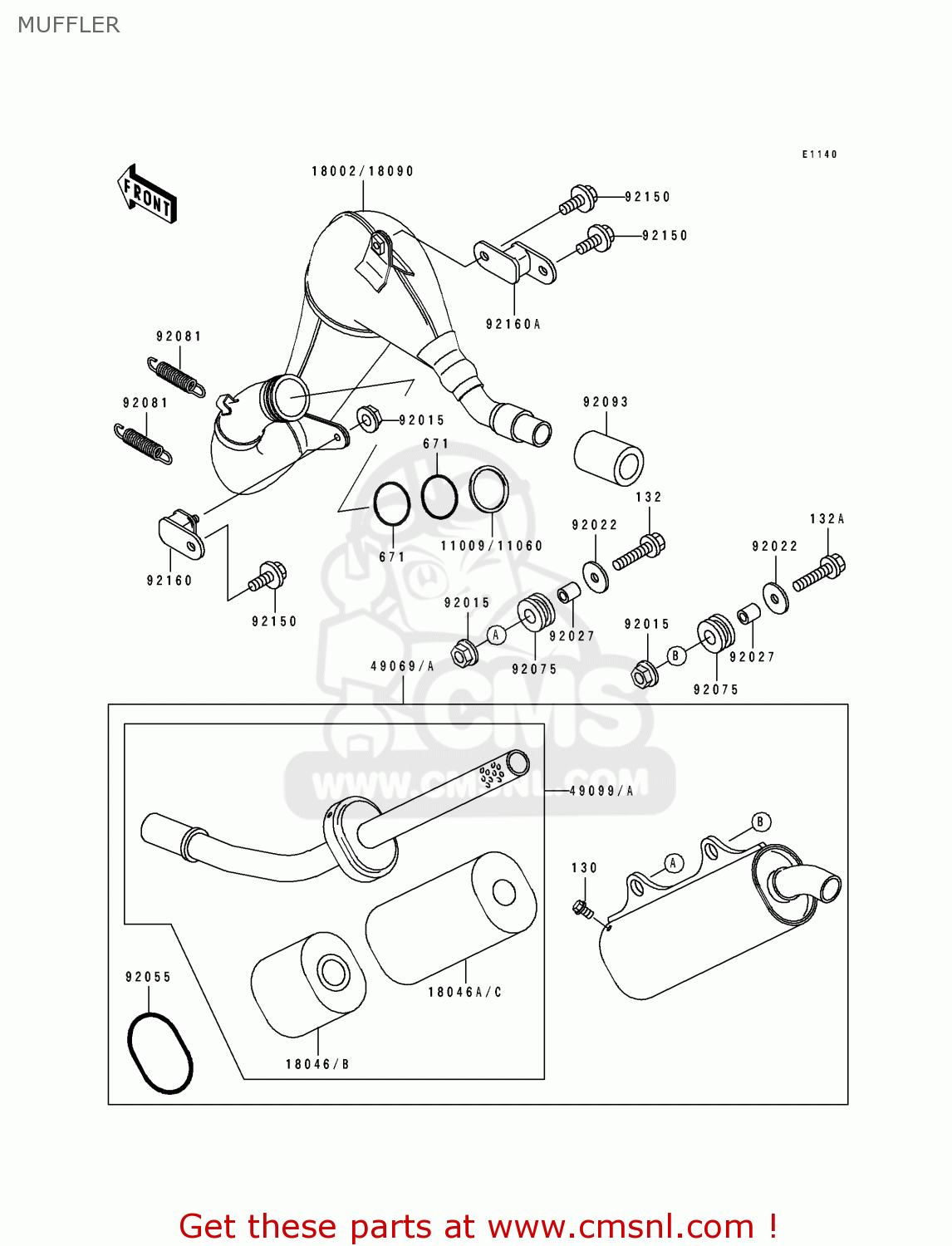

Muffler diagram KX250-H2 1991 EUROPE UK AL AS
MUFFLER KX250-H2 1991 EUROPE UK AL AS
×
prices are in EUR
ref
part #
description
quantity
130
130G0508
ref: 130
BOLT-FLANGED
€ 0.50
132
132G0630
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
132A
132G0640
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
671
671E2550
ref: 671
O RING,50MM
€ 10.50
11060
110091949
ref: 11060
GASKET,EXHAUST PIPE (NAS)
€ 7.50
18046B
180461121
ref: 18046B
WOOL,BAFFLE PIPE,FR
€ 40.00
18046C
180461122
ref: 18046C
WOOL,BAFFLE PIPE,RR
€ 78.00
18090
180901068
ref: 18090
BODY-COMP-MUFFLER
€ 287.00
49069A
490691134
ref: 49069A
MUFFLER-ASSY
€ 184.00
49099A
490991295
ref: 49099A
BAFFLE-PIPE MUFFLER
€ 87.00
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92022
92022237
ref: 92022
WASHER-PLAIN
€ 2.50
92027
920271210
ref: 92027
COLLAR,6.8X10X11.5L
€ 7.00
92055
920551461
ref: 92055
RING-O,BAFFLE PIPE
€ 4.50
92075
920751857
ref: 92075
DAMPER,MUFFLER FITTIN
€ 3.50
92081
920811526
ref: 92081
SPRING,MUFFLER CONECT
€ 7.50
92093
920931289
ref: 92093
SEAL
€ 23.00
92150
921501340
ref: 92150
BOLT,6X14
€ 3.00
92160
921601176
ref: 92160
DAMPER,MUFFLER,FR
€ 19.00
92160A
921601201
ref: 92160A
DAMPER,MUFFLER,RR
€ 19.00
