CLUTCH
KX250-H2 1991 EUROPE UK AL AS

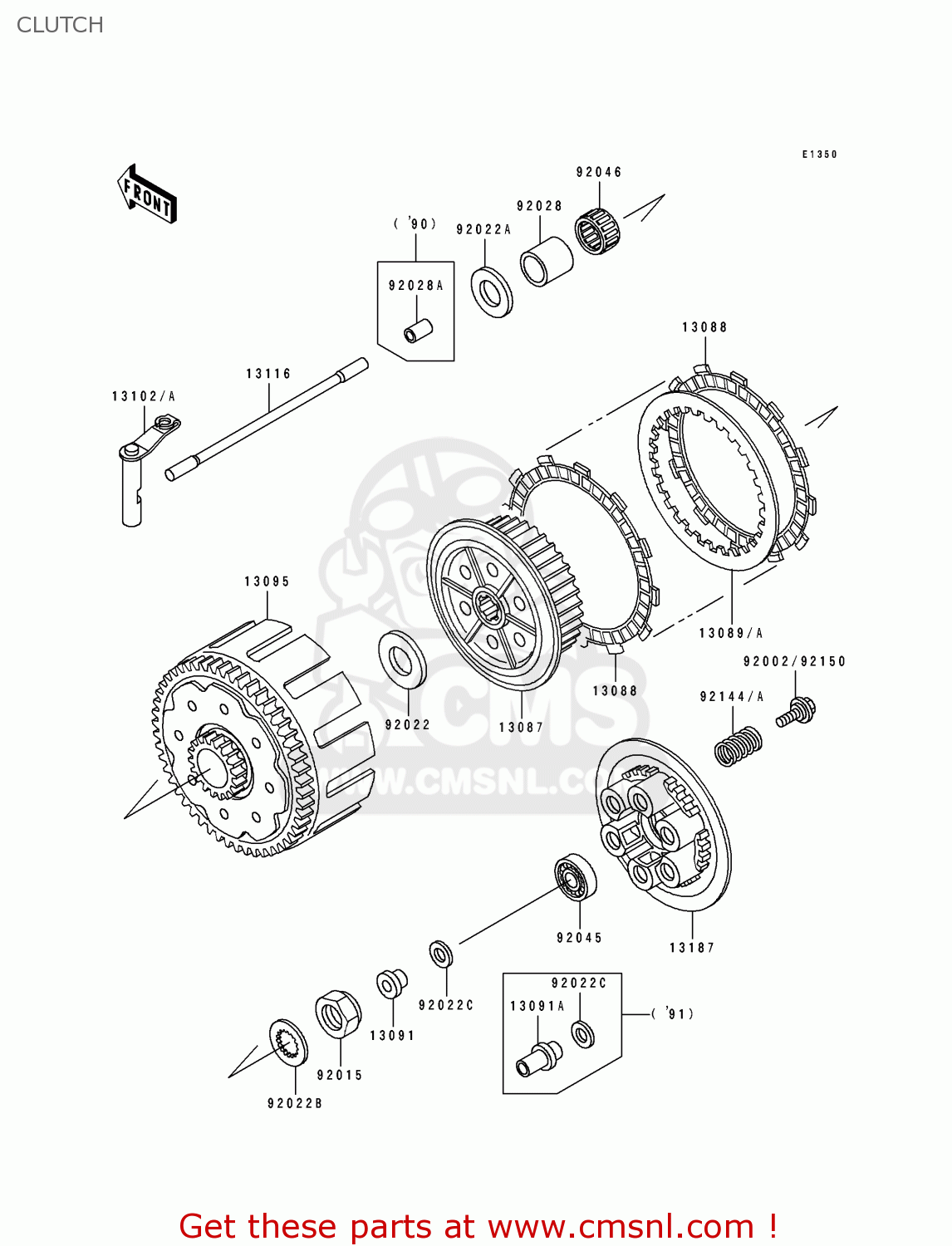

Clutch diagram KX250-H2 1991 EUROPE UK AL AS
CLUTCH KX250-H2 1991 EUROPE UK AL AS
×
prices are in EUR
ref
part #
description
quantity
13087
130871098
ref: 13087
HUB-CLUTCH
€ 111.00
13088
130881069
ref: 13088
PLATE-FRICTION (NAS)
€ 15.50
13089A
130891095
ref: 13089A
PLATE-CLUTCH (NAS)
€ 6.50
13091A
130911707
ref: 13091A
HOLDER
€ 30.50
13095
130951206
ref: 13095
HOUSING-COMP-CLUTCH
€ 321.50
13102A
131021110
ref: 13102A
RELEASE-COMP-CLUTCH
€ 41.00
13116
131161124
ref: 13116
ROD-PUSH,L=205
€ 20.00
13187
131871060
ref: 13187
PLATE-CLUTCH OPERATIN (NAS)
€ 63.00
92015
920151725
ref: 92015
NUT
€ 13.00
92022
920221739
ref: 92022
WASHER,22.5X46X2.6
€ 7.50
92022A
920221836
ref: 92022A
WASHER,22.3X38X2.0
€ 3.00
92022B
920221942
ref: 92022B
WASHER
€ 5.50
92022C
92022269
ref: 92022C
WASHER,PLAIN
€ 1.00
92028
920281551
ref: 92028
BUSHING
€ 22.00
92045
920451235
ref: 92045
BEARING-BALL,6001C3ML
€ 15.50
92046
920461193
ref: 92046
BEARING-NEEDLE
€ 29.50
92144A
921441559
ref: 92144A
SPRING,CLUTCH
€ 6.00
92150
921501489
ref: 92150
BOLT,CLUTCH
€ 4.00
