CYLINDER HEAD/CYLINDER
KX250-H2 1991 EUROPE UK AL AS

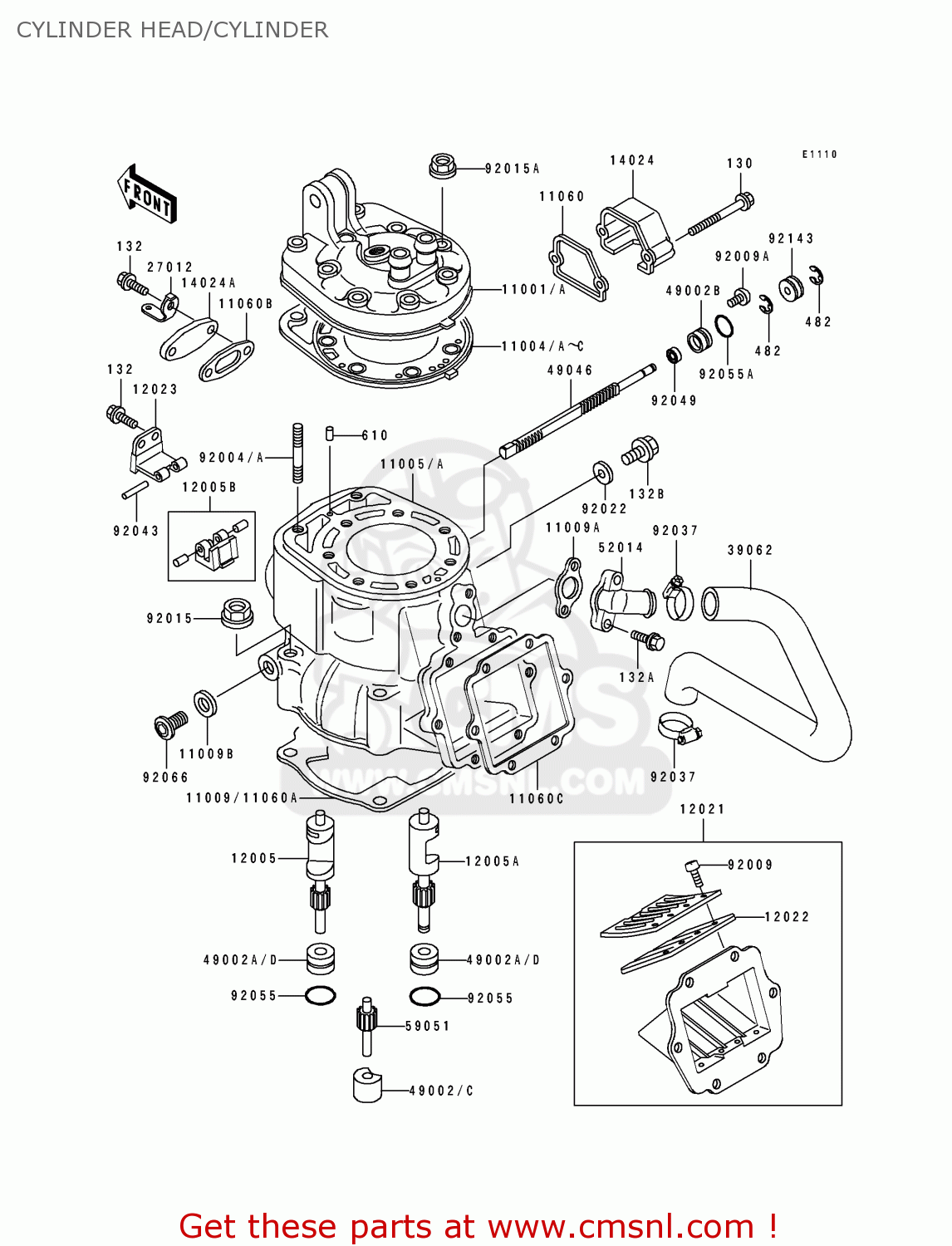

Cylinder head/cylinder diagram KX250-H2 1991 EUROPE UK AL AS
CYLINDER HEAD/CYLINDER KX250-H2 1991 EUROPE UK AL AS
×
prices are in EUR
ref
part #
description
quantity
11001
110011315
ref: 11001
EUUK
HEAD-CYLINDER
€ 195.00
11001A
110011338
ref: 11001A
ALAS
HEAD-CYLINDER
€ 195.00
11004
110041215
ref: 11004
EUUK
GASKET-HEAD,T=0.46 (NAS)
€ 18.00
11004A
110041215
ref: 11004A
ALAS
GASKET-HEAD,T=0.46 (NAS)
€ 18.00
11004B
110041217
ref: 11004B
ALAS
GASKET-HEAD, T=0,26 (NAS)
€ 18.00
11004C
110041217
ref: 11004C
EUUK
GASKET-HEAD, T=0,26 (NAS)
€ 18.00
11005A
110051643
ref: 11005A
CYLINDER-ENGINE
€ 850.00
11009A
110091935
ref: 11009A
GASKET,ELBOW (NAS)
€ 3.00
11009B
92065073
ref: 11009B
GASKET,12.5X18X1,DRAI (NAS)
€ 2.50
11060
110091946
ref: 11060
GASKET,GOVERNOR COVER (NAS)
€ 3.50
11060A
110091947
ref: 11060A
GASKET,CYLINDER BASE (NAS)
€ 8.00
11060B
110091948
ref: 11060B
GASKET,VALVE COVER (NAS)
€ 4.00
11060C
110091950
ref: 11060C
GASKET,REED VALVE (NAS)
€ 7.50
12005
120051140
ref: 12005
VALVE-EXHAUST,LH
€ 68.50
12005A
120051141
ref: 12005A
VALVE-EXHAUST,RH
€ 68.50
12005B
120051142
ref: 12005B
VALVE-EXHAUST,CENTER
€ 60.50
12021
120211082
ref: 12021
VALVE-ASSY-REED
€ 159.00
12022
120221066
ref: 12022
VALVE-REED
€ 43.50
12023
120231055
ref: 12023
HOLDER-VALVE
€ 58.00
14024
140241585
ref: 14024
COVER,GOVERNOR
€ 6.00
14024A
140241588
ref: 14024A
COVER,CENTER VALVE
€ 7.50
27012
270121423
ref: 27012
HOOK
€ 3.50
39062
390621365
ref: 39062
HOSE-COOLING,PUMP-CYL
€ 20.50
49002B
490021087
ref: 49002B
GUIDE-VALVE
€ 11.50
49002C
490021110
ref: 49002C
GUIDE-VALVE,IDLE GEAR
€ 9.50
49002D
490021111
ref: 49002D
GUIDE-VALVE
€ 10.50
49046
490461063
ref: 49046
ROD-GOVERNOR
€ 48.50
52014
520141069
ref: 52014
ELBOW
€ 25.00
59051
590511194
ref: 59051
GEAR-SPUR,IDLE
€ 33.00
130
130G0535
ref: 130
BOLT-FLANGED
€ 2.50
132
132G0616
ref: 132
BOLT-FLANGED-SMALL
€ 1.00
132A
132G0625
ref: 132A
BOLT-FLANGED-SMALL
€ 3.00
132B
132G0810
ref: 132B
BOLT-FLANGED-SMALL
€ 2.50
482
482J4000
ref: 482
CIRCLIP-TYPE-E,4MM
€ 0.50
610
610A0408
ref: 610
ROLLER,4X8
€ 2.50
92004A
920041201
ref: 92004A
STUD
€ 4.00
92009
920091371
ref: 92009
SCREW,3X6
€ 2.50
92009A
920091502
ref: 92009A
SCREW
€ 2.50
92015
92015077
ref: 92015
NUT, 10MM
€ 3.00
92015A
920151143
ref: 92015A
NUT,8MM
€ 0.50
92022
920221488
ref: 92022
WASHER,8.2X14X1
€ 3.00
92037
920371589
ref: 92037
CLAMP,COOLING HOSE
€ 13.00
92043
920431373
ref: 92043
PIN,4X23.8
€ 2.50
92049
920491206
ref: 92049
SEAL-OIL,RSO-5.5 11 4
€ 7.50
92055
92055022
ref: 92055
'O' RING
€ 4.00
92055A
920551387
ref: 92055A
RING-O,ID=11.5
€ 2.50
92066
920661222
ref: 92066
PLUG,12X10
€ 8.00
92143
921431056
ref: 92143
COLLAR
€ 6.50
