CRANKSHAFT/PISTON

KX250-H2 1991 EUROPE UK AL AS

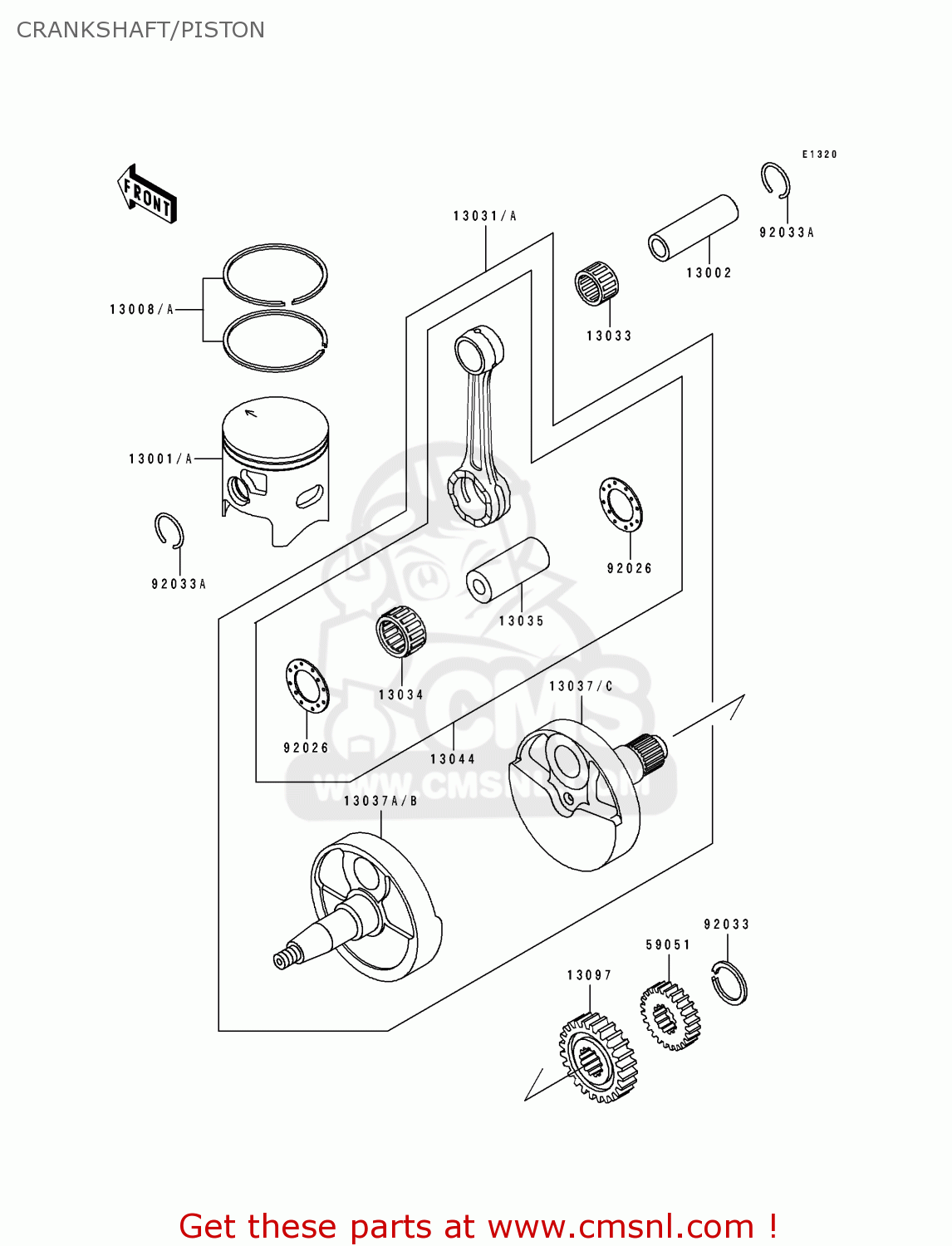

Crankshaft/piston diagram KX250-H2 1991 EUROPE UK AL AS

prices are in EUR

ref

part #

description

quantity

13001

130011340
ref: 13001

PISTON-ENGINE

€ 129.00

13002

130021068
ref: 13002

PIN-PISTON

€ 19.00

13008A

130081135
ref: 13008A

RING-SET-PISTON

€ 44.00

13031A

130311315
ref: 13031A

CRANKSHAFT-COMP

€ 522.00

13033

130331010
ref: 13033

BEARING-NEEDLE,KBK18X

€ 22.50

13034

130341076
ref: 13034

BEARING-BIG END,SKTZ2

€ 46.50

13035

13035034
ref: 13035

PIN-CRANK

€ 54.50

13037B

130371409
ref: 13037B

CRANKSHAFT,LH

€ 250.00

13037C

130371410
ref: 13037C

CRANKSHAFT,RH

€ 250.00

13044

130445056
ref: 13044

SET-CONNECTING ROD

€ 134.50

13097

130971208
ref: 13097

GEAR-PRIMARY SPUR,20T

€ 46.00

59051

590511193
ref: 59051

GEAR-SPUR,PUMP,18T

€ 20.00

92026

920261241
ref: 92026

SPACER

€ 4.00

92033

92033025
ref: 92033

CIRCLIP,25MM

€ 3.00

92033A

920331267
ref: 92033A

RING-SNAP,PISTON PIN

€ 3.00
