FRAME FITTING
KX250-H2 1991 EUROPE UK AL AS

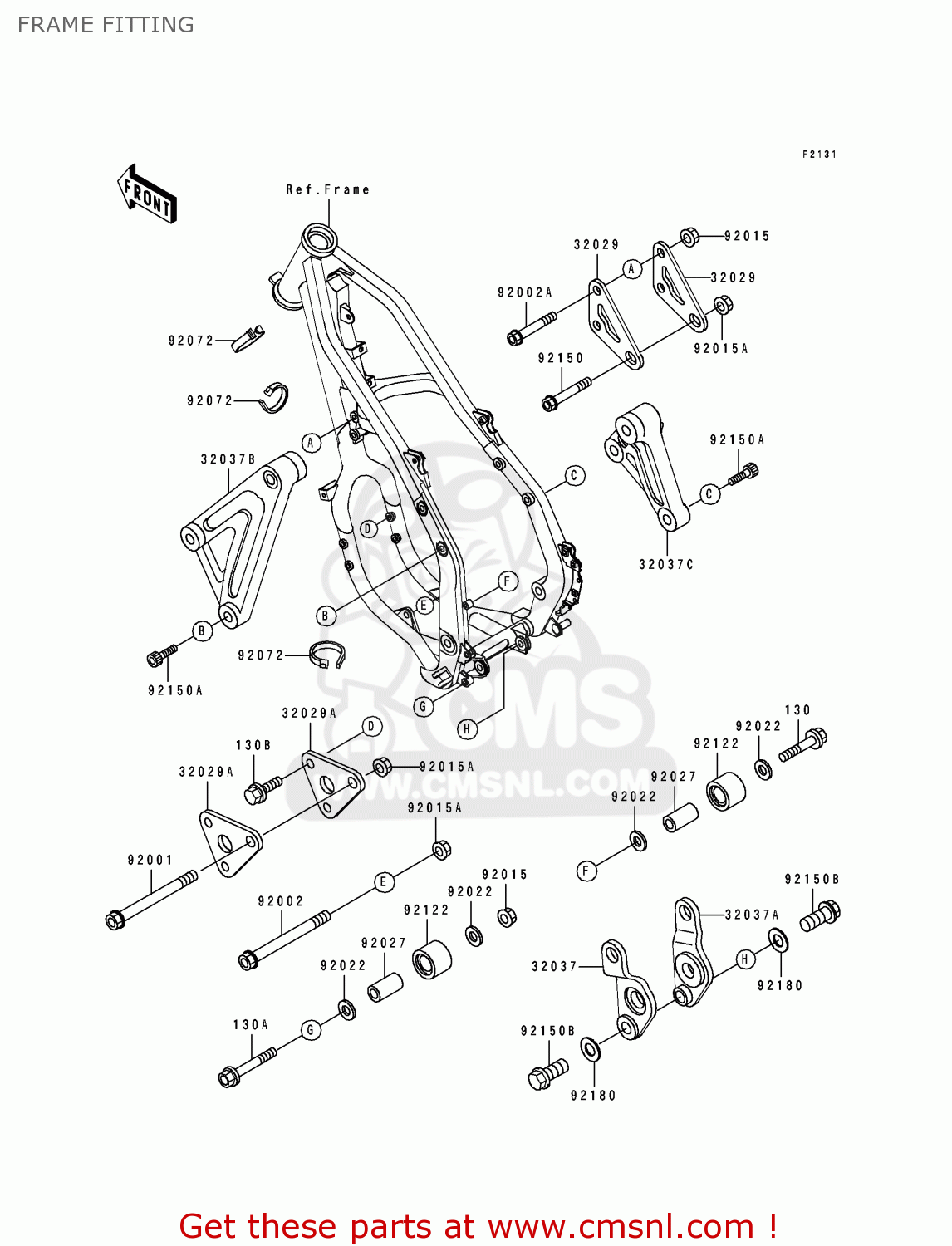

Frame fitting diagram KX250-H2 1991 EUROPE UK AL AS
FRAME FITTING KX250-H2 1991 EUROPE UK AL AS
×
prices are in EUR
ref
part #
description
quantity
130
130G0840
ref: 130
BOLT-FLANGED,8X40
€ 1.00
130A
130G0855
ref: 130A
BOLT-FLANGED,8X55
€ 1.50
130B
130P0825
ref: 130B
BOLT-FLANGED
€ 1.00
32029
320291714
ref: 32029
BRACKET-ENGINE
€ 14.00
32029A
320291720
ref: 32029A
BRACKET-ENGINE
€ 8.50
32037
320371522
ref: 32037
BRACKET-SHOCKABSORBER
€ 30.00
32037A
320371523
ref: 32037A
BRACKET-SHOCKABSORBER
€ 30.00
32037B
320371524
ref: 32037B
BRACKET-SHOCKABSORBER
€ 56.00
32037C
320371525
ref: 32037C
BRACKET-SHOCKABSORBER
€ 55.00
92001
920011701
ref: 92001
BOLT,FLANGED,10X92
€ 6.00
92002
920021491
ref: 92002
BOLT,FLANGED,10X105
€ 8.00
92002A
920021850
ref: 92002A
BOLT,FLANGED,8X47
€ 3.50
92015
920151143
ref: 92015
NUT,8MM
€ 0.50
92015A
920151502
ref: 92015A
NUT,FLANGED,10MM
€ 7.00
92022
920221629
ref: 92022
WASHER,8.5X22X1.5
€ 4.00
92027
920271670
ref: 92027
COLLAR,CHAIN ROLLER
€ 4.50
92072
92072031
ref: 92072
BAND,MIDDLE
€ 3.00
92122
921221153
ref: 92122
ROLLER,CHAIN GUIDE
€ 7.00
92150
921501125
ref: 92150
BOLT
€ 4.50
92150A
921501347
ref: 92150A
BOLT,SOCKET,10X23
€ 3.00
92150B
921501359
ref: 92150B
BOLT,FLANGED,12X30
€ 5.00
92180
921801060
ref: 92180
SHIM,12.5X24X0.5
€ 2.50
