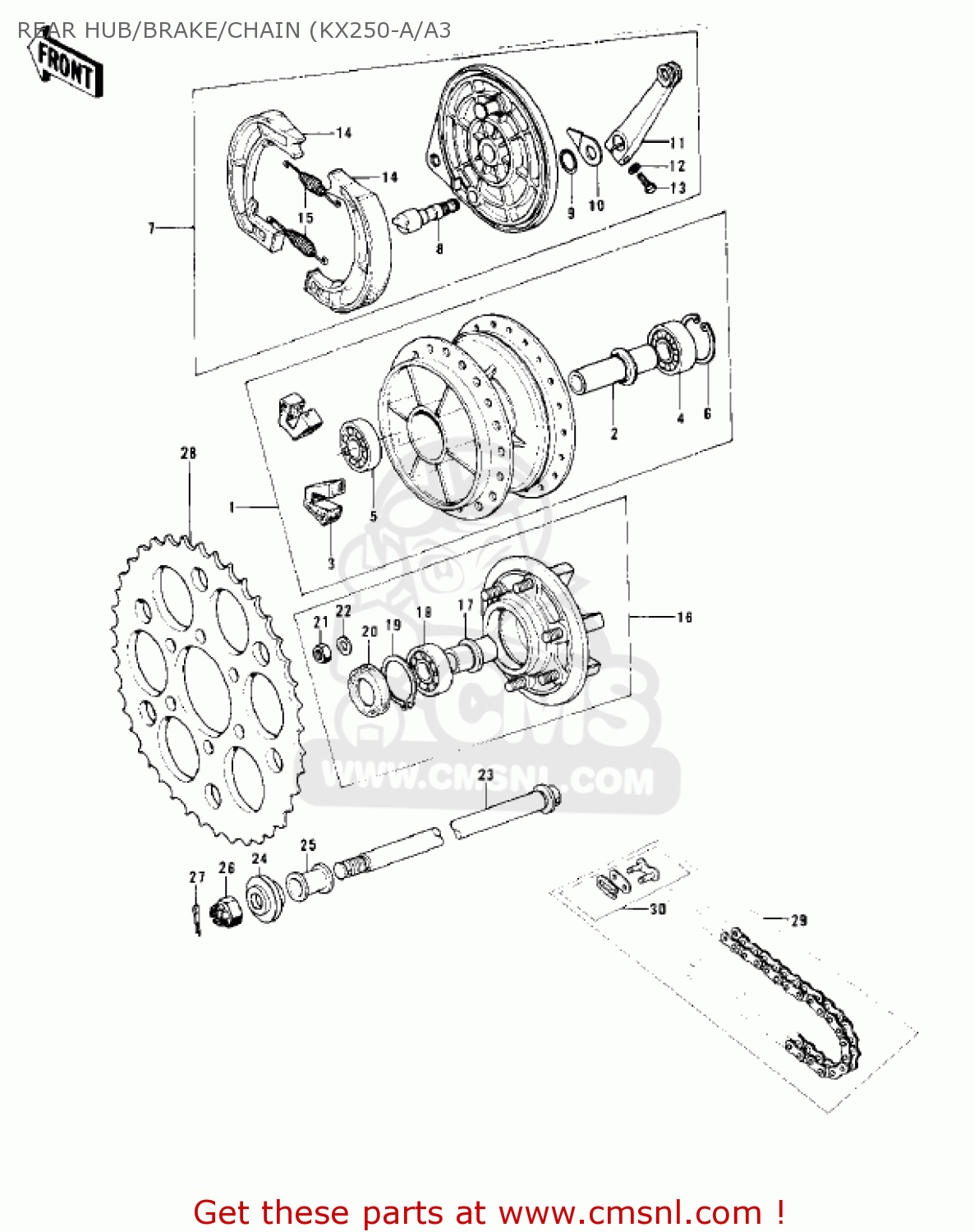

REAR HUB/BRAKE/CHAIN (KX250-A/A3

ref

part #

description

quantity

1

4200504521
ref: 1
FLAT BLOCK

DRUM ASSY,RR BRK,BLK

€ 227.00

2

42010028
ref: 2

SPACER,RR BRAKE DRUM

€ 3.50

3

42014024
ref: 3

DAMPER,RR BRAKE DRUM

€ 9.00

4

601B6303U
ref: 4

BEARING-BALL

€ 26.00

5

601B6303
ref: 5

BEARING-BALL,#6303C3

€ 24.00

6

920331042
ref: 6

CIRCLIP,47M/M

€ 4.00

7

4200605921
ref: 7
FLAT BLOCK

PANEL ASSY,RR BRK,BLK

€ 198.50

8

42026016
ref: 8

CAM SHAFT,REAR BRAKE

€ 7.00

9

41051001
ref: 9

DUST SHIELD-BRAKE CAM

€ 2.50

10

41085017
ref: 10

INDICATOR,BRAKE SHOE

€ 7.50

11

42029038
ref: 11

LEVER,RR BRAKE PANEL

€ 18.00

12

112G0625
ref: 12

BOLT-UPSET,6X25

€ 4.00

13

410B0600
ref: 13

WASHER-PLAIN-SMALL,6M

€ 0.50

14

42019011
ref: 14

SHOE,BRAKE (MCA)

€ 18.50

15

42020004
ref: 15

SPRING-BRAKE SHOE

€ 5.50

16

42008027
ref: 16

COUPLING ASSY,RR BRK

€ 105.00

17

42036023
ref: 17

SLEEVE,COUPLING

€ 27.00

18

601B6205
ref: 18

BEARING-BALL,#6205C3

€ 14.00

19

920331044
ref: 19

CIRCLIP 62 M/M

€ 7.50

20

92052006
ref: 20

OIL SEAL WTC35527

€ 6.50

21

92019018
ref: 21

NUT,8MM

€ 5.50

22

410B0600
ref: 22

WASHER-PLAIN-SMALL,6M

€ 0.50

23

42031051
ref: 23

AXLE,REAR

€ 49.00

24

42032055
ref: 24

COLLAR,REAR AXLE

€ 10.00

25

42032056
ref: 25

COLLAR,REAR AXLE

€ 4.50

26

92015055
ref: 26

NUT,16MM

€ 8.00

27

550D4035
ref: 27

PIN-COTTER,4.0X35

€ 1.00

28

42041154
ref: 28
STD

REAR SPROCKET 48T

€ 55.00

28

42041155
ref: 28
OPT

REAR SPROCKET 46T

€ 83.50

28

42041156
ref: 28
OPT

REAR SPROCKET 50T

€ 83.50

29

92057097
ref: 29
D1D520TM

CHAIN ASY,DRIVE,106L

€ 61.50

30

92058020
ref: 30

JOINT,DRIVE CHAIN

€ 6.00
