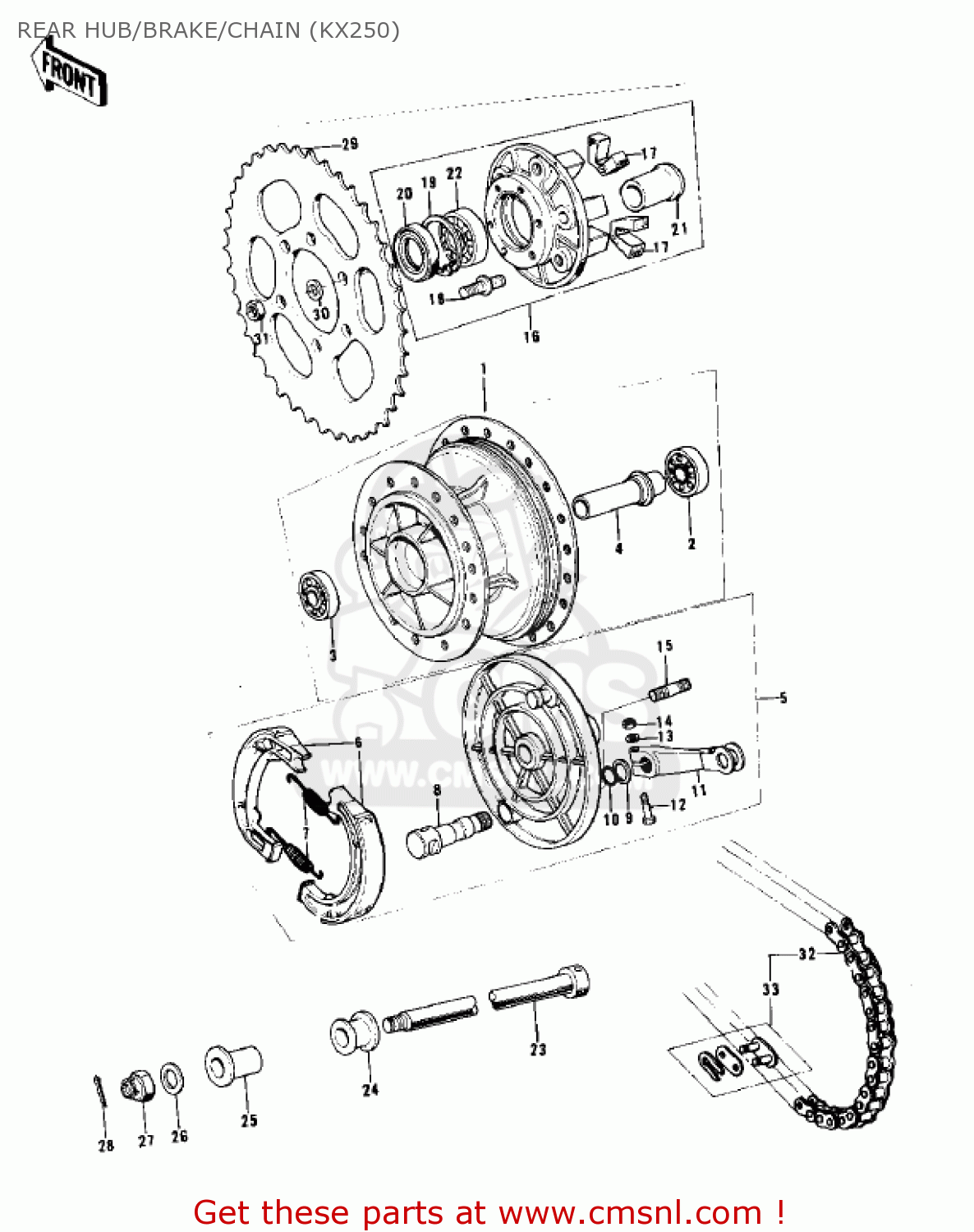

REAR HUB/BRAKE/CHAIN (KX250)

ref

part #

description

quantity

1

42005043
ref: 1

DRUM ASSY,REAR BRAKE

€ 229.00

2

92045027
ref: 2

BEARING,BALL,#6202

€ 11.50

3

92045028
ref: 3

BEARING,BALL,#6302

€ 8.00

4

42010024
ref: 4

COLLAR,REAR HUB BRNG

€ 14.00

5

42006051
ref: 5

PANEL ASSY,REAR BRAKE

€ 267.50

6

42019011
ref: 6

SHOE,BRAKE (MCA)

€ 18.50

7

42020004
ref: 7

SPRING-BRAKE SHOE

€ 5.50

8

42026013
ref: 8

CAM SHAFT,REAR BRAKE

€ 29.50

9

92022258
ref: 9

WASHER

€ 4.50

10

670B2015
ref: 10

O RING,15MM

€ 1.00

11

42029037
ref: 11

LEVER,REAR BRAKE CAM

€ 27.50

12

112G0640
ref: 12

BOLT-UPSET,6X40

€ 2.50

13

410B0600
ref: 13

WASHER-PLAIN-SMALL,6M

€ 0.50

14

311B0600
ref: 14

NUT,6MM

€ 0.50

15

92006004
ref: 15

STUD,10X18

€ 2.00

16

42008025
ref: 16

COUPLING ASSY,RR BRK

€ 153.00

17

42014022
ref: 17

SHOCK DAMPER,REAR HUB

€ 7.50

18

92006005
ref: 18

STUD,8MM,10MM

€ 4.50

19

920331042
ref: 19

CIRCLIP,47M/M

€ 4.00

20

42027004
ref: 20

DUST SEAL,COUPLING

€ 11.50

21

42036022
ref: 21

SLEEVE,COUPLING

€ 12.50

22

92045032
ref: 22

BEARING,BALL,#6005NS

€ 12.50

23

42031048
ref: 23

AXLE, REAR

€ 38.50

24

42032051
ref: 24
L=22M/M

COLLAR,REAR AXLE R.H

€ 8.00

25

42032054
ref: 25

COLLAR,REAR AXLE

€ 9.50

26

92022260
ref: 26
O.D.=300

WASHER

€ 7.50

27

92103006
ref: 27

NUT,CASTLE,14MM

€ 9.00

28

550D3025
ref: 28

PIN-COTTER,3.0X25

€ 0.50

29

42041133
ref: 29
STD

REAR SPROCKET 48T

€ 83.00

29

42041134
ref: 29
OPTION

REAR SPROCKET 46T

€ 79.00

29

42041135
ref: 29
OPTION

REAR SPROCKET 50T

€ 87.50

30

410B0800
ref: 30

WASHER-PLAIN-SMALL,8M

€ 0.50

31

92019018
ref: 31

NUT,8MM

€ 5.50

32

92057039
ref: 32
D1D520TM

CHAIN ASSY,DRIVE 104L

€ 54.00

33

92058020
ref: 33

JOINT,DRIVE CHAIN

€ 6.00
