FRONT FORK (KX250-A/A3)
KX250-A5 1979

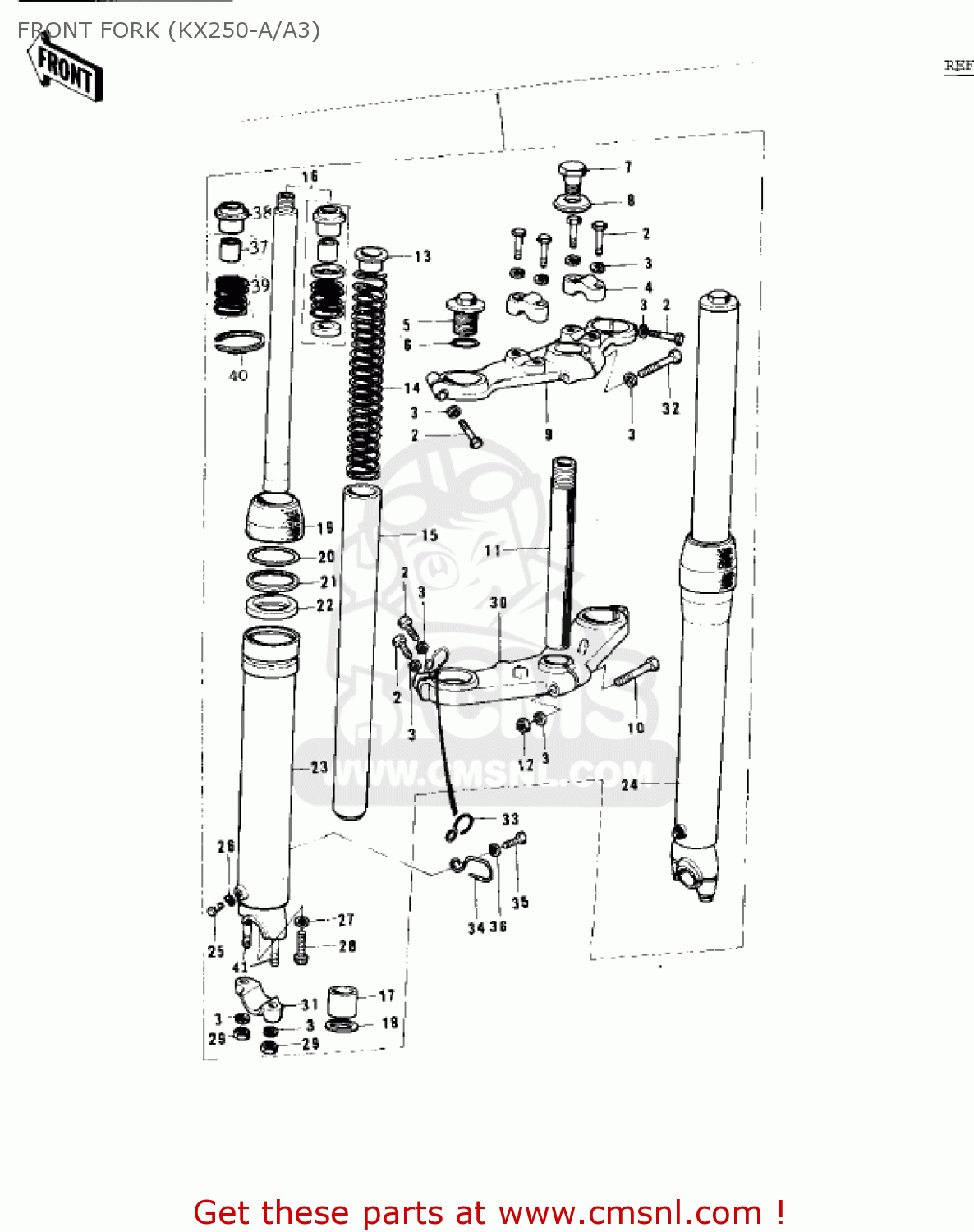

Front fork (kx250-a/a3) diagram KX250-A5 1979
FRONT FORK (KX250-A/A3) KX250-A5 1979
×
prices are in EUR
ref
part #
description
quantity
1
44001130
ref: 1
FRONT FORK ASSY
€ 608.00
1
44001156
ref: 1
FRONT FORK ASSY
€ 608.00
2
44041044
ref: 2
BOLT-STEERING STEM HD
€ 6.50
3
461F0800
ref: 3
WASHER-SPRING,8MM
€ 0.50
4
46012011
ref: 4
HOLDER,HANDLEBAR
€ 12.00
5
44041037
ref: 5
BOLT-FORK FITTING
€ 30.50
6
44046015
ref: 6
RING-O,FORK TOP
€ 4.50
7
44041065
ref: 7
BOLT,FORK TOP
€ 18.50
8
44043055
ref: 8
WASHER,FORK TOP BOLT
€ 3.50
9
44039062
ref: 9
HEAD,STEERING STEM
€ 79.00
10
44041066
ref: 10
BOLT,HEX HEAD
€ 5.50
11
44052008
ref: 11
SHAFT,STEERING STEM
€ 87.00
12
920151124
ref: 12
NUT,LOCK,8MM
€ 3.50
13
44028031
ref: 13
GUIDE FORK SPRING
€ 2.50
13
44028033
ref: 13
USE FOR 44001-156
GUIDE-FORK SPRING
€ 6.00
14
44026052
ref: 14
SPRING,FORK
€ 14.00
14
44026063
ref: 14
USE FOR 44001-156
SPRING,FORK INNER
€ 6.00
15
44013046
ref: 15
TUBE,FORK INNER
€ 119.50
16
44022017
ref: 16
CYLINDER,FORK
€ 61.00
17
44018008
ref: 17
PISTON,FORK
€ 7.50
18
44044018
ref: 18
CIRCLIP,FORK
€ 2.50
19
44010025
ref: 19
DUST SHIELD,FORK
€ 8.50
20
920331100
ref: 20
RING-SNAP,FORK OIL SE
€ 9.50
21
44043044
ref: 21
WASHER,OIL SEAL FIT
€ 8.00
22
920491216
ref: 22
SEAL-OIL,FORK OUTER P
€ 16.00
23
44005054
ref: 23
TUBE,L.H FORK OUTER
€ 176.00
24
44006052
ref: 24
TUBE,R.H FORK OUTER
€ 86.50
25
44041062
ref: 25
SCREW,FORK DRAIN
€ 2.00
26
44045045
ref: 26
GASKET,FORK DRAIN (NAS)
€ 1.00
27
44045057
ref: 27
GASKET (NAS)
€ 3.00
28
44041040
ref: 28
BOLT-FORK CYLINDER
€ 4.50
29
311B0800
ref: 29
NUT,8MM
€ 0.50
30
44038008
ref: 30
STEM STEERING
€ 164.00
31
44063008
ref: 31
HOLDER,FRONT AXLE
€ 18.00
32
44041042
ref: 32
BOLT-STEERING STEM HD
€ 3.00
33
92037126
ref: 33
CLAMP,CABLE
€ 2.00
34
92037127
ref: 34
CLAMP,CABLE
€ 1.50
35
220B0612
ref: 35
SCREW-PAN HEAD,6X12
€ 1.00
36
410B0600
ref: 36
WASHER-PLAIN-SMALL,6M
€ 0.50
37
44028022
ref: 37
USE FOR 44001-156
SPACER-FORK SPRG GIDE
€ 3.00
38
44028034
ref: 38
USE FOR 44001-156
GUIDE,FORK SPRING
€ 6.00
39
44026062
ref: 39
USE FOR 44001-156
SPRING,FORK
€ 18.00
40
44025004
ref: 40
FORK PISTON RING
€ 9.50
41
920041009
ref: 41
STUD, 8X35
€ 4.00
